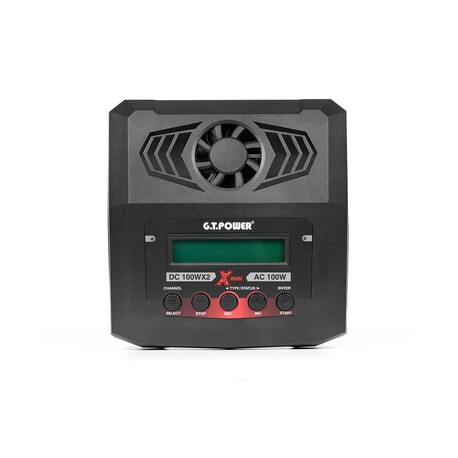

The dual-channel GT POWER X2 mini 2x100W charger was designed with the aim of providing everything needed to charge two batteries simultaneously "under one roof", including the power supply and with simple operation.
X2 mini allows charging of common types of cells (NiCd, NiMH, Li-poly, Li-ion, Li-Fe, Li-HV, Pb), in addition, both channels are equipped with built-in four-channel balancers, which ensure very safe and comfortable charging of lithium batteries.
The charger program is designed for practitioners who purchase the charger to charge the batteries, not to watch nice pictures on the display of a smart phone. When powered from the mains, the X2 mini offers two power allocation modes for channels - either the same power is available for both channels (max. 50 W for both or max. 100 W when using only one channel). Or, first, the first connected battery is charged at maximum power, while the second is charged with only low power; as soon as the first battery is charged, the second will start charging at maximum power. When powered by a 24 V car battery or a 19-26 V mains supply, the X2 mini has a full power of 100 W for both channels.
Overview of basic functions and parameters

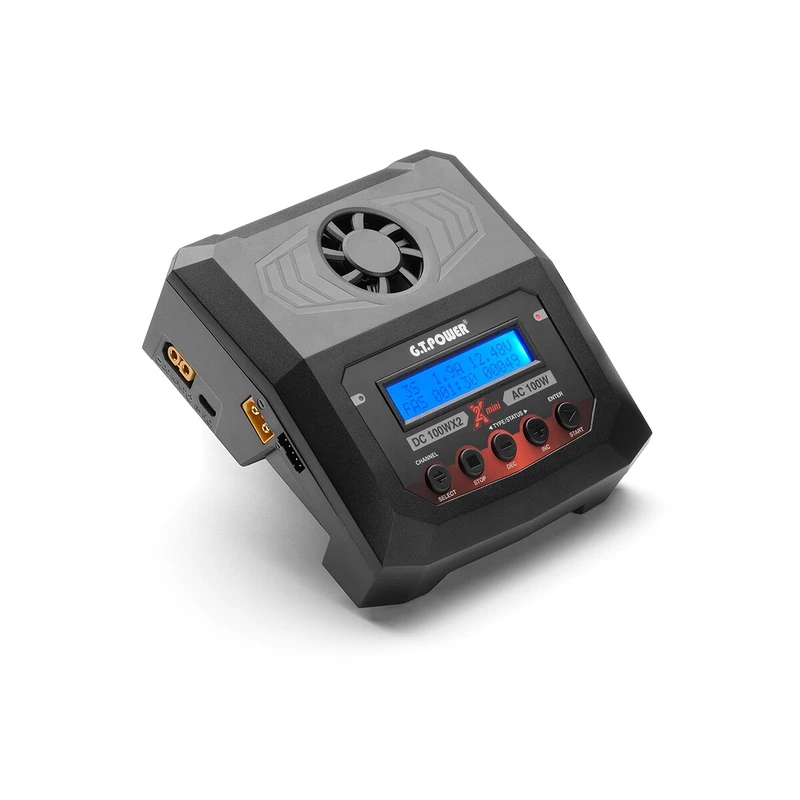

The charger is equipped with XT60 output sockets and universal sockets for JST-XH service connectors in both channels, allowing direct connection of battery power cables and JST-XH service connectors of 2-4S sets - if you use sets with XT60 and JST-XH connectors, you can do without charging cables and adapters.
Note: The charger uses a final voltage of 2.40 V / cell when charging lead-acid batteries - for this reason it is suitable for charging classic lead-acid batteries (car batteries) and gel batteries with a reversible valve. Not suitable for charging gas-tight gel batteries, which must not be charged to more than 2.30 V / cell.

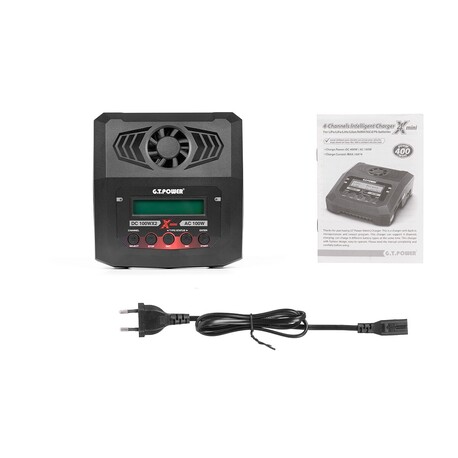

The charger set includes: X2 mini charger, mains cable, instructions.
| Input voltage (car battery - DC) [V] | 19 - 26 |
| Input voltage (mains - AC) [V] | 100 - 240 |
| Charging current [A] | 0.1 - 10 |
| Charging power (mains supply) [W] | 50 |
| Charging power (DC) [W] | 100 |
| Number of channels | 2 |
| NiCd [art.] | 1 - 8 |
| NiMH [art] | 1 - 8 |
| Li-Pol [art.] | 1 - 4 |
| Li-Ion [art] | 1 - 4 |
| Li-Fe [art] | 1 - 4 |
| Li-HV [art] | 1 - 4 |
| Pb [article] | 1 - 7 |
| Balancer | Yes |
| Balancer current [mA] | 500 |
| Length [mm] | 141.5 |
| Width [mm] | 137.5 |
| Height [mm] | 55.5 |
| Weight [g] | 554 |
