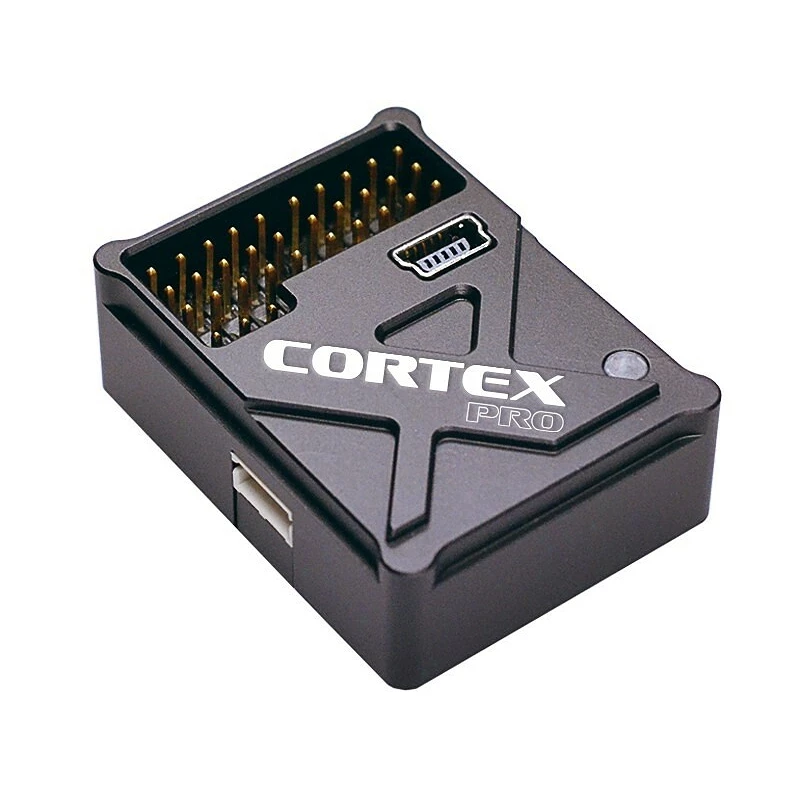

An enhanced version of the very popular gyra for RC aircraft models, Cortex. The "pro" version brings not only a lot of new features but also the latest hardware and software.
CORTEXpro opens the gateway to the world of the latest 3-axis gyroscopes for Rc models of aircraft. Based on the latest 32-bit processor technology, which, along with other enhancements, allows you to set up just using a transmitter, making setup very fast and easy. An enhanced version of CORTEXpro also allows automatic detection of the input signal, connection of two independent receivers and other great features.
Key properties:
- support for various input and output protocols
-the latest 32-bit technology
- up to 24 channels (16 stabilized)
-Support of two independent receivers
-iOS / Android app (getting ready)
-Easy setup via transmitter
-not the need for a computer
Package contents:
-the CORTEXproject
-plate pad
-mini USB cable
- cable tie 150mm
Enhanced setup software http://www.bavariandemon.com/en/support/software/
Dimensions: 40 x 30 x 14 mm
Input voltage: 4 ... 10 V (2S-LiPo, at least 5.5 V for Spectrum satellites)
Vacuum sampling: approx. 70 mA
Operating temperature: -15 ° C ... + 55 ° C
Max. rotation range: 500 ° / s per axis
Adjustable Servo Frequency: Digital (166Hz) / (200Hz) / (333Hz) / Analog (55Hz)
Maximum current carrying capacity: 15 A permanently (when servicing directly to the unit)
Weight: 27g
Connection method RX: PWM, PPM sum (Jeti PPM sum post + Graupner SUM-O),
Jeti EX-bus, Futaba S.BUS1, Graupner HOTT SUM-D (SRXL), Multiplex M-Link (SRXL),
JR X.bus (Mode A + B / SRXL)
Supported pulse width: 950-2050 ms
