Radiolink eight-channel computerized steering wheel RC kit using FHSS 2.4GHz telemetry transmission system for car and boat models. With the R8FG FHSS telemetry receiver included in the kit, you have 8 PWM channels for classic servos, plus a built-in gyro. The RC8X transmitter can also work with the six-channel R6F and R6FG receivers with built-in gyro, the four-channel R4FGM and R4F, or the R8EF and R8FM "aircraft" receivers (primarily intended for the T8FB and T8S transmitters). The range of the RC kit is up to 600 m, so you don't have to worry about launching your boat into larger water. With the R8FG receiver, it enables the transmission of telemetry and the display of the receiver's supply voltage and the signal strength received by the receiver on the transmitter's display; there is also voice output of telemetry.

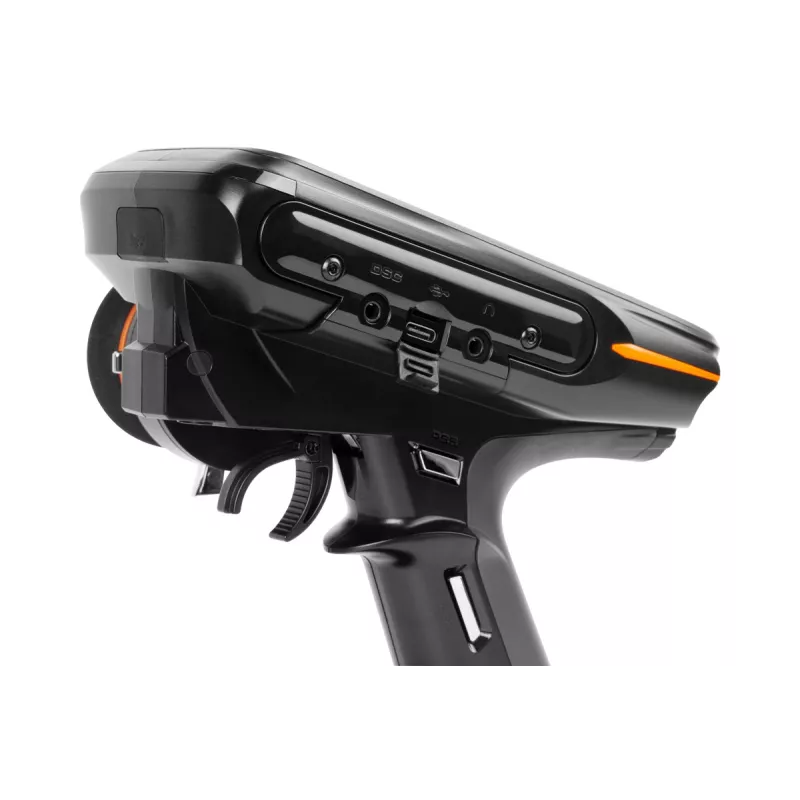

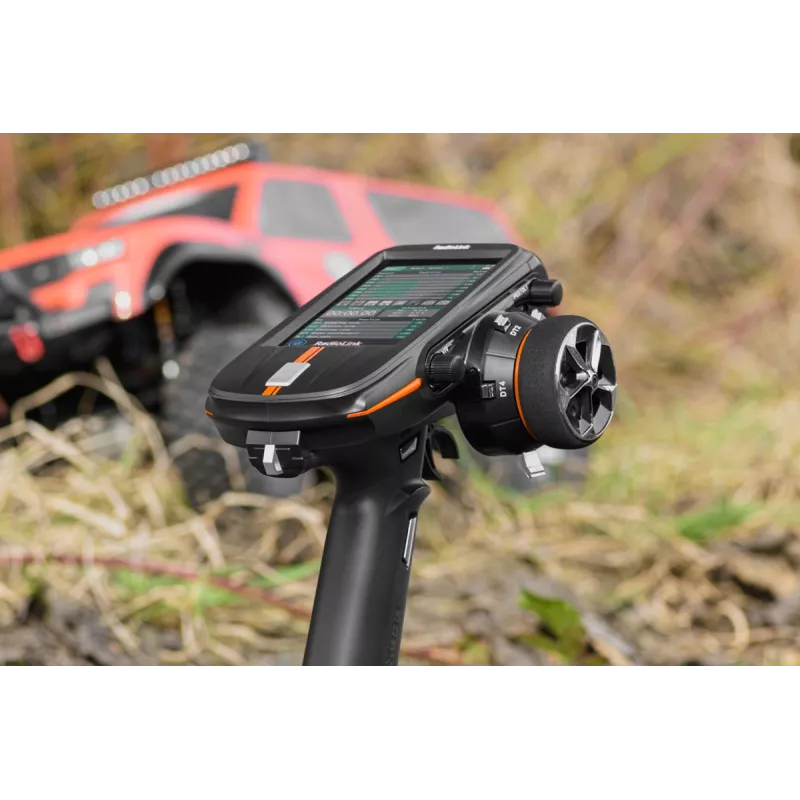

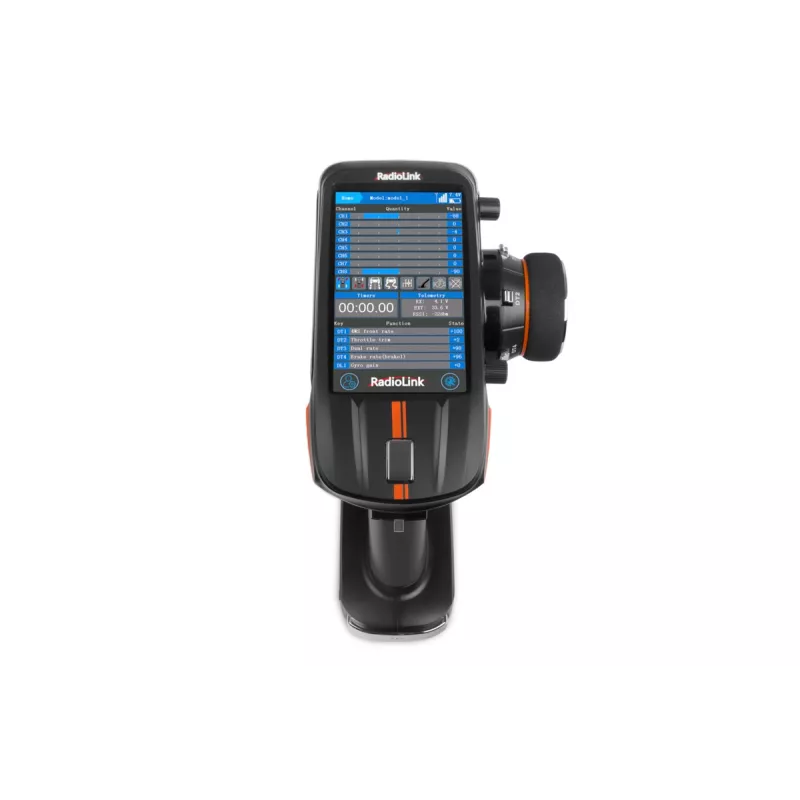

The RC8X transmitter in a classic steering wheel design with a handle that fits well in the hand is equipped with a steering wheel controller, a trigger for throttle control, a rotary knob for the third channel, four digital trims around the steering wheel (with assignable function), five push button switches. Programming and easy orientation in the intuitive menu is ensured by a color touch LCD display. The RC8X has a memory for 200 models and a wide range of advanced programming functions, including 4 freely programmable mixes, so you can easily set up common and special car models (eg steered front and rear wheels for crawlers, tracked vehicles and tanks, twin-shaft ships, etc.).

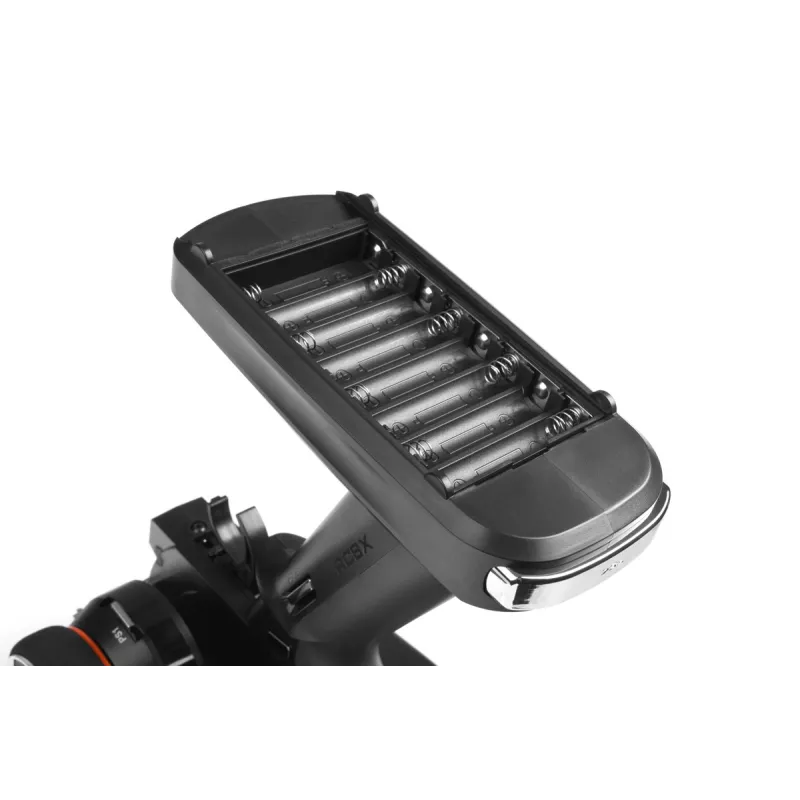

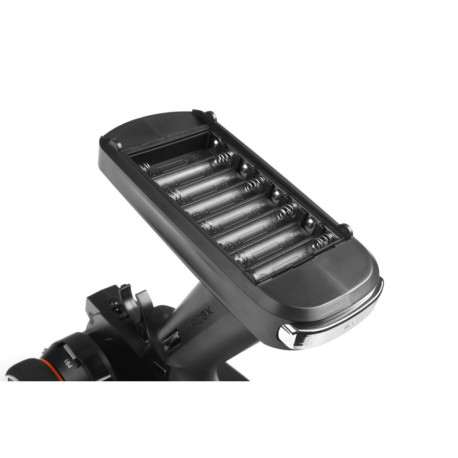

You will need 8 AAA (micro-pencil) alkaline batteries or NiMH batteries stored in a holder in the transmitter to power the transmitter, but 2-4S LiPo kits can also be used for power.
FUNCTION
- FHSS 2.4GHz transmission system for RC cars
- 8 proportional channels (channels 1 and 2 with controllers, channels 3 to 8 with freely assignable controllers or switches)
- Possibility of rebuilding the transmitter for right-handed and left-handed users
- 4.3" color touch LCD display
- Steering wheel control
- Throttle control trigger
- Assignable rotary knob

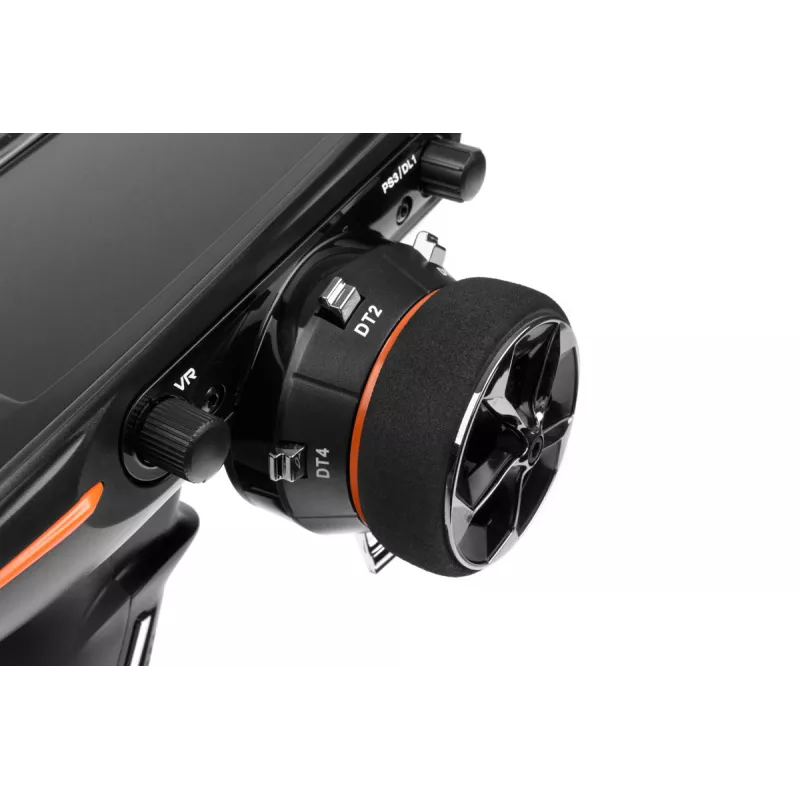

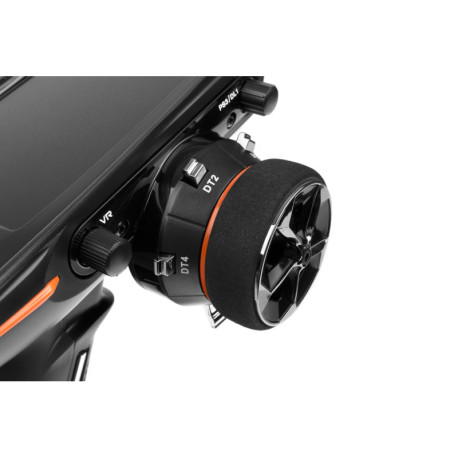

- 4 digital trims with assignable function (steering, throttle, double deflections of steering and brakes, three-position switch, etc.)
- 5 push-button switches (can be assigned to switch on mixes and as channel controls)
- USB-C port for firmware update
- Option to backup/copy models to micro SD card, update firmware using micro SD card
- Sound and vibration signaling of operational and error states
Program functions
- Memory for 200 models
- Setting the size of deviations for all channels
- Servo deviation limit (limiting the maximum range of deviations when using mixes)
- Reversing the direction of deviations for all channels
- Subtrims for all channels
- Steering, throttle and brake response curve settings: Exponential deflection curve, broken curve with straight sections or curve with up to 9 points adjustable independently for left/right steering and forward/reverse throttle
- Speed servos for steering and throttle
- Dual steering deflections
- Servo monitor (for quick control of servo movement, especially in mixed channels)
- ABS
- Safe idle
- Traction control
- Start (protects against wheel spin on non-cohesive surfaces at start)
- Engine shutdown
- Assignment of controls for individual channels
- Fail safe emergency deflections for all channels
- Assignment of trim functions
- Assignment of switch functions
- Mix for steering with 2 servos
- Mix for front/rear brakes with 2 servos
- Gyro control mix
- 4WS mix for independent front and rear axle control for crawlers
- Mix for drive system with 2 speed controllers
- CPS mix for controlling LED lights
- Mix for tanks - for controlling the movement of tracked vehicles
- 8 freely programmable mixes
- Mix for outboard engines (simultaneous control of the direction and tilt of the entire engine up and down)
- Timer with selectable operating mode (stopwatch, timer).
- With telemetry receiver: Display of receiver supply voltage and signal strength on display with adjustable threshold voltage for warning signaling and other telemetry data from connected sensors.
- Telemetry voice output
- CHILD ID: A special function that allows you to control several models at the same time or to switch the control of several models - for example, you drive a tractor with a trailer loaded with an excavator; you drive the tractor to the construction site, park and then switch to the excavator control...
Compatible receivers
- Radiolink R8F (8-channel for RC cars)

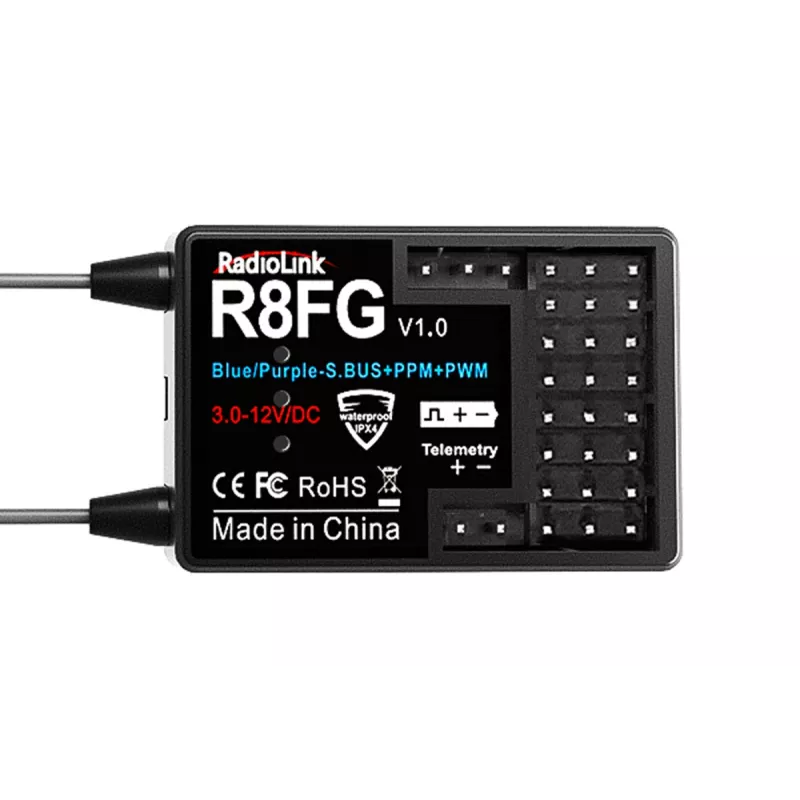

- Radiolink R8FG (8-channel with gyro for RC cars)
- Radiolink R6F (6-channel for RC cars)
- Radiolink R6FG (6-channel with gyro for RC cars)
- Radiolink R8EF (8-channel general purpose)
- Radiolink R8FM (miniature 8-channel S.BUS/PPM for general use)

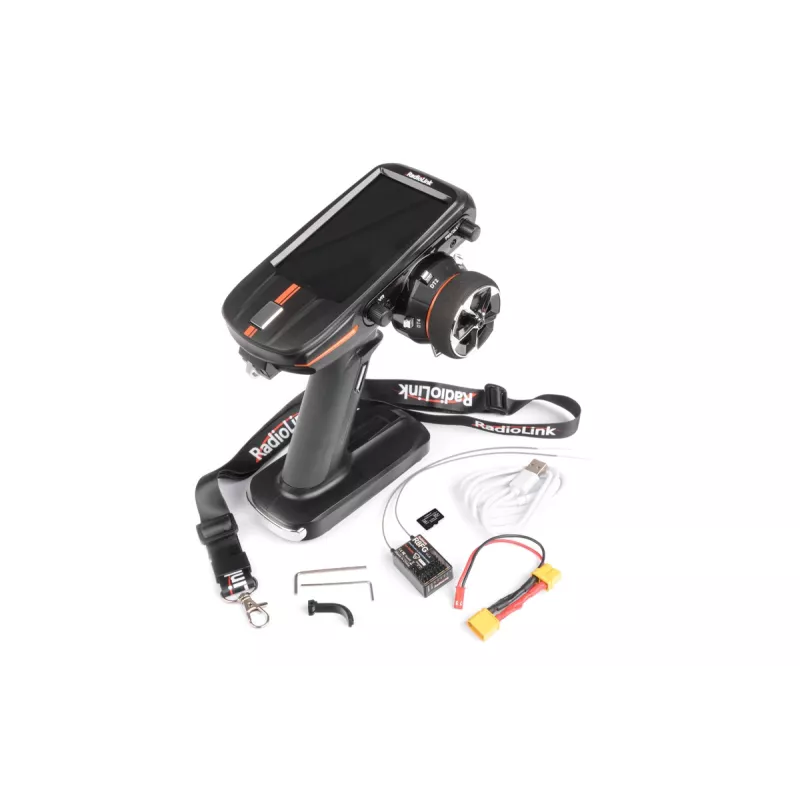

RC KIT INCLUDES
- Radiolink RC8X 2.4GHz transmitter
- R8FG receiver
- Strap
- USB-C cable
- Operating Instructions
