R6FG receiver
1RL0064
RadioLink
Six-channel 2.4GHz FHSS receiver with integrated gyroscope for car models, compatible with Radiolink RC6GS, RC4GS, T8FB, T8S transmitters. Power supply 4.8-10V. Dimensions 35x20x13mm, weight 6g. Reach on the ground up to 400m.
Express delivery
Large selection of carriers
Satisfaction guarantee

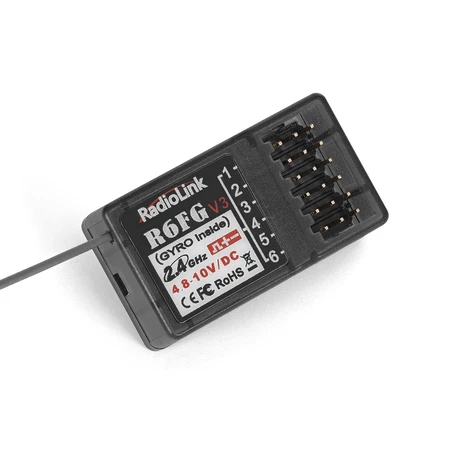

The Radiolink R6FG 2.4GHz is a 6-channel FHSS receiver with built-in gyroscope compatible with the Radiolink RC4GS, RC6GS and T8FB and T8S aircraft transmitters. It can work with servos with a standard power supply as well as with "high voltage" (HV) servos. The receiver is suitable for RC cars, tanks and other land vehicles and RC boats (the range indicated by the manufacturer is up to 400 m on the ground).
The use of FHSS transmission technology brings high resistance to interference and the possibility of setting emergency deviations (fail-safe) on the transmitter in case of failure or strong interference of the transmitter signal.
The receiver has a built-in gyroscope to stabilize the car in a straight line during aggressive acceleration and braking or on uneven terrain, in corners to reduce oversteer and skidding. Using the button on the receiver, you can choose two operating modes - normal with the gyro off and mode with the gyro on. The direction of the gyro response can be changed with a button on the receiver, the gyro gain is set on the transmitter via channel 3 - either directly with the VR knob assigned to channel 3, or via the GYRO program function.
Pairing with the transmitter is done using the pairing button on the receiver, the operational states of the receiver and the gyroscope are indicated by LEDs.
The receiver is equipped with contact strips for standard UNI connectors (=JR/Graupner, Hitec, Futaba).
The receiver set includes: R6FG receiver, instructions.
| Modulation/Encoding | 2.4GHz FHSS |
| Number of channels | 6 |
| Features (on transmitter) | Fail-safe |
| Power supply | 4.8V,6V,7.2V,7.4V |
| Consumption without servos [mA] | 30 |
| Length [mm] | 35 |
| Width [mm] | 20 |
| Height [mm] | 13 |
| Weight [g] | 6 |
