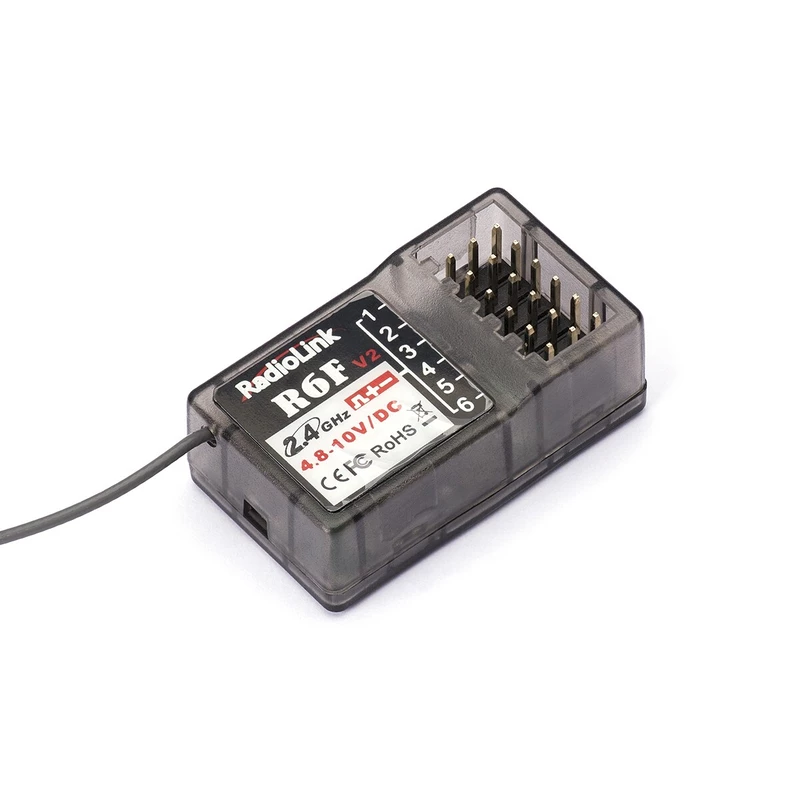

The Radiolink R6F 2.4GHz is a 6-channel FHSS frequency hopping receiver compatible with the Radiolink RC4GS, RC6GS and T8FB and T8S aircraft transmitters. It can work with servos with a standard power supply as well as with "high voltage" (HV) servos. The receiver is suitable for RC cars, tanks and other land vehicles and RC boats (the range indicated by the manufacturer is up to 400 m on the ground).
The use of FHSS transmission technology brings high resistance to interference and the possibility of setting emergency deviations (fail-safe) on the transmitter in case of failure or strong interference of the transmitter signal.
Pairing with the transmitter is done with the help of the pairing button on the receiver, operating states are indicated by an LED diode.
The receiver is equipped with contact strips for standard UNI connectors (=JR/Graupner, Hitec, Futaba).
The receiver set includes: R6F receiver, instructions.
| Modulation/Encoding | 2.4GHz FHSS |
| Number of channels | 6 |
| Features (on transmitter) | Fail-safe |
| Power supply | 4.8V,6V,7.2V,7.4V |
| Consumption without servos [mA] | 30 |
| Length [mm] | 35 |
| Width [mm] | 20 |
| Height [mm] | 13 |
| Weight [g] | 6 |
