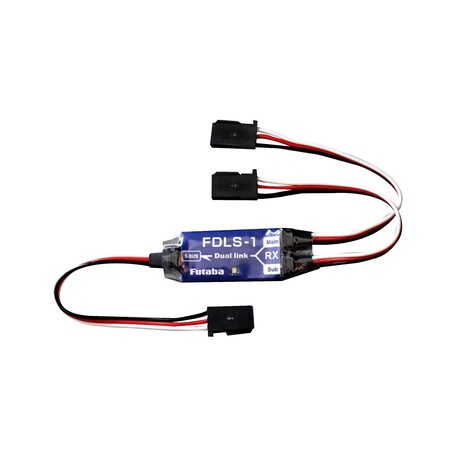

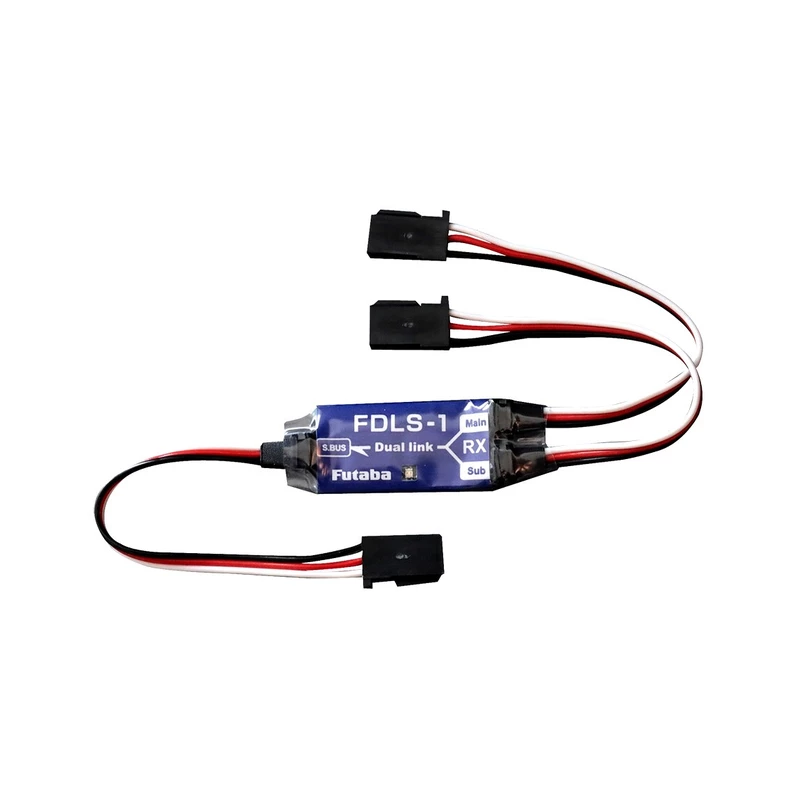

The FDLS-1 receiver backup system allows switching between the main and backup S.BUS2 Futaba receiver in case of signal loss.
A pair of S.BUS2 Futaba receivers (not necessarily of the same type) are connected to the FDLS-1 via S.BUS2 ports; the backup system ensures switching to the backup receiver in case the main receiver loses the signal from the transmitter or is exposed to strong interference. When normal, it returns to the main receiver. Telemetry is transmitted by the main receiver.
When using a transmitter that supports the Dual receiver function, the main receiver and the transmitter pair as the receiver 1 and the backup receiver as the receiver 2. In the case of a transmitter that does not support this function, the main receiver and the transmitter pair as the first and the backup receiver second.
FDLS-1 inputs and outputs
Servos, receiver battery and other devices, including gyroscopes, telemetry sensors, etc., are connected to the FDLS-1 output, so both receivers are connected only via S.BUS2 ports - no servos, receiver batteries or other devices are connected directly to the receivers.
The FDLS-1 kit contains: FDLS-1, instructions.
| Power supply [V] | 3.5 - 8.4 |
| Length (with cables) [mm] | 240 |
| Weight [g] | 6.5 |
