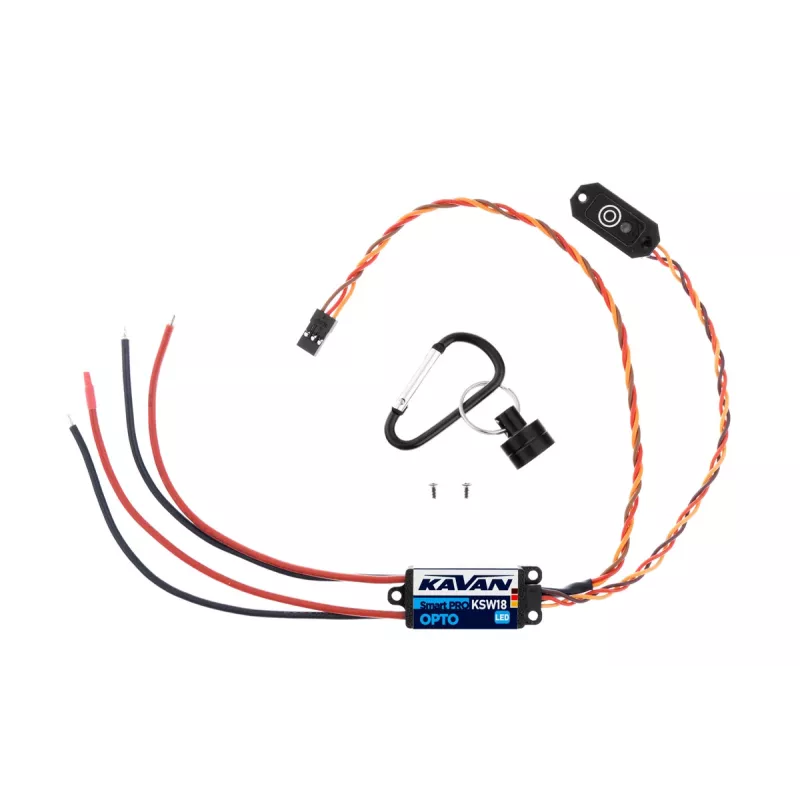

KAVAN Smart PRO KSW18 Kill switch

KAV32.32006
Kavan
Digital switch with optically isolated switching circuit, suitable for use as an independent ignition switch for combustion engines. Dimensions 50×19×10 mm, weight 19 g.
More info
In stock - main warehouse: > 10 pcs
Friday 23.10. May with you
Delivery options
Your price with VAT
(PTU PL 23%)
63.71 €
Price without VAT
51.79 €

  • Did you find a better price?

    • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee

    Recommended for you

    Obrázek Obrázek 2
    Last items in stock
    S.BUS

    Futaba S.BUS/S.BUS2 decoder SBD-2

    FUTABA
    FUT5102620
    S.BUS/S.BUS2 decoder enabling the connection of up to 8 classic servos (analog and digital) to the S.BUS or S.BUS2 bus. The possibility of changing the channel assignment with a rotary switch and separate power supply of the servos from the receiver....
    In stock - main warehouse
    67.71 €
    In stock - main warehouse
    Obrázek
    S.BUS

    Futaba FDLS-1 receiver backup system

    FUTABA
    FUT5102696
    Receiver backup system providing automatic switching between main and backup S.BUS2 receiver in case of signal loss. Power supply 3.5-8.4 V, length with cables 240 mm, weight 6.5 g.
    In stock - main warehouse
    63.71 €
    In stock - main warehouse
    Obrázek
    telemetry

    KAVAN MicroVario

    Kavan
    KAV16.21522
    Miniature altimeter / variometer with a resolution of 0.1 m compatible with telemetry systems JETI Duplex EX, Multiplex MSB, Graupner HoTT, Futaba S.BUS2. Dimensions 15x9x4mm, weight 2g, power supply 3.5-12V. Adjustable with Jetibox / Jetibox Mini or...
    In stock - main warehouse
    59.70 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    Trays and belts

    Futaba cross strap

    PELIKAN
    PEL9207
    In stock at the store
    59.70 €
    In stock at the store
    Obrázek Obrázek 2
    telemetry

    KAVAN Smart PRO AMS Alti motor switch

    Kavan
    KAV16.21523
    Miniature motor switch at preset altitude or time for electric windsurf competitions (F5J etc.) and altimeter/variometer with 0.1 m resolution compatible with telemetry systems KAVAN/FrSky Fport, JETI Duplex EX, Multiplex MSB, Graupner HoTT, Futaba...
    In stock - main warehouse
    59.70 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Trays and belts

    KAVAN cross strap

    Kavan
    KAV16.1007
    In stock - main warehouse
    59.70 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Other

    Futaba handle for 10PX

    FUTABA
    FUTEBT2332
    In stock - main warehouse
    47.68 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Other

    KAVAN Smart PRO MPSW15 Magnetic switch

    Kavan
    KAV32.32008
    Magnetic safety switch of the "Remove before flight" type for switching on receivers, ignition and other onboard devices without the need for mechanical contacts. Dimensions (O22.5/O15)×42 mm, weight 16 g, current consumption in the off state < 3 µA.
    In stock - main warehouse
    51.69 €
    In stock - main warehouse

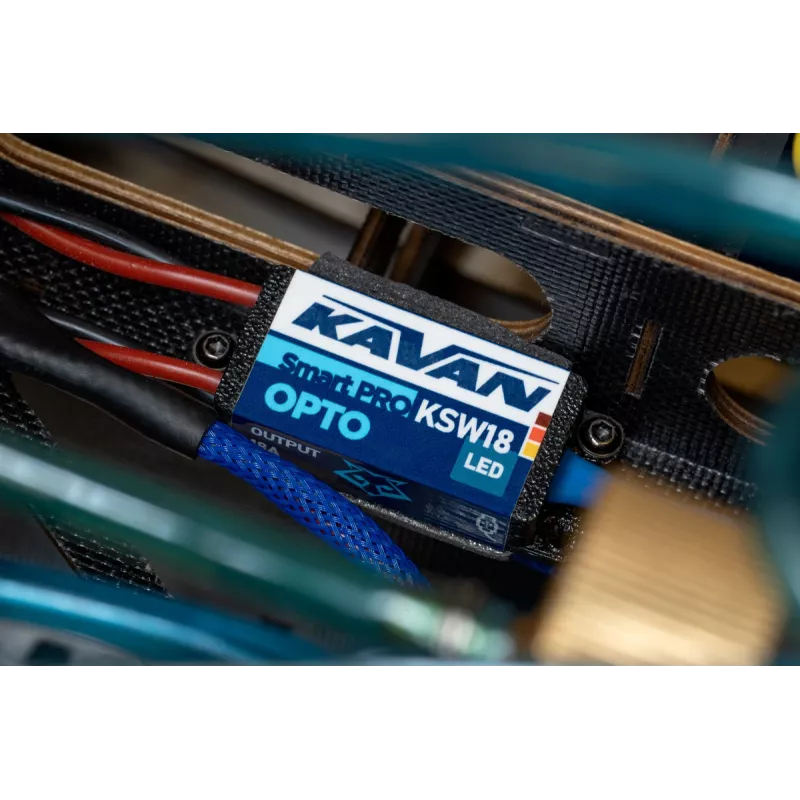

    A powerful digital switch with an optically isolated switching circuit. Thanks to its high immunity to interference and galvanic signal isolation, it is suitable for use as an independent ignition switch for an internal combustion engine. It can be controlled via the RC channel from the receiver, a mechanical switch or a combination of both. The device offers a wide range of configuration options.

    Features:

    • Optically isolated switching circuit with independent power supply
    • Support for various types of loads: motors, relays, lighting, heaters
    • Possibility of connecting a magnetic, mechanical or electronic button or switch (optional touch switch support)
    • Two switch control inputs for increased safety
    • Support for Duplex EX and FrSky telemetry (for configuration)
    • Configuration using a transmitter or PC software MAV Manager
    • Firmware update possible


    Technical specifications:

    • Dimensions: 50×19×10 mm
    • Weight including cables: 19 g
    • Weight including cables and combined magnetic/touch switch: 24 g
    • Cables: 3×1 mm2 (17AWG)
    • Connectors: –
    • Continuous current: 18 A
    • Peak current (2s): 30 A
    • Operating current: < 10 mA
    • Operating temperature: (-20)-85 °C
    • Supply voltage (Rx input): 4–16 V
    • Supply voltage (isolated switching circuit): 5-26
    • Telemetry: Duplex EX, FrSky (configuration only)
    • Touch switch support: Yes
    • BEC: No
    • Optional touch/mechanical switch/button: Yes
    • Status LED: Yes

    KAVAN Smart PRO KSW18 Kill switch is manufactured in Czech Republic by MAV Sense s.r.o.

    Online instruction manual: wiki.kavanrc.com
