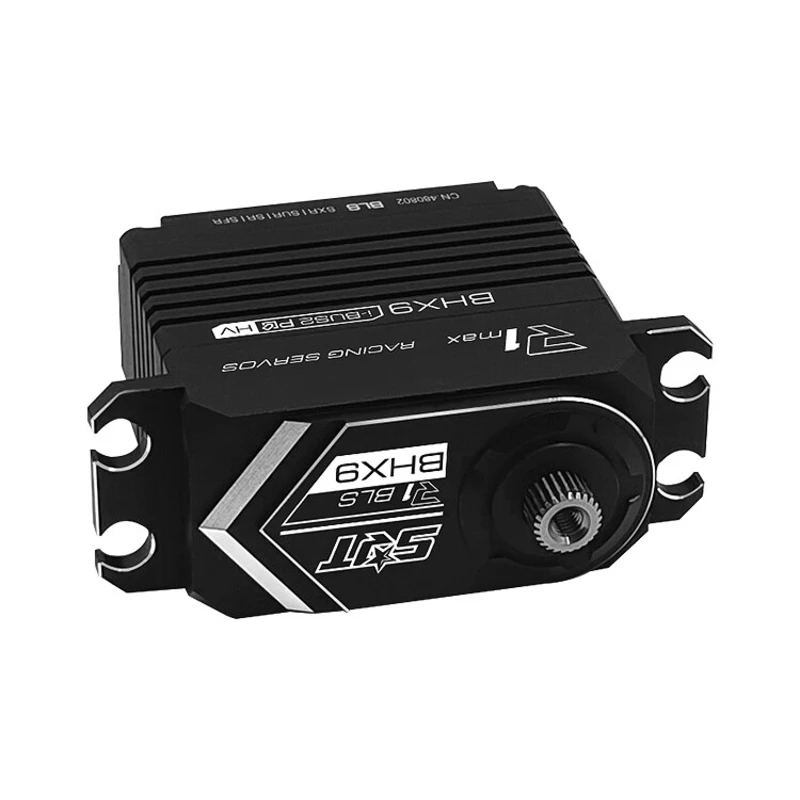

BHX9 HiVOLT BRUSHLESS Digital servo (75 kg-0.10s/60°)

SRT-BHX9
SRT
Digital HiVolt standard servo with 4-pole Brushless (AC) motor and metal gears.
More info
In stock - main warehouse: 5 pcs
Wednesday 16.9. May with you
Delivery options
Your price with VAT
(DPH SK 23%)
122.02 €
Price without VAT
99.21 €

  • Did you find a better price?

    • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee

    Recommended for you

    Obrázek Obrázek 2
    Digital

    HBL665 (0.09s/60°, 16.7kg.cm)

    MKS
    MKS10007
    Very strong and very fast digital standard servo 63g with AC motor and metal gears with supply voltage range 6.0-8.4V, 2xBB. Ideal for cycling 600 size helicopters. Thrust 12.2kg.cm, speed 0.13s/60° at 6.0V, 15.2kg.cm, speed 0.10s/60
    In stock - main warehouse
    125.85 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Digital

    DS760 (0.027s/60°, 4.9kg.cm)

    MKS
    MKS12002
    Ultra fast digital narrowband (760µs) standard 75g metal geared servo with 4.8-7.0V supply voltage range, 2xBB. Ideal for 600 size helicopter trim rotors, compatible with most 760µs gyros and flybarless units. Thrust 3.9kg.cm,
    In stock - main warehouse
    121.64 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    Digital

    Spektrum servo A6320 BL HV MG 19.5kg.cm 0.1s/60° 23T

    Spektrum
    SPMSA6320
    Digital standard servo Spektrum A6320. Power supply 6-8.4V, AC motor, aluminum box, metal gears, precise and fast digital servo for motorized aerobatic models 30-50cc or giant sports models. Dimensions 20 x 40 x 39 mm, weight 62g. Torque 19
    In stock - main warehouse
    117.80 €
    In stock - main warehouse


    SRT BHX9

    The new SRT serv R1max series brings 4-pole AC motors with uncompromising performance, voltage, temperature and signal logging functions, or support for Futaba, Sanwa and FlySky high-speed transmission modes . All this in an elegant all-aluminum case and with steel gears .


    Properties

    • Ideal for road and off-road models in 1/8 - 1/5 scale
    • Excellent pulling torque
    • Great efficiency and low power consumption
    • Its standard dimensions make it ideal for models that can use a high-quality servo
    • CNC milled aluminum case for efficient cooling
    • Programmable brushless servo with high torque
    • Support for SXR, SUR, SR, SFR modes
    • i-BUS2 support
    • Output millet 25T

    SPECIFICATIONS

    • Type: Digital
    • Bearing: Dual
    • Motor type: AC 4-pole motor
    • Gear type: Metal
    • Gear material: Aluminum 7075 + Steel
    • Control system: pulse width regulation
    • Operating frequency: 1520 µs / 330 Hz
    • Operating Voltage: DC 6.0-8.4V
    • Operating temperature range: -10 to + 60 degrees.
    • Operating speed (6.0V): 0.15s/60 degrees without load
    • Operating speed (7.4V): 0.11s/60 degrees no load
    • Working speed (8.4V): 0.10s/60 degrees without load
    • Stop torque (6.0 V): 55.0 kg.cm
    • Stop torque (7.4 V): 65.0 kg.cm
    • Stop torque (8.4 V): 75.0 kg.cm
    • Potentiometer drive: direct
    • Dimensions: 40.0 x 20.0 x 39.2 mm
    • Weight: 82.0 g
    • Protection: IP67
    • Power cable: JR 300 mm
