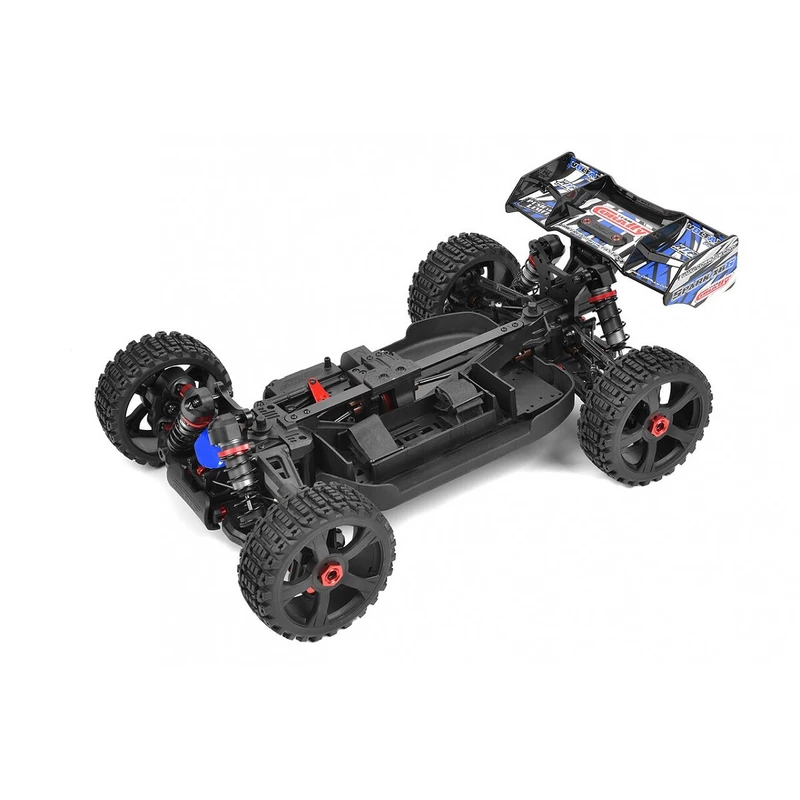

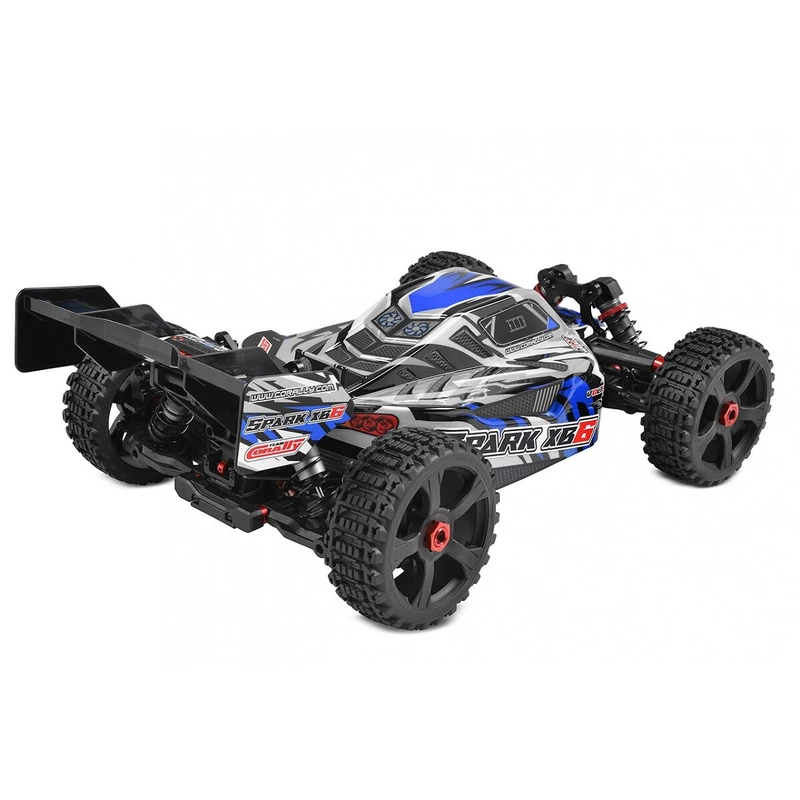

SPARK - the first real buggy in 1:8 scale
Experience the revolution with the first true 1:8 scale buggy designed specifically for bashing - the Team Corally Spark XB6!
Get ready to push the boundaries, overcome challenges and experience the thrill of ultimate endurance and superior performance. Customer feedback is the driving force behind Team Corally's innovation, and this model is the result.
The new Spark XB6 sets itself apart from other 1:8 scale buggies by focusing on one thing - bashing. With superior materials and impeccable workmanship, this basher's dream machine is built to tackle the most challenging terrain and obstacles you can throw at it.
Your journey, your control:
Choose your adventure with the Spark model, available in two versions - a hassle-free Ready-to-Run package (described here) and a Rolling Chassis variant that allows you to customize your choice of electronics. Both versions come in three eye-catching color combinations with a matte black base complemented by bold red, green or blue accents.
Unleash the power:
The supplied Team Corally Torox 185A 4-6S Regulator (not included) features LiPo battery protection in addition to other safety and performance options, while the Team Corally Kuron 2050kV 4-pole AC motor (not included) provides impressive speed and torque. Precise steering control is ensured by the HV-7225 HV Servo with metal gears (not included in the package). The convenient 2.4GHz CT2R radio (not included) provides a solid radio connection and adjustable features for driving comfort.
Attention to detail:
Boasting a host of features, from aluminum servo arms to a one-piece composite steering link and 3mm aluminum double deck Ackermann 7075 steering system, the Spark is built for precision.
It features separate, sealed electronics boxes with a transponder holder, an XL adjustable battery holder compatible with regular LiPo batteries, and a full set of sealed aircraft-grade ball bearings.
Puncture resistant drive:
The Spark's drivetrain features a hardened steel spur gear, motor pinion, and sealed metal differentials filled with silicone oil. The aluminum and steel center differential, along with quick and easy access to the differential, offers unmatched comfort and performance. With an aluminum adjustable motor mount, 46 tooth steel central gear, hardened steel PTO shafts and CVD front joints, the Spark is built for durability. Its 16mm aluminum Big Bore shocks with oil fill and threading, shock spring locking system and CNC aluminum shock towers ensure exceptional handling and stability.
Shock-resistant suspension:
Independent front ball-pivot suspension and independent double-wishbone rear suspension ensure precise handling over rough terrain, while durable one-piece composite hinges and suspension rods ensure strength and durability. With a reinforced undercarriage, high downforce wing and central undercarriage bracing system, the Spark is ready for the toughest bashing. Join the revolution with the Team Corally Spark XB6 - the ultimate 1:8 scale basher's dream machine. Unleash your inner thrill seeker and conquer any terrain with unmatched performance, durability and style. Get ready for the ride of your life!
Fire up the Spark XB6, conquer the terrain:
Team Corally's Spark XB6 is the definition of Bash Buggy 1/8 scale perfection. We value the input of our customers, and their feedback has been instrumental in shaping Spark into an exceptional bash machine. Become part of Team Corally's family of passionate bashgers! Get ready to push boundaries, overcome challenges and experience the thrill of breathtaking performance.
Properties:
- Team Corally Torox 185 ESC 4-6S Regulator with LiPo Protection (not included)
- Team Corally Kuron 2050kV 4-6S 4-Pole AC Motor (Not Included)
- Servo control CRHV-7225 HV metal gears, torque 25Kg (not included in the package)
- Team Corally CT2R Ergonomic 2.4GHz interference-free transmitter (not included)
- Aluminum servo arm
- One-piece composite steering link
- 3mm aluminum 7075 double deck Ackermann steering system
- Separate splash-proof and dust-proof electronics box with transponder holder
- XL Adjustable battery holder for all common LiPo batteries
- Complete set of ball bearings with rubber seals
- All gearbox ball bearings are 8x16x5mm
- Hardened steel spur gear and motor pinion
- Three sealed metal differentials individually filled with silicone oil
- Aluminium/steel central differential
- Quick and easy access to the differential
- Two-piece aluminum engine mount with composite transmission cover
- 46 tooth steel central gear
- Complete steel PTO shafts with S2 hard coating
- Additional surface-hardened CVD steel front joints
- Aluminum 17mm drive hexagons
- Aluminum 16mm threaded Big Bore shock absorbers filled with oil
- Damper spring locking system
- Nylon composite damper cover protectors
- CNC aluminum shock towers, 5mm front and rear
- Pivot Ball independent front suspension
- Independent rear suspension with double wishbone
- Optimized, custom developed composite parts
- Aluminum pins and Pivot Ball pins on the suspension arms
- HD front steering blocks and rear hubs
- Strong 4mm aluminum suspension pin reinforcements
- Composite protectors for suspension braces
- Heavy duty one-piece composite hinges and suspension rods
- Team Corally RSP anti-skid bar system, front + rear
- 3mm aluminum chassis chassis
- Reinforced chassis side covers with integrated body protection
- Heavy Duty front bumper
- New chassis central bracing system with 3mm aluminum plate
- Reinforced wing with high downforce + wing holder with connecting tower reinforcement
- Pre-glued high-speed XL Buggy tires on black six-spoke nylon rims
- Robust polycarbonate body with elaborate print
- Composite body protectors
- A wide range of tuning parts for individual customization
Vehicle - model type- Car type: Buggy
- Age Requirement: Age: 14+
- Skill Level: Intermediate
- Finish level: assembled model without all electronics
- Assembly Time: No chassis assembly required, just installation of all electronics. I estimate at least 1-2 hours.
- Drive: 4WD - shaft drive
- Drive system: for up to 6S
- Motor type: for AC motor
- Recommended environment: Terrain: suitable for all types of terrain
- Maximum speed (km/h): 110
Vehicle - dimensions- Model scale: Size: 1/8
- Length (mm): 495
- Height (mm): 495mm
- Wheelbase (mm): 327
- Front wheel track (mm): 308
- Rear wheel track (mm): 308
- Ground clearance (mm): 58
- Weight (g) - without battery: 3650
- Space for battery LxWxH (mm): 161x51
- Bumper diameter o (mm): 18.75
- Front shock absorber length (mm): 108
- Rear shock absorber length (mm): 129
- Rim diameter o (mm): 90
- Rim width (mm): 42
- Tire diameter o (mm): 122
- Tire width (mm): 42
Vehicle - electronics - Motor: Kuron 825 - 2050KV - 4-6S (not included)
- Power battery: Not included
- Radio: TC - CT-2R 2.4Ghz (not included)
- Servo: CR-7225 - torque 25Kg (not included in the package)
- Speed control: TC - Torox 185 ESC 2-6S (not included)
- Charger: not included
Car - Technical details- Wheel adapter: 17mm hex adapter
- Bearings: ball bearings - with rubber shielding
- Differentials: 3x toothed differential
- Front Suspension Type: Independent Suspension: Pillow Ball Type
- Independent suspension: Rockers
- Gear spacing: MOD 1.0
- Front gear (teeth): 46
- Engine pinion (teeth): 13
- Internal gear ratio: 3.31
- Total gear ratio: 11.71
- Damper Type: Internal Shock: "Big Bore" Oil Filled Aluminum Dampers - Coil Springs
Vehicle - materials- Bevel gear - pinion: Precision CNC machining - hardened steel
- Chassis: 3 mm - aluminum 6061-T6 - color anodized
- Chassis reinforcements: Molded composite + aluminum rod
- Center differential: Hybrid case - aluminum 6065-T6 + steel
- Differential FR - RE: Molded composite housing
- External drives: Racing S2 spring steel - hardened
- Lower arm brackets: Aluminum 6061-T6 4 mm + composite
- Antlers/muffler mounts - front: 5mm - aluminum 6061-T6 - color anodized
- Antlers/muffler mounts - rear: 5mm - aluminum 6061-T6 - color anodized
- Motor pinion: Precision CNC machining - hardened steel
- Front gear: Precision CNC machining - hardened steel
- Body shell: Interior: polycarbonate: painted, with decals and trimmed
