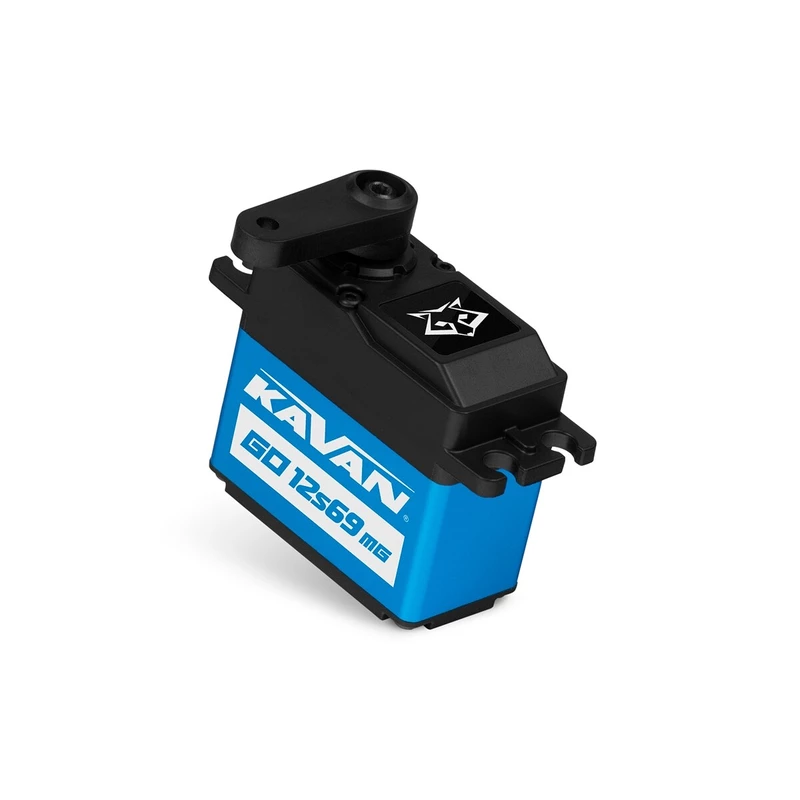

Strong and fast programmable digital standard servo with coreless motor, steel gears with output shaft mounted on two ball bearings for use in RC models of all types; ideal for road RC cars 1:8/1:10, etc. For perfect cooling even under high load, the servo is housed in a plastic box with an aluminum radiator in the middle.
With the help of the USB programmer/interface for GO servos and the operating PC program, you can program a whole range of servo parameters.
Programmable functions
Extended supply voltage 4.8-7.4 V (nominal).
5.92mm output shaft with 25-tooth helix.
| Servo size | Standard |
| Servo type | Digital |
| Programmable | Yes |
| Thrust at 4.8 V [kg•cm] | 19 |
| Thrust at 6.0 V [kg•cm] | 22 |
| Thrust at 7.4 V [kg•cm] | 24 |
| Thrust at 8.4 V [kg•cm] | 26 |
| Speed at 4.8 V [s/60°] | 0.16 |
| Speed at 6.0 V [s/60°] | 0.14 |
| Speed at 7.4 V [s/60°] | 0.11 |
| Speed at 8.4 V [s/60°] | 0.1 |
| Servo transmissions | Metal |
| Ball bearings | 2× |
| High voltage | Yes |
| Power supply [V] | 4.8 - 8.4 |
| Length [mm] | 40 |
| Width [mm] | 20 |
| Height [mm] | 37.2 |
| Weight [g] | 69 |
| Intended for | Airplanes, Helicopters, Road cars |
| Water resistance | No |
