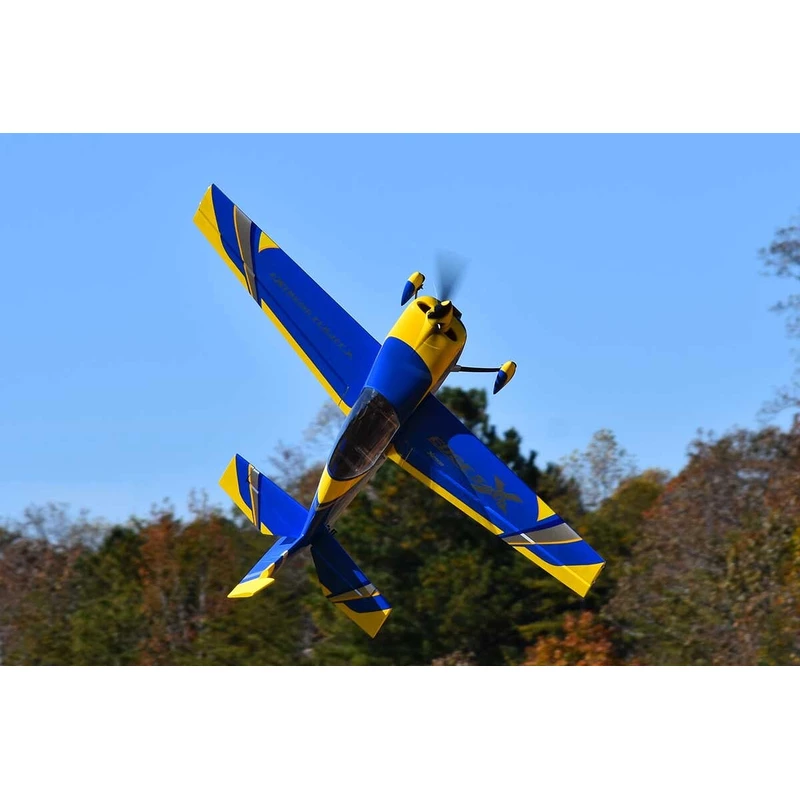

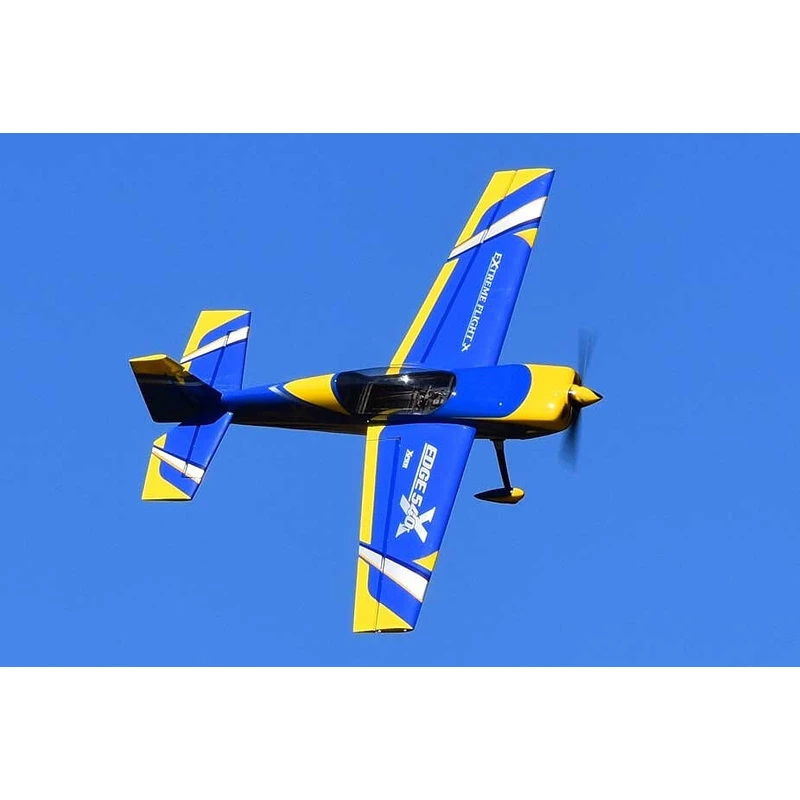

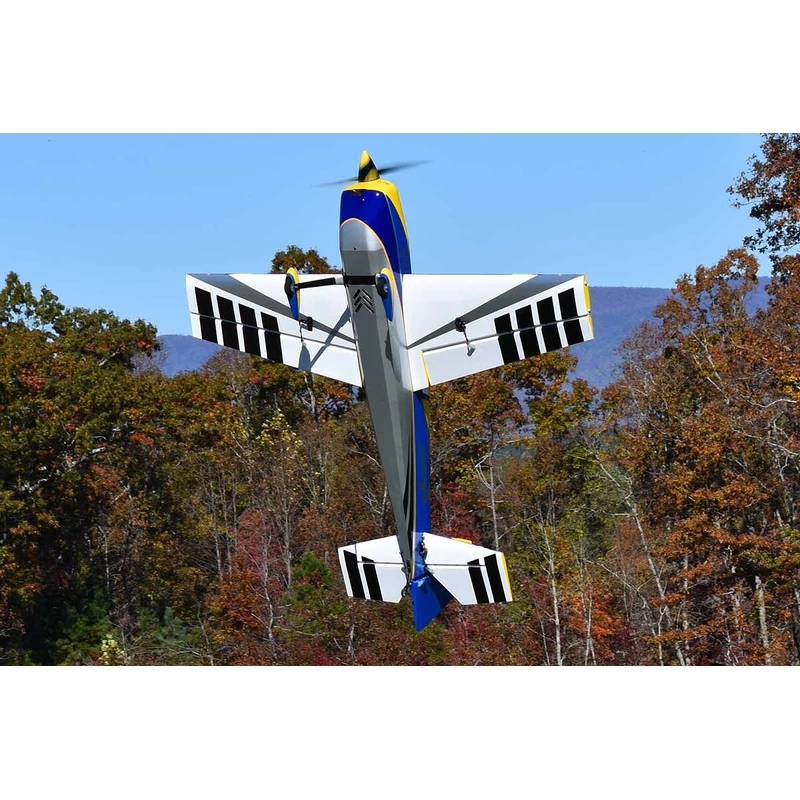

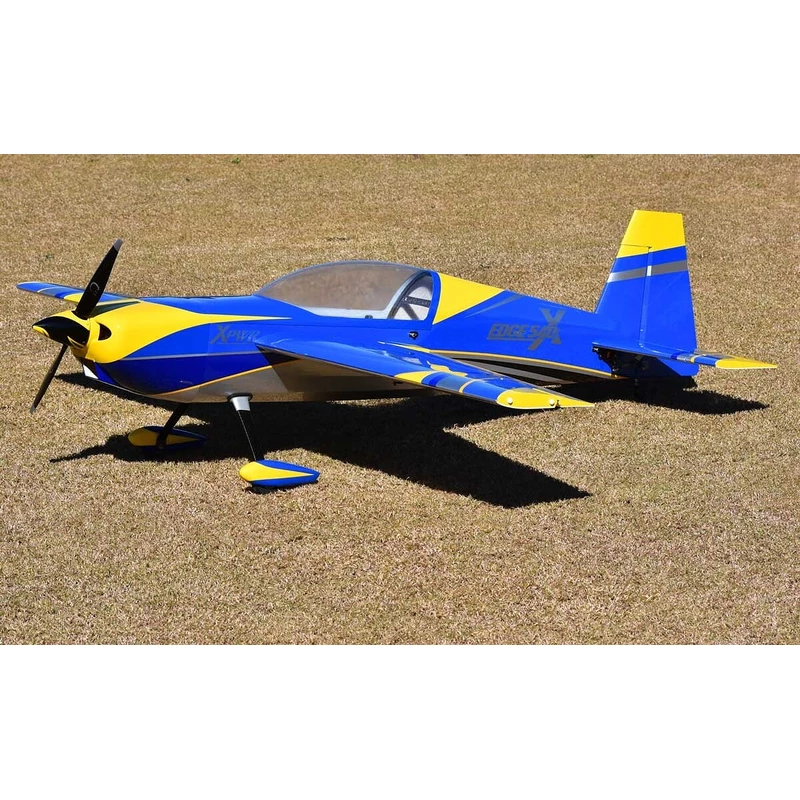

78" Edge 540 - Blue/Yellow 1.98m

A426BYS
ExtremeFlight
ARF kit of a 3D acrobatic special with a span of 1,980 mm, intended for drive by an AC electric motor of 3-4 kW. Very light structural construction, many carbon parts.
More info
In stock - main warehouse: 2 pcs
Recommended retail price
945.47 €
Your price with VAT
()
781.38 €
Price without VAT
781.38 €

  • Did you find a better price?
  • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee



    Extreme Flight's aerobatic models are loosely based on real airplanes, with the designer allowing himself a number of modifications to create a model with a unique appearance and flight performance. In the lightweight construction, which is based on balsa and plywood parts, carbon and glass composite materials are used generously - and in the right places - to achieve high strength and stiffness of the kite at a minimum weight. The result is a robust model capable of handling aerodynamic loads in a wide range, but which is light enough to achieve a low surface load.

    The kit includes tuning winglets or Side Force Generators (SFG) increasing the effective side surface of the model, making knife flight and other turns depending on the "authority" of the rudder easier and more stable. These winglets also make the model more stable during high angle of attack (harrier) turns. We highly recommend that you mount them on your model and experiment with them.

    The perfectly sprayed laminate engine cover and aerodynamic wheel covers, as well as the option to choose from several color schemes of the ULTRACOTE (=Oracover) high-visibility iron-on foil cover, will give you a model that you will be rightly proud of at the airport. The combination of all these modern elements creates a model that pushes the boundaries of modern aerobatic flying. Extreme Flight models excel in all modes of modern aerobatics including slow 3D low altitude aerobatics, fast and aggressive extreme aerobatics and classic precision aerobatics.

    A sports semi-model of an American aerobatic aircraft powered by a 3-4 kW AC electric motor for experienced pilots to fly classic precise and extreme 3D acrobatics.

    The fuselage of the model is a classic construction of plywood and balsa laser-cut parts with composite reinforcements with a removable laminate engine cover and a removable top of the fuselage with a cabin (with a second generation quick-release system) for perfect access to the propulsion system and RC equipment. The engine is fixed in the rear assembly on a plywood box bed.

    The two-part wing with a symmetrical profile (the halves are slid from the side onto a carbon tube coupling and secured with a second-generation quick-release system) is also a classic construction with an all-balsa hard cover. The wings with a large area are controlled by 2 independent servos. You can equip the ends of the wings with the supplied winglets.

    The tail surfaces are lightweight all-balsa construction, the VOP is two-piece with the stabilizer halves slid onto the carbon tube. The elevator halves are controlled by servos mounted in the tail section of the fuselage with short straight rods; the rudder is controlled by cable drives with a servo stored in the cabin area. The entire model is coated with ULTRACOTE iron-on foil (this is the brand name used in the USA for the well-known Oracover foils).

    The chassis is a spur type with carbon main legs, wheels with laminate covers and a wire spur with a carbon bracket mated to the turn signal.

    For propulsion, you will need a 3-4 kW AC electric motor (e.g. Xpwr 40cc) with at least 120 A speed regulator powered by an 8-12S LiPo battery 3500-5000 mAh with a load capacity of at least 40C.

    At least a six-channel computer RC set is suitable for controlling the model - the ability to precisely set "paired" servos and program double and exponential deflections in the right size is essential for flying acrobatics - classic precise and extreme 3D.

    Fast and powerful servos in a standard size will do - e.g. Hitec HS-7985MG, D954SW, etc.

    Kit includes: iron-on foil covered fuselage, wing and tail surfaces, sprayed laminate engine cover, complete set of accessories, carbon chassis, spur, wheels and instructions.


    Package dimensions: 33x57.5x159cm

    Package weight: 10.8 kg

    Notice

    According to Commission Delegated Regulation (EU) 2019/945 of 12 March 2019 on unmanned systems and third-country operators of unmanned systems and Commission Implementing Regulation (EU) 2019/947 of 24 May 2019 on rules and procedures for the operation unmanned aircraft operators and pilots of unmanned aerial vehicles (classic aircraft models, multicopters, drones) that weigh more than 250 g or carry a camera or other sensor capable of capturing personal data in any way are required to register (in the Czech Republic with the Civil Aviation Authority). More information can be found here: Registration of drone operators and pilots

    Span [mm] 1980
    Length [mm] 1976
    Weight [g] 6350
    Wing area [dm 2 ] 75.5
