Spectrum transmitter DXs DSMX

Package contents

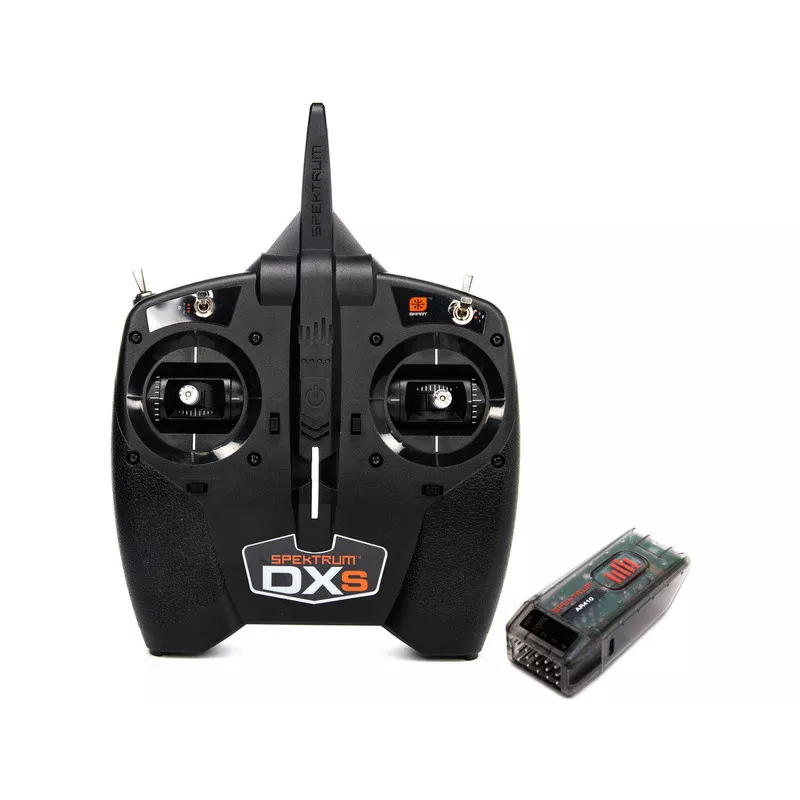

Transmitter Spektrum ™ DXS 7-channel DSMX®, product manual.

Characteristics

The affordable 7-channel RC Spectrum DXS kit is universal for use with RC models of airplanes, gliders, helicopters and drones. It supports Spektrum ™ Smart technology for battery telemetry of Smart controllers and Smart LiPol batteries. Thanks to the possibility of programming using a computer or mobile devices, you can easily upload the finished settings to the transmitter. You can easily set up channel reversal and mode change without cable using transmitter programming. The transmitter has full range, DSMX® interference immunity, advanced telemetry and proven transmitter ergonomics. Registration and updating of the transmitter is possible via a PC with an optional USB programming cable (available separately). The transmitter is configured to provide the benefits of SAFE® technology with compatible receivers equipped with SAFE functionality

DXS transmitter features

• Transmitter Spektrum ™ DXS DSMX with full range, 4-channel receiver AR410 DSMX® / DSM2®
• It supports Spektrum-Smart technology for battery telemetry with Smart controller and Smart LiPol batteries
• The LEDs of the transmitter show the status of the Smart LiPoL flight battery for voltage monitoring
• The proven ergonomics of the transmitter are optimized for comfortable and precise grip without fatigue
• Wireless Teacher - Student with optional SRXL2-DSMX® receiver (available separately)
• Registration and updates are possible via PC with optional USB programming cable (available separately)
• The transmitter is compatible with SAFE® technology with compatible receivers equipped with SAFE
• The DXS transmitter is fully compatible with other Spektrum-DSMX® systems

Compatibility

The transmitter is only compatible with DSMX receivers, so it is not compatible with DSM2 and Marine receivers.

Easy change of RC transmitter cross controller mode

The transmitter is delivered in mode 2 (throttle on the left hand). Changing the transmitter mode is easy, use the trims and LEDs on the transmitters to determine the type of mode (you can choose from mode 1, 2, 3 or 4) and then remove the back cover and use the screws to adjust the friction belt. Direct programming of the transmitter using switches and LEDs can also be used to set the reverse on all channels.

DSMX® TECHNOLOGY

The DXS transmitter uses advanced Spectrum-DSMX® 2.4 GHz technology. The transmission of the DSMX ™ signal takes place in a spread spectrum, spread by direct modulation of a pseudo-random sequence, which is highly resistant to interference. Each transmitter has a different selection of channels and a different pseudo-random sequence. The DSMX system therefore offers an excellent connection between your transmitter and the model.

TRANSMITTER ERGONOMICS

The weight distribution, position and position of the switches and the location of the trims have been optimized for comfortable control and holding of the transmitter. It includes an integrated handle and a clamp for the transmitter strap. In the battery compartment, there are ports for using the optional Wireless Trainer and a connector for programming on a computer. An optional SRXL2-DSMX® receiver (available separately) is required to support the Wireless Trainer. Firmware registration and updating can be performed from your PC by downloading the software from the DXS product page to SpektrumRC.com and using a USB programming cable (available separately).

FLIGHT BATTERY VOLTAGE MEASUREMENT

The transmitter has 4 diodes on the front of the cabinet under the transmitter battery voltage indicator, which can inform you about the status of the flight battery. In order for this function to be accessible, a telemetry receiver (AR410), an SMART Avian controller and a LiART SMART battery must be used. Four green LEDs illuminate when the flight battery is fully charged, 3 indicate the voltage between half and full charge, 2 half-charged battery and one LED when the battery is almost empty. < / p>
