KAVAN V5 + R6L RX transmitter - blue

KAVAN V5 is a basic 24-channel RC kit using the 2.4GHz ACCESS or ACCST transmission system with full telemetry support. It boasts an excellent response time of up to 4 ms and a range of up to tens of kilometers. The operating system is a completely new, lightweight and efficient ECOS, which simplifies control and setup. V5 can be paired with a wide range of KAVAN or FrSky receivers, with or without telemetry, with classic PWM and serial outputs.

V5 is a compact, lightweight and portable radio. It is suitable for controlling a variety of aircraft models or heli/multicopters. It can be easily set up for boats or land models. This is done using a number of functions and mixes available in the ECOS operating system.

It has a pair of precise cross controllers with potentiometers for control. Other functions are controlled by 1 three-position switch, 2 two-position switches, 1 rotary knob, 4 navigation buttons and 4 digital trims. The design of the control layout and body ergonomics is based on the proven and extensively tested design of the V20 and V15 transmitters.

The transmitter body is robust and fits perfectly in the hand. Textured grips on the sides and back of the body provide a firm, comfortable and secure grip with all controls within reach. Of course, there is also the option to adjust the strength of the neutralization springs and the lock to tune the mode and response according to your own preferences.

The built-in flash memory can store up to 32 models. To access the memory, you use the USB-C connector, which also serves as a charger. The built-in balancer takes care of charging the radio 2S Li-ion 2600mAh battery.

All KAVAN transmitters are covered by an extended three-year warranty.

Features

• Up to 8 flight modes for perfect control of your model in all conditions
• Full telemetry with data transfer from a wide range of sensors
• Memory for 32 models
• 1 three-position switch (short)
• 2 two-position switches (long)
• 1 rotary knob
• 4 digital trims
• Precision resistive D-pad controllers
• Teacher-student mode via cable (3.5mm port)
• Model names with 7 characters
• Reversal of servo deflections
• Setting end points and deflection limits
• Data reset
• Emergency deflections Fail-safe
• Setting the deflection course along an exponential or 17-point curve
• Freely programmable mixes
• Logically bound switches
• Simple and intuitive user interface
• Servo monitor
• 2 timers (stopwatch or timer)
• Adjustable display backlight intensity
• Dual controller calibration
• Sound signaling
• Range control
• Setting the operating mode with 3 receivers (redundancy)

Technical specifications:

• Transmission system: ACCESS / ACSST 2.4GHz
• Antenna: built-in 2.4GHz
• Gain: 3.01 dBi
• Dimensions: 185×161×91 mm (W×H×D)
• Weight: 515 g (without battery)
• Operating system: ECOS
• Internal RF module: ISRM-Lite
• Number of channels: Up to 24
• Operating voltage range: 6.5–8.4 V (2S Li-ion battery)

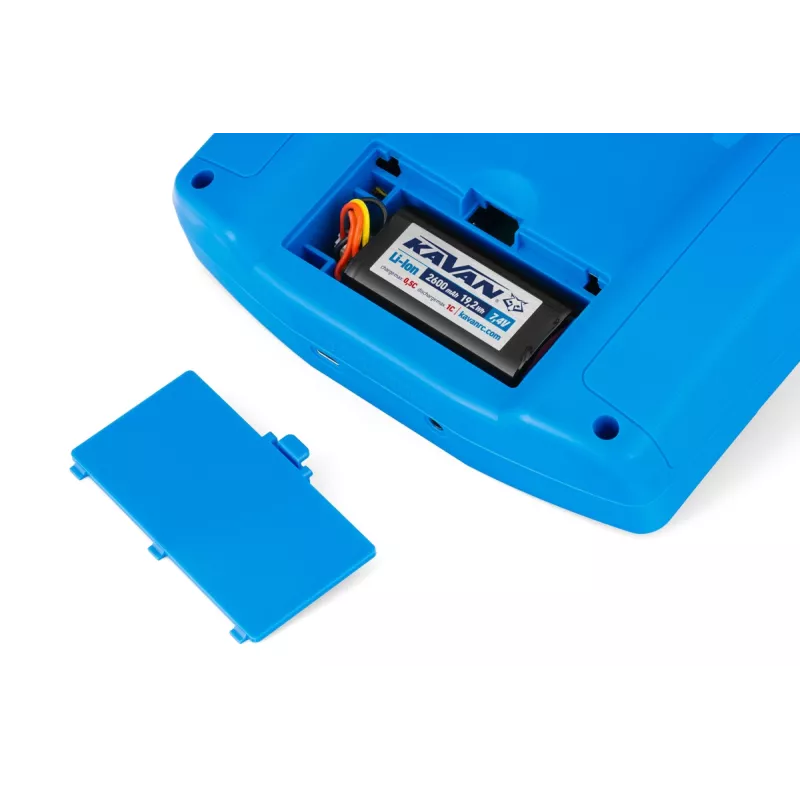

• Battery compartment dimensions: 69.5×38.5×20 mm (W×H×D)
• Operating temperature: (-10)–60 °C
• Operating current: 100 mA at 7.4 V
• Operating frequency: 2.4015–2.4820 GHz
• Max. radiated power: ?15 dBm (E.I.R.P.)
• Charging current: ?1 A ± 200 mA
• USB adapter voltage: 5 V + 0.2 V
• USB adapter current: ? 2.0 A
• Display: 2.15" monochrome LCD with 128×64 px resolution

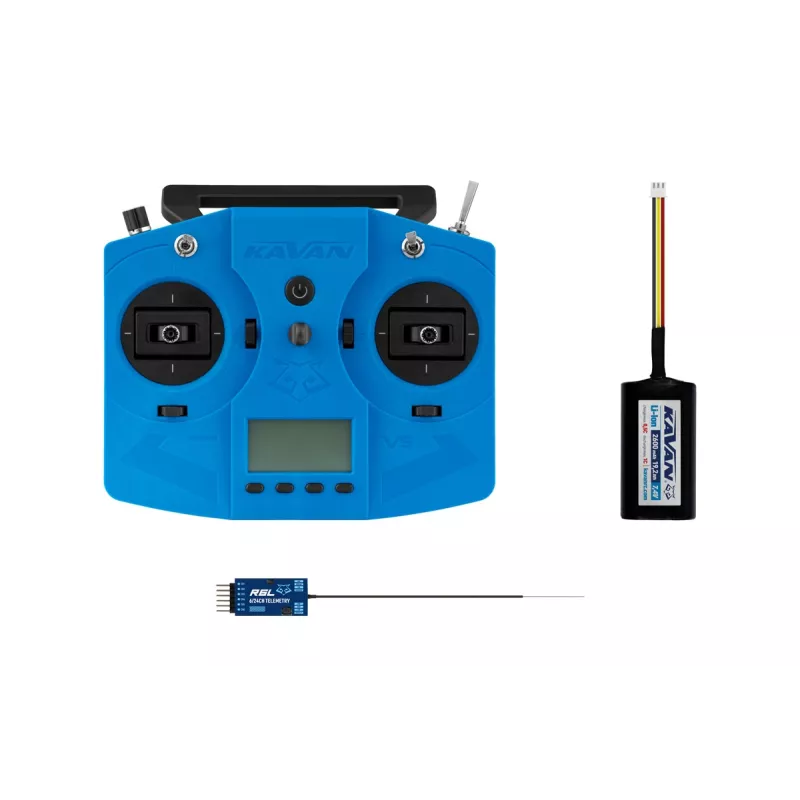

Package contents

• KAVAN 5 transmitter
• 2S Li-ion 2600 mAh transmitter battery
• KAVAN R6L receiver
