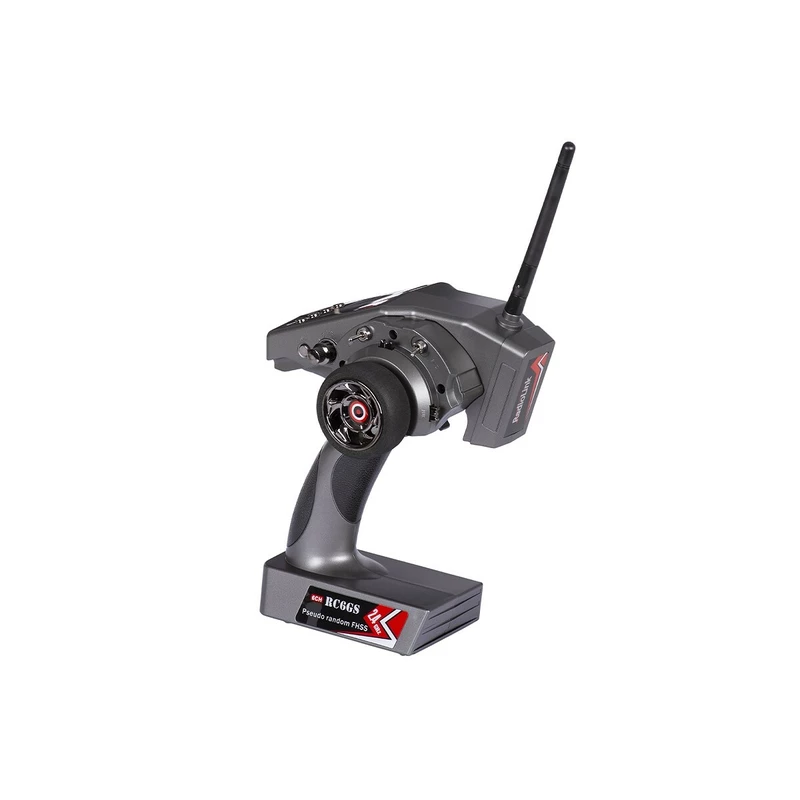

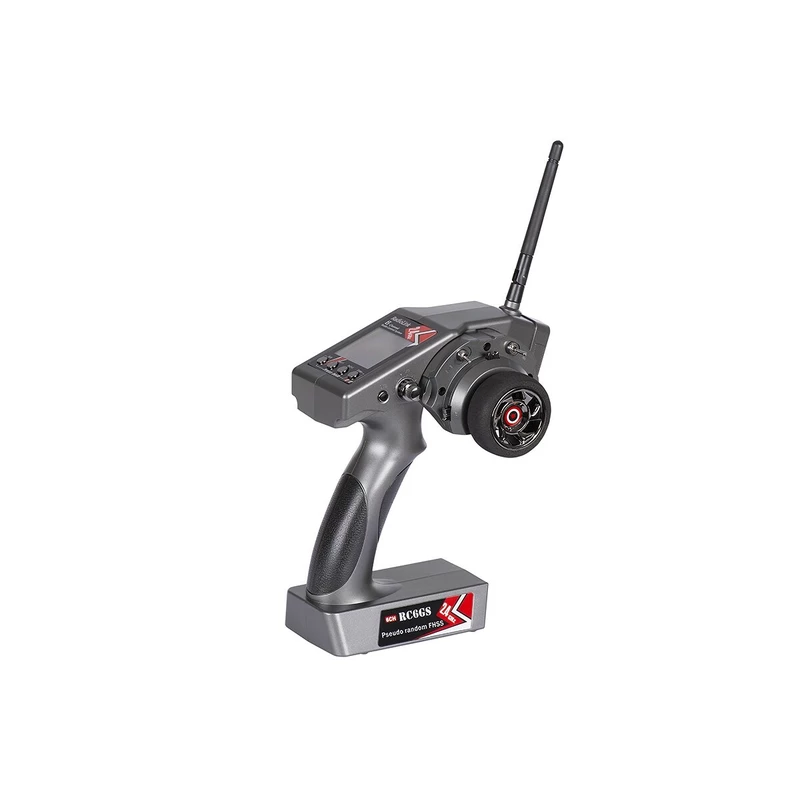

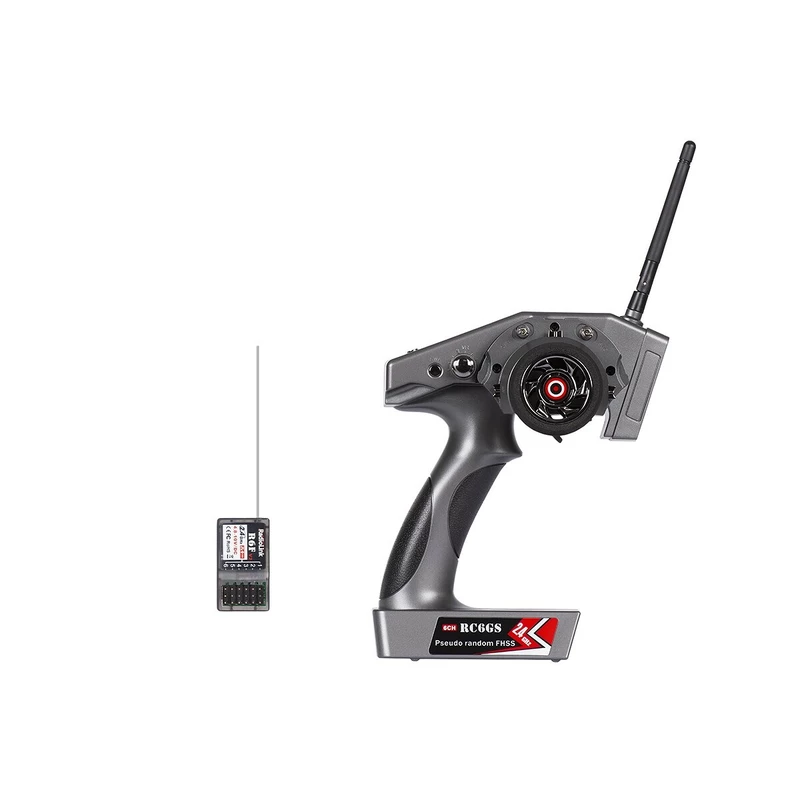

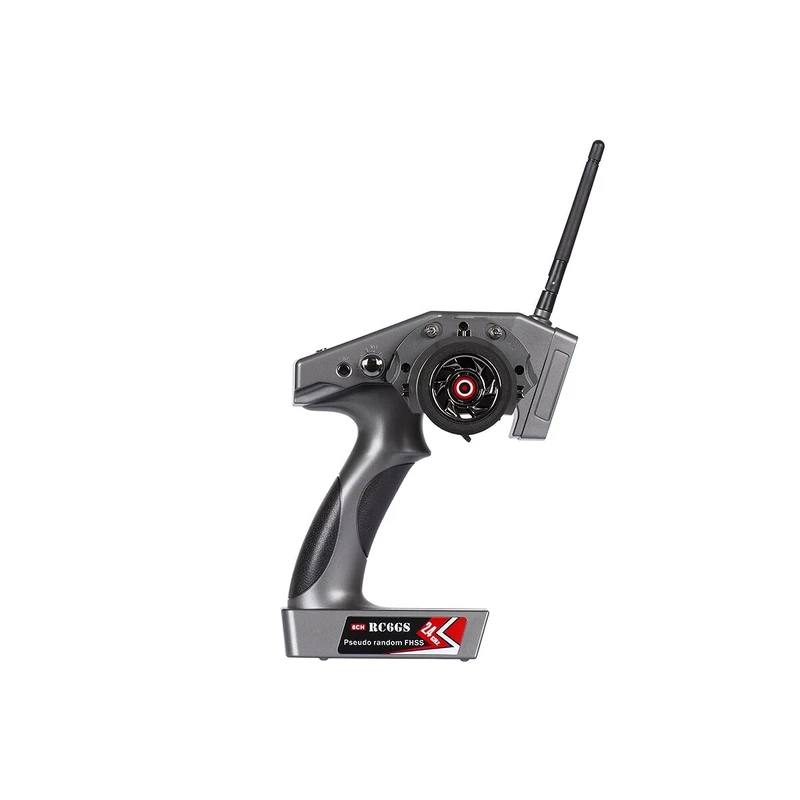

RC6GS V3 transmitter with R6F receiver

Six-channel Radiolink computerized steering wheel RC kit using FHSS 2.4GHz telemetry transmission system for recreational model cars and boats. With the R6F FHSS receiver included in the kit, you have 6 PWM channels for classic servos without telemetry. The RC6GS transmitter can also work with the R6FG receiver with built-in gyro or the R8EF and R8FM "aircraft" receivers (primarily intended for T8FB and T8S transmitters). The range of the RC kit is up to 400 m, so you don't have to worry about launching your boat into larger water. With the upcoming R7FG telemetry receivers, it will enable the transmission of telemetry and the display of the receiver's supply voltage and the signal strength received by the receiver on the transmitter's display.

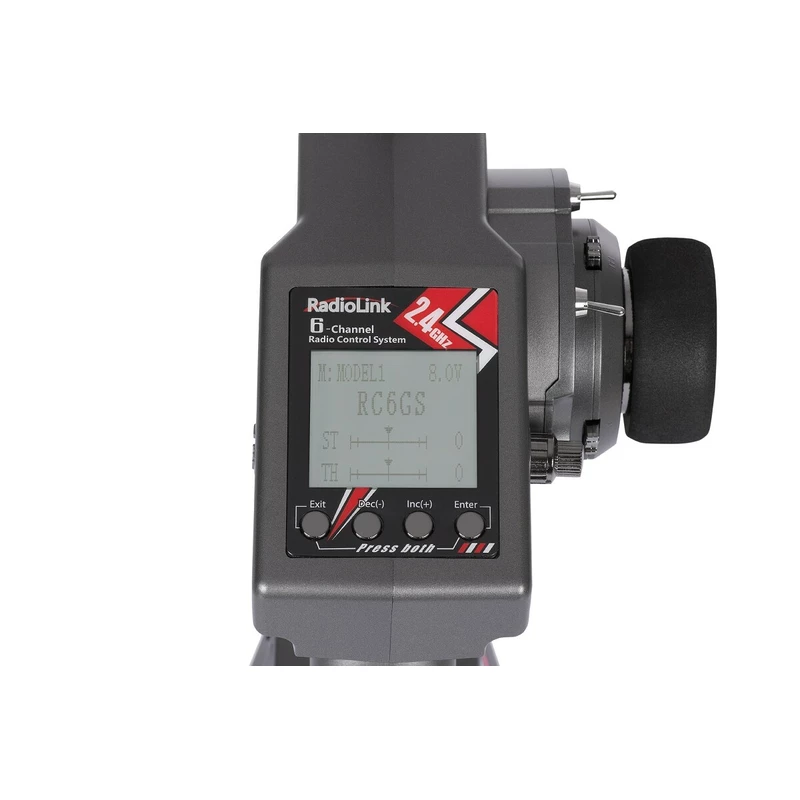

In a classic steering wheel design with a handle that fits well in the hand, the RC6GS transmitter is equipped with a steering wheel control, throttle trigger, rotary knob for the third channel, three digital trims around the steering wheel (for channels 1-3), two three-way toggle switches and two push button switches . Four buttons are used for programming; easy orientation in the intuitive menu is ensured by the LCD display. The RC6GS has a memory for 10 models and a wide range of programming functions, including two freely programmable mixes, so you can easily set up common and special car models (eg steered front and rear wheels for crawlers, tracked vehicles, twin-shaft boats, etc.).

To start the transmitter you will need 6 AA alkaline batteries or NiMH accumulators stored in the holder in the transmitter.

FUNCTION

• FHSS 2.4GHz transmission system for RC cars
• 6 proportional channels (channels 1 and 2 with controllers, channels 3 to 6 with freely assignable controllers or switches)
• Steering wheel control
• Throttle control trigger
• Rotary knob for channel 3 (button switches can also be assigned)
• 3 digital trims (steering, throttle, channel 3)
• 2 lever three-position switches above the steering wheel (can be assigned to switch on mixes and as channel controls)
• 2 push-button switches on the handle (can be assigned to switch on mixes and as channel controls)

Program functions

• Memory for 10 models (adjustable name of 7 characters)
• Setting the size of deviations for all channels
• Reversing the direction of deviations for all channels
• Subtrims for all channels
• Exponential progression of control deviations
• Throttle Curve (For Forward: Smooth Exponential, Curved Linear or 5-point Curve; For Brake/Reverse: Smooth Exponential)
• Speed of the steering and throttle servos
• Dual steering deflections
• Fail safe emergency deflections for all channels
• Controller selection for channels 3 to 6
• ABS
• Safe idle
• Acceleration of the gas
• Two freely programmable mixers with arbitrary assignment of the control and controlled channel (e.g. for controlling the second steering servo, dual-circuit brakes, tanks and other tracked vehicles, twin-shaft ships, etc.)
• Display of the status of the transmitter batteries/accumulators on the display with an adjustable threshold voltage for warning signaling
• Gyro gain remote control
• With telemetry receiver: Display of receiver supply voltage and signal strength on display with adjustable threshold voltage for warning signaling
• ID SEED: Special function especially for ship models - in the event that the ship loses power (for example, due to aquatic vegetation winding on the propeller) or capsizes, it allows you to switch to another model in the transmitter's memory, with which you can push the "afflicted" model to the shore (while the "afflicted" model does not respond to controller movements).

Compatible receivers

• Radiolink R6F (6-channel for RC cars)
• Radiolink R6FG (6-channel with gyro for RC cars)
• Radiolink R8EF (8-channel general purpose)
• Radiolink R8FM (miniature 8-channel S.BUS/PPM for general use)

RC KIT INCLUDES

• Radiolink RC6GS V2 2.4GHz transmitter
• R6F receiver
• Strap
• Operating Instructions
