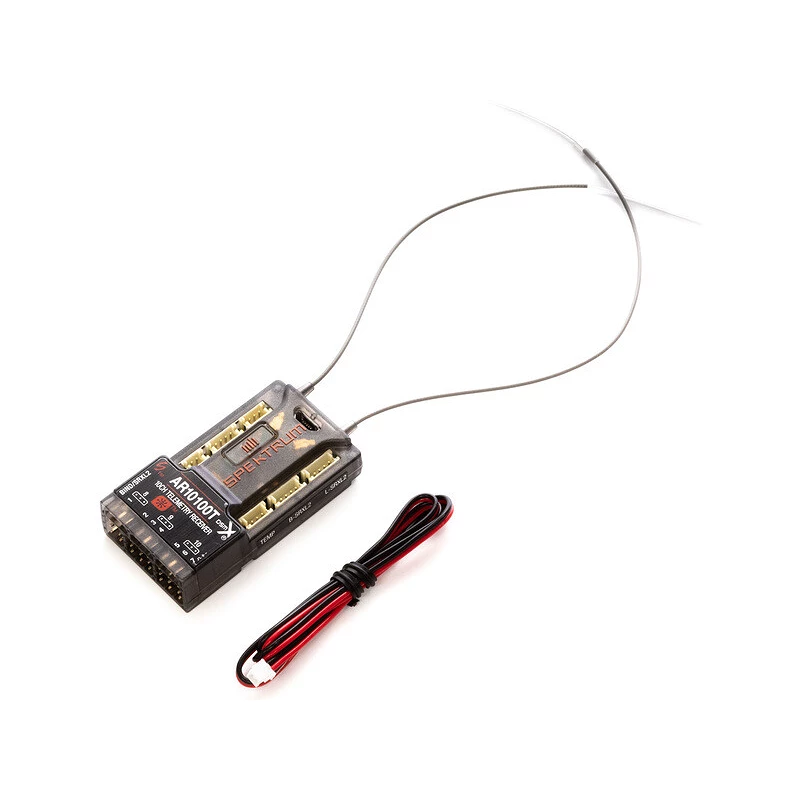

Spectrum receiver AR10100T 10CH with telemetry

Package contents

10-channel Spektrum receiver with AR10100T DSMX DSM2 telemetry, Spektrum Flight Pack voltage sensor, instructions in Czech, multilingual manual in English, German, French and Italian.

Characteristics

Aviation 10-channel receiver Spektrum AR10100T DSM2 / DSMX with full range telemetry. The receiver has an integrated barometric sensor that measures height and vario. Pair button, for registration and update via any micro USB cable and Spektrum Programmer application.

AR10100T receiver features

• Compatible with all Spektrum DSM2 and DSMX transmitters
• The compact dimensions of the receiver are suitable for most parkflyer models, sports and large models
• It has full range telemetry, an integrated barometer for providing telemetry data on altitude and vario
• VOLT, RPM and TEMP telemetry ports can be used with traditional Spektrum telemetry sensors
• XBUS telemetry port for expandable telemetry options such as GPS, speed, flight battery voltage and more
• The Bind button allows for easy pairing and eliminates the use of a pairing connector
• Two external antennas ensure safe coverage of the RF signal from all angles of the aircraft
• Additional RF signal redundancy with up to 2 additional SRXL2, SPM9747 or SPM4651T remote receivers, sold separately
• Ready to use with the Spektrum Smart controller for single-wire telemetry data without the need for additional sensors
• Forward Programming can set individual failsafe parameters for each SmartSafe Hold and Hold Last channel
• Micro USB port for updating firmware and sharing model settings using the Spektrum PC Programmer application

SMART telemetry

The AR10360T receiver together with the Avian controller and SMART battery offers a complete solution for transmitting telemetry data to a compatible transmitter. Important telemetry data, such as current, voltage, temperature and speed, are sent directly to your transmitter in real time.

INTEGRATED BAROMETER

The Spektrum ™ AR10100T receiver is equipped with an integrated barometer (built-in pressure sensor) that provides altitude and vario telemetry data to your Spektrum transmitter with telemetry support without the need to purchase additional sensors.

We recommend buying

The Spectrum receiver optional DSMX SRXL2 or the Spectrum receiver Serial SRXL2 with telemetry can be connected to the AR10360T receiver.
