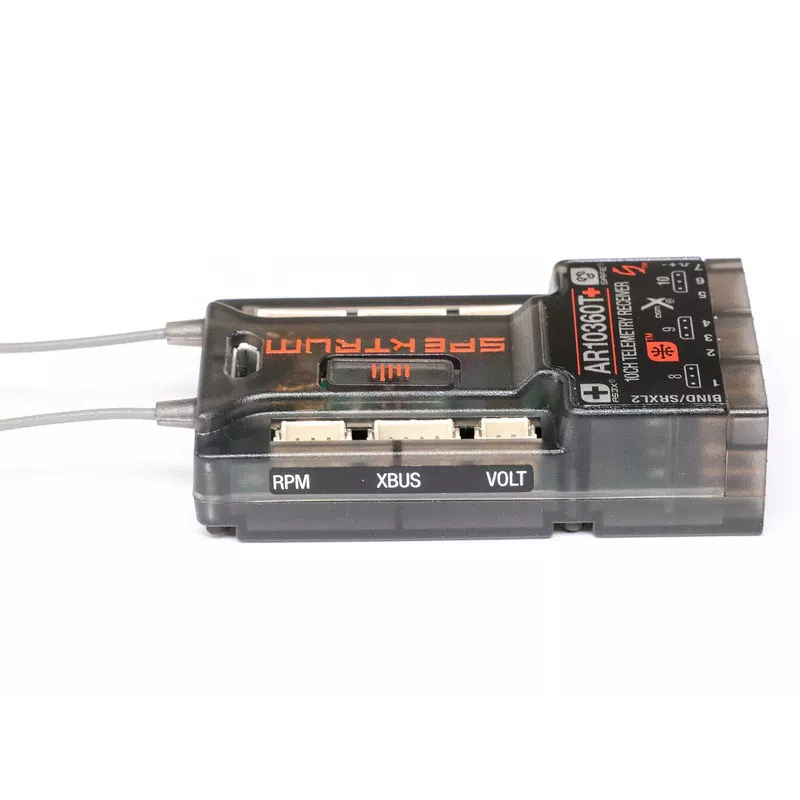

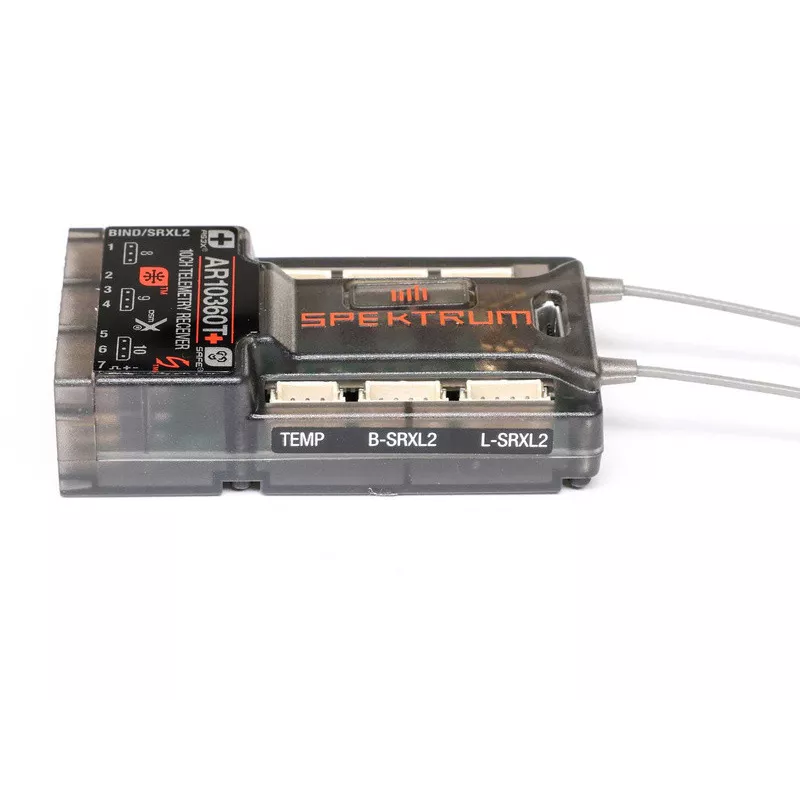

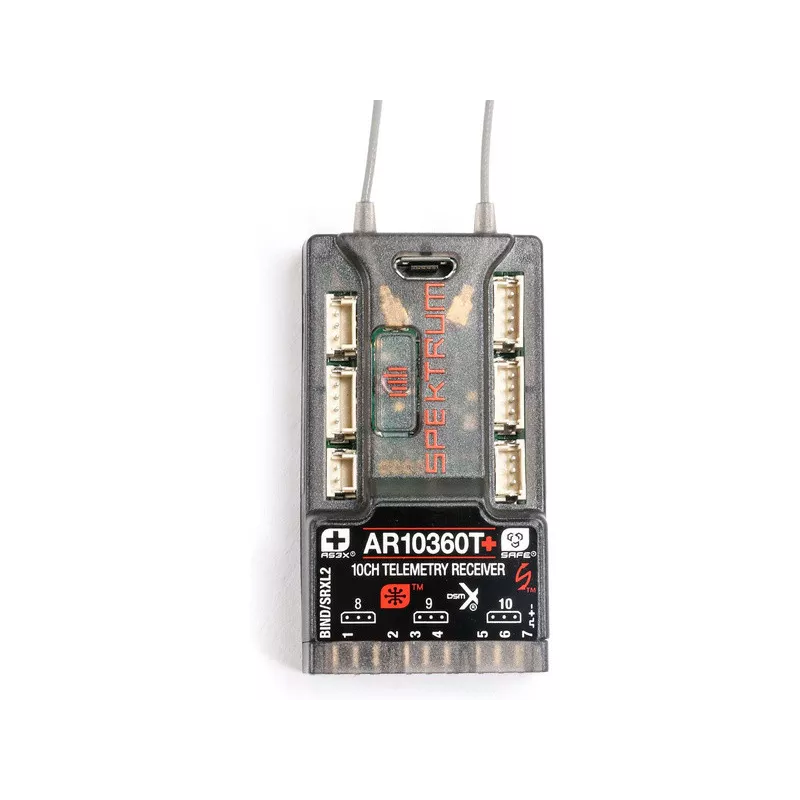

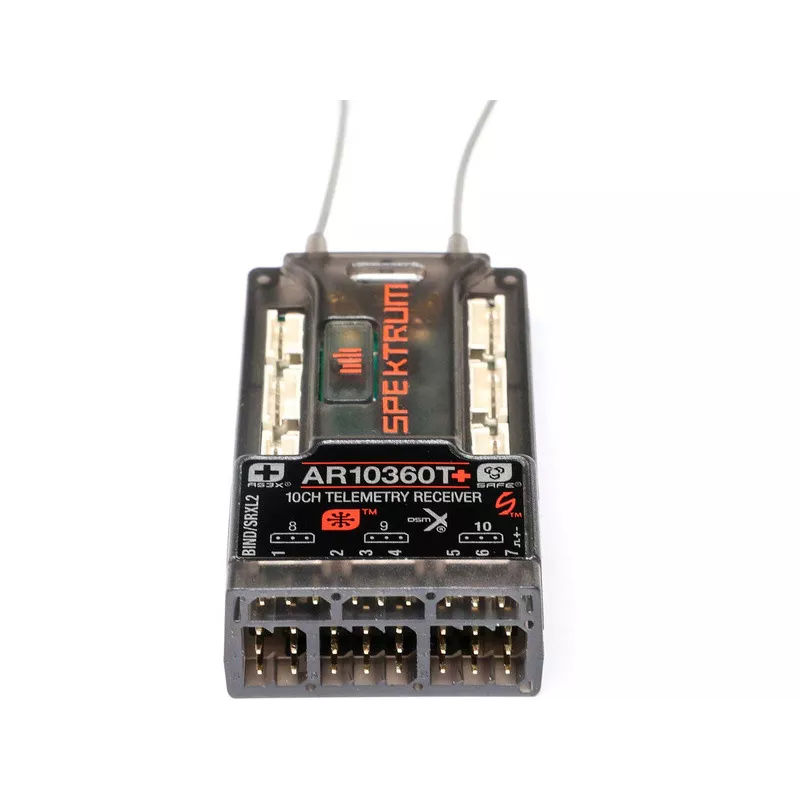

Spektrum receiver AR10360T+ 10CH AS3X+ with telemetry

Package contents

The package contains a 10-channel Spektrum AR10360T+ RC receiver, a cable for measuring external voltage, instructions in Czech, a multilingual manual in EN, DE, FR and IT.

Characteristics

The Spektrum AR10360T+ AS3X+/SAFE 10-Channel Aerial RC Receiver with full-range telemetry and faster MEMS gyro response suppresses the effects of wind, turbulence. The receiver has an integrated barometric sensor that measures height and vario. Easy pairing with the pairing button, micro USB connector for firmware updates or uploading settings with the Spektrum Programmer app. The all-new AS3X+ stabilization algorithm has high sensor accuracy, data transfer speed, and provides pilots with a generationally different feel compared to the original AS3X 3-axis stabilization version. There is no delay in control response, you will simply feel that you are flying a precisely tuned model.

The AR10360T+ features full range telemetry and an integrated barometer that provides altitude and vario telemetry data. The XBUS, speed, voltage and temperature ports can be used to add additional telemetry sensors that are available separately. It also includes two SRXL2 ports for remote SRXL2 receivers (SPM9747 or SPM4651T), which are available separately, to add additional RF path redundancy. The SRXL2/Bind/Program/Batt servo connector is available to connect smart devices, program and update the receiver, interface with a traditional bind connector, or connect a battery. The AR10360T+ also features a button for easy pairing and features SmartSafe™ and Hold Last technology, as well as a preset Failsafe set via Forward programming. In addition, Smart Model Files allows BNF models to be stored in the receiver to automatically set the model after pairing. The AR10360T+ also has a Micro USB connection for easy registration and updating using any micro USB cable using the Spektrum PC Programmer.

Features of the Spektrum AR10360T+ RC receiver

•

• Compatible with all Spektrum DSM2 and DSMX airborne transmitters

• AS3X+ and SAFE integrated stabilization system with flight envelope protection. Setup using Forward Programming

• Fully adjustable Fail-Safe and frame rates using the Forward Programming menu in the Spektrum transmitter

• The compact dimensions of the receiver are suitable for most parkflyer models, sports and large RC models

• It has full range telemetry, an integrated barometer to provide altitude telemetry and vario

• The VOLT, RPM and TEMP telemetry ports can be used with traditional Spektrum telemetry sensors

• XBUS telemetry port for expandable telemetry options such as GPS, speed and more

• The Bind button allows for easy pairing and eliminates the use of a pairing connector. However, the pairing connector can still be used

• Two external antennas ensure safe coverage of the RF signal from all angles of the aircraft

• Additional RF signal redundancy with up to 2 additional SRXL2 remote receivers, SPM9747 or SPM4651T, sold separately

• Compatible with Spektrum Smart controllers


New features of AS3X+

•

• Stop Lock and Release Rate parameters

• Heading Hold improvements

• Improved gryo filtering

• Canard and thrust vectoring support


Note: It is not recommended to use the receiver on models with combustion turbines.

New generation AS3X+

The Spektrum AR10360T+ RC receiver contains a three-axis MEMS gyro and accelerometer, and thanks to electronic stabilization, control of the model is simplified, for example in windy weather. The system is easier to tune and can be easily optimized for any type of aircraft. AS3X+ brings more confidence in driving.

Support for models in the receiver's memory

Smart Transmitter Model Files is a new feature on the AR10360T+ receiver that makes transmitter programming the easiest. It consists of a set of transmitter configuration parameters that are stored in a receiver model file. During pairing, the user is prompted to download the specified model file and overwrite the currently selected transmitter model. Note: iX20, iX14 and NX transmitters are currently supported with the latest firmware updates.

SAFE technology

Thanks to the SAFE Select technology used, even a less experienced pilot can control the aircraft models. The SAFE system prevents oversteer when cornering and also limits climbs and descents. Simply releasing the controller's control sticks will return the model to level flight. These functions will be appreciated especially by novice pilots who are not yet fully confident in driving the models. The feature is optional and can be turned off.

Forward Programming

You can set up the Spektrum AR10360T+ RC receiver wirelessly, directly from a compatible Spektrum transmitter, using the Forward Programming menu. No other device such as a computer or mobile device is needed to set up and edit. Set all necessary AS3X and SAFE parameters as well as individual SAFE parameters.

Micro USB port

The Spektrum AR10360T+ RC receiver is equipped with a practical Micro USB connector for updating and sharing model settings. Using a regular micro USB cable (not included) and the latest version of the Spektrum Programmer app, firmware can be updated or receiver settings can be exported or imported.

SMART telemetry

A complete solution for transmitting telemetry data to a compatible transmitter is offered by the AR10360T+ receiver together with the Avian controller and the SMART battery. Important telemetry data such as current, voltage, temperature and rpm are sent directly to your transmitter in real time.

Panic function

If you lose your orientation, you can use the Panic rescue button, which will put the model into horizontal flight. You will then be able to return to driving the model again. This feature is fully programmable and customizable using the Forward Programming menu on a compatible Spektrum transmitter.

We recommend to buy

Up to 2 additional SRXL2 receivers (order numbers SPM9747 or SPM4651T) can be connected to the Spektrum AR10360T RC receiver. We recommend this option when using the receiver in larger models or with composite materials.
