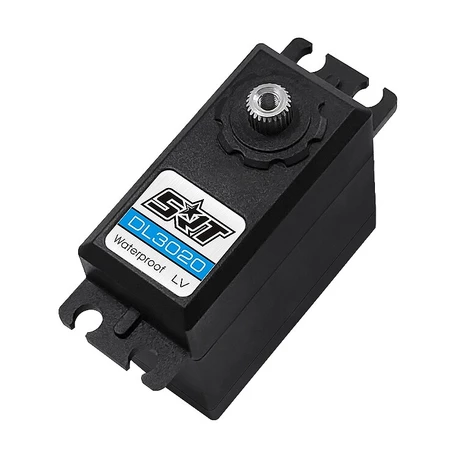

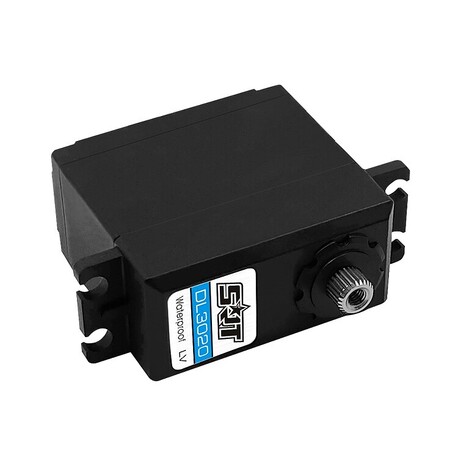

DL3020 DC WATERPROOF DC Digital servo (20 kg-0.11s/60°)

SRT-DL3020N
SRT
Digital standard servo with DC motor and metal gears.
More info
In stock at the store: 4 pcs
In stock - main warehouse: > 10 pcs
Dates of delivery
Recommended retail price
23.61 €
Your price with VAT
()
19.51 €
Price without VAT
19.51 €

  • Did you find a better price?

    • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee



    SRT DL3020

    The WATERPROOF generation DL DC (direct current motor) servo DL3020 designed for recreational modelers with speeds up to 0.11s and 20kg/cm thrust/torque. The servo uses a composite housing to achieve lower weight, while the DC motor and metal gears ensure high performance and durability. The servo is equipped with a JR connector with a length of 250 mm in black.

    Properties

    • Ideal for 1/10 scale Off-Road (Monster, Truggy, Rally) and 1/8 Off-Road (Buggy) cars, 1/10 On-Road cars and boats
    • NMB two main bearings
    • Waterproof IP 67 (guarantee of operation at a depth of up to 1 meter for 30 minutes)
    • 25 tooth output shaft
    • 2 µsec Dead Band

    SPECIFICATIONS

    • Type: Digital - WATERPROOF
    • Bearing: 2BB
    • Motor type: DC
    • Gearbox type: metal
    • Gearbox material: copper & aluminum
    • Control system: pulse width regulation
    • Operating frequency: 1520µs / 330hz
    • Operating voltage: DC 4.8 - 6V
    • Operating temperature range: -10 to +60 degrees
    • Operating speed (4.8V): 0.13s / 60 degrees without load
    • Operating speed (6.0V): 0.11s / 60 degrees without load
    • Towing load (4.8V): 18.0kg.cm
    • Thrust/Torque (6.0V): 20.0kg.cm
    • Potentiometer drive: direct drive
    • Dimensions: 40.7 x 20.5 x 39.5 mm
    • Weight: 56.0g
    • Wire connector length: JR 250mm
