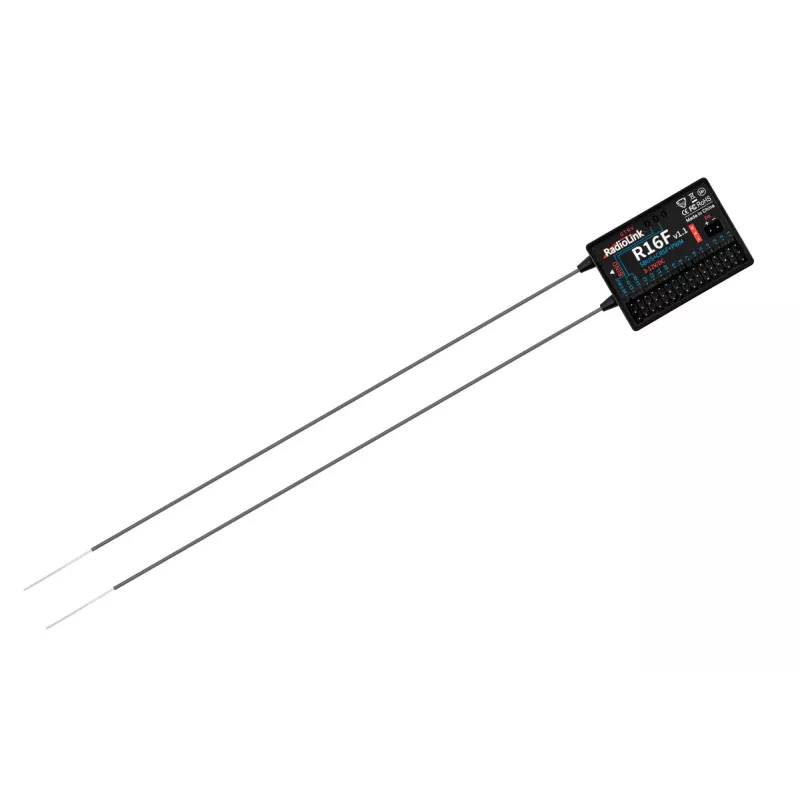

R16F receiver

The Radiolink R16F 2.4GHz is a 16-channel FHSS frequency hopping receiver with telemetry compatible with the Radiolink T12D and T16D transmitters. It offers four operating modes:

• with standard PWM signal servo outputs (16 PWM channels on outputs CH1-16)
• with S.BUS serial output and PWM channels (15 PWM channels on outputs CH1–15 + S.BUS on CH16)

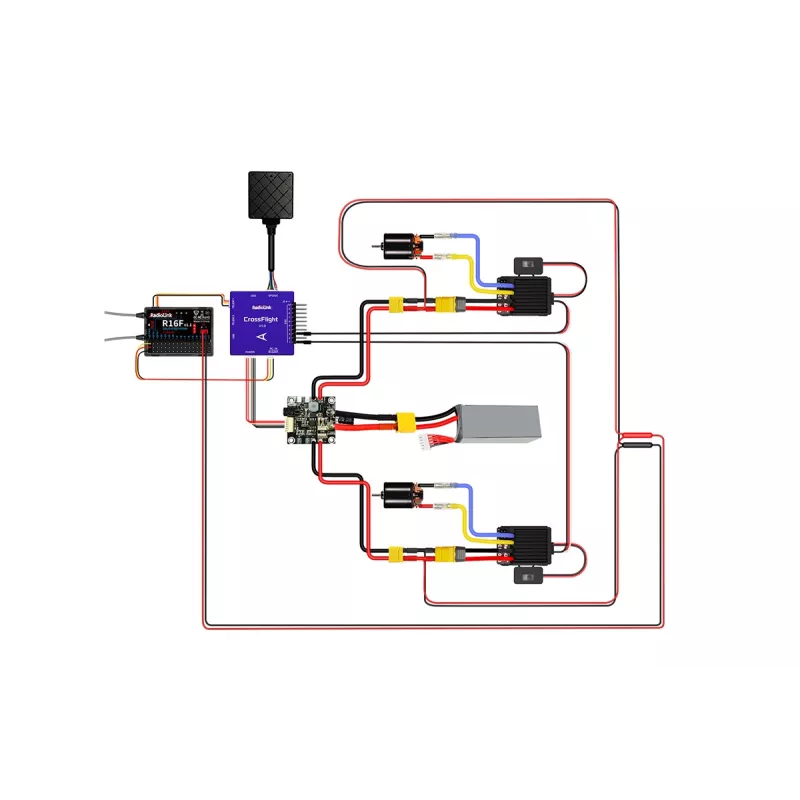

• with S.BUS serial output, CRSF input and output and PWM channels (13 PWM channels on outputs CH1–13 +CRSF (RX) on CH14/CRSF (TX) on CH15 + S.BUS on CH16)
• with CRSF input and output and PWM channels (14 PWM channels on outputs CH1–13 and CH16 +CRSF (RX) on CH14/CRSF (TX) on CH15)

The use of FHSS transmission technology provides high resistance to interference and the ability to set emergency deviations (fail-safe) in the event of a failure or strong interference of the transmitter signal.

Pairing with the transmitter is done using the pairing button on the receiver, operating states are indicated by an LED indicator.

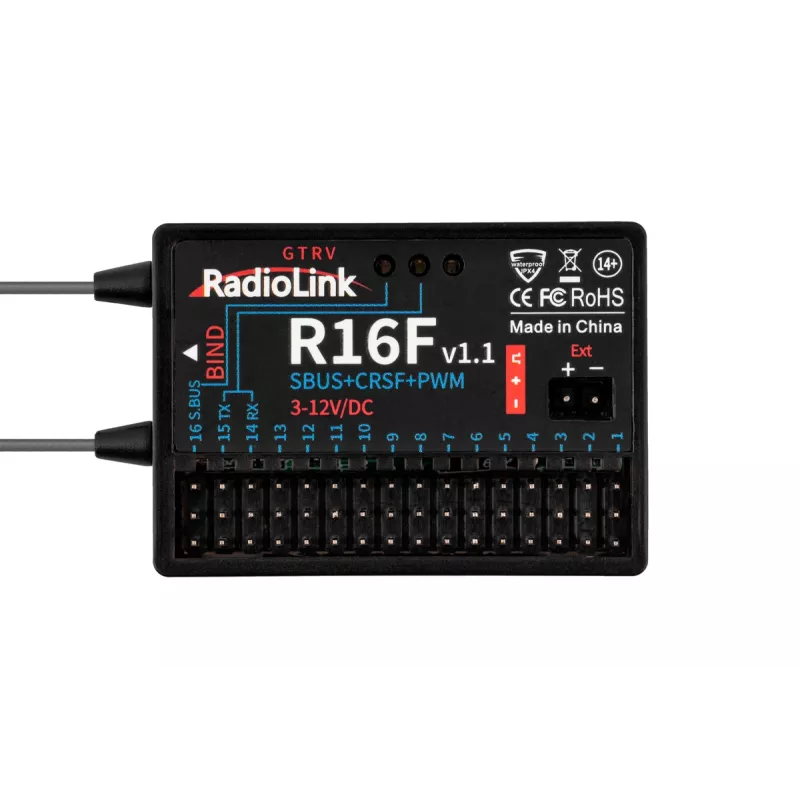

The receiver is equipped with contact strips for standard UNI connectors (=JR/Graupner, Hitec, Futaba); the terminals are oriented in the direction of the longitudinal axis of the receiver.

The receiver enables the transmission of basic telemetry data - receiver supply voltage, received signal strength (RSSI) and external (e.g. drive) battery voltage in the range of 3–33.6 V (1–8S LiPo). When using the Radiolink control unit, it can also transmit other telemetry data from the control unit to the T12D or T16D transmitter.

The operating voltage range of 3–12 V allows operation with power from 1–2S LiPo/Li-ion, 2S LiFe, 4-8 cell NiMH or 5–12 V BEC stabilizers.

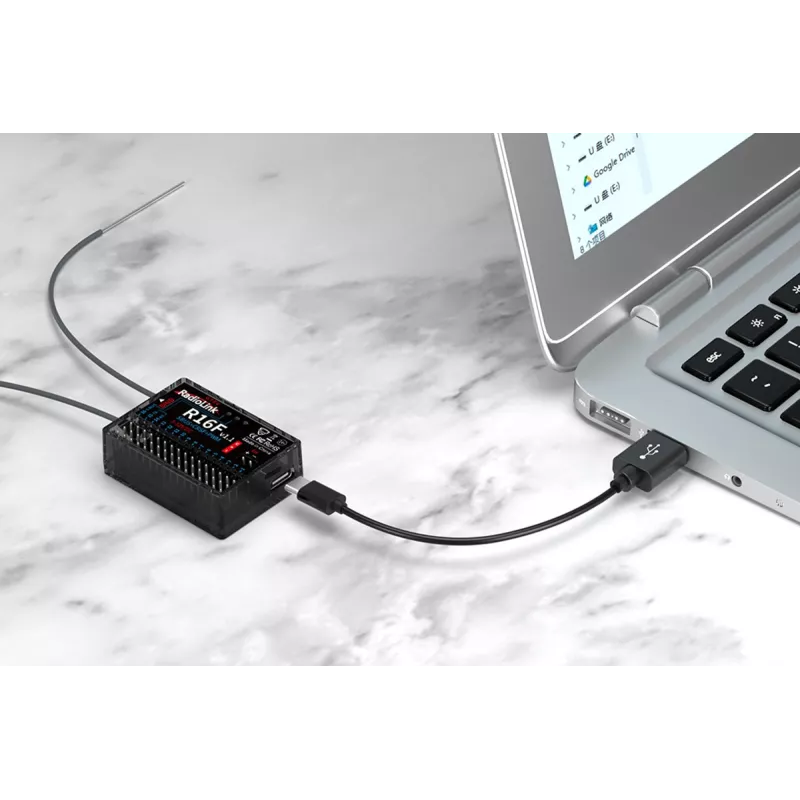

The receiver has updatable firmware (via USB-C socket).

The receiver kit includes: R16F receiver, instructions.
