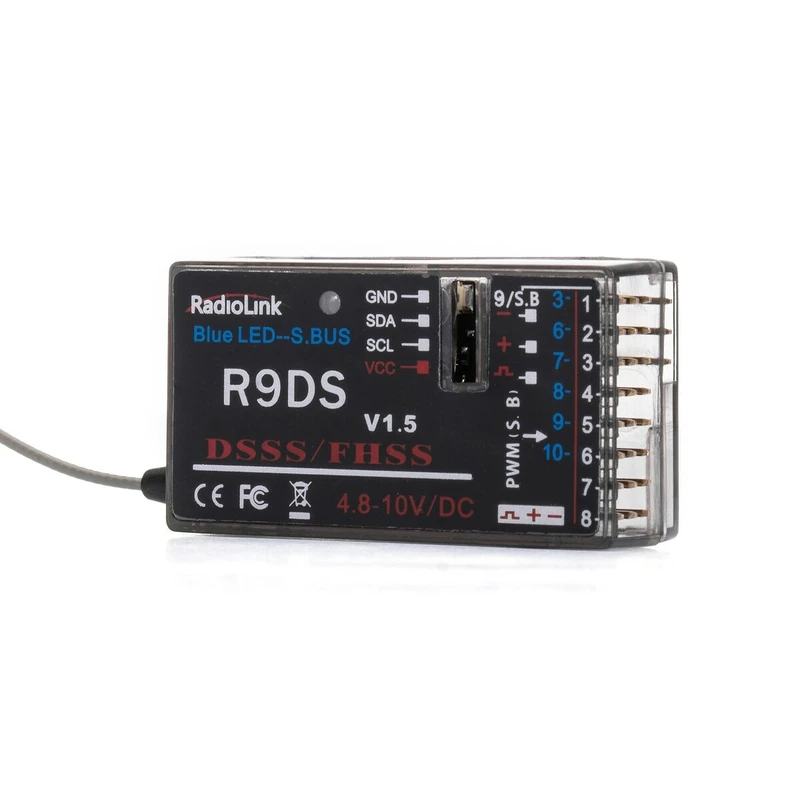

Radiolink R9DS 2.4GHz is a 9-channel telemetry receiver with DSSS and FHSS frequency hopping compatible with Radiolink AT9, AT 9S, AT10 and AT10II transmitters (AT10II must be switched to 10CH). The R9DS offers PWM signal output (9 channels) or S-BUS serial (10 channels). The receiver is compatible with the PRM-01 and PRM-02 telemetry modules.
It offers two operating modes - with standard width modulated (PWM) signal servo outputs (9 channels) or with S-BUS serial output (10 channels).
The receiver is suitable for RC models of all kinds (manufacturer's range is 900 m on the ground and 2000-3000 m in the air).
The use of DSSS / FHSS transmission technology delivers high interference immunity and fail-safe capability in case of power failure or strong interference.
Operating modes
The pairing with the transmitter is done with the help of a pairing button on the receiver, the operating states are indicated by an LED.
The receiver is equipped with contact strips for standard UNI connectors (= JR / Graupner, Hitec, Futaba); the outlets are oriented in the direction of the longitudinal axis of the receiver.
The receiver set includes: R9DS receiver, instructions.
| Modulation / Encoding | 2.4GHz FHSS / DSSS |
| Number of Channels (PWM) - (S-BUS) | 9-10 |
| Serial output | S-BUS |
| Function | Fail-safe |
| Power supply | 4.8 V, 6V, 7.2V, 7.4V |
| Unserved [mA] | 40-180 |
| Length [mm] | 43 |
| Width [mm] | 24 |
| Height [mm] | 15 |
| Weight [g] | 14 |
