R8FM Mini receiver

1RL0044
Eight-channel miniature 2.4GHz FHSS receiver for Radiolink T8FB transmitters with switchable S-BUS or PPM serial output. Ideal for multicopters. Dimensions 16.21.5x5.5mm, 2.5g. Limited reach.
More info
In stock - main warehouse: 5 pcs
Delivery options
Recommended retail price
15.28 €
Your price with VAT
()
12.63 €
Price without VAT
12.63 €

  • Did you find a better price?

    • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee

    Recommended for you

    Obrázek
    Last items in stock
    6 to 12 channels

    Futaba R2006GS S-FHSS / FHSS 6k receiver

    FUTABA
    FUT5102515
    Six-channel receiver Futaba S-FHSS / FHSS-2.4GHz for general use. Power supply 4.8-7.4 V, dimensions 43.1x25.0x8.8 mm, weight 8.5 g. Diversity antennas.
    In stock - main warehouse
    37.30 €
    In stock - main warehouse
    Obrázek
    6 to 12 channels

    Futaba R2106GF S-FHSS / FHSS 6k micro receiver

    FUTABA
    FUT5102525
    Small and light six-channel Futaba S-FHSS-2.4GHz receiver for RC slow-flyers and parkflyers. Power supply 4.8-7.4 V, dimensions 21.5x38.8x10.7 mm, weight 4.5 g. Limited range.
    In stock - main warehouse
    34.19 €
    In stock - main warehouse
    Obrázek Obrázek 2
    6 to 12 channels

    MAXIMA 9 receiver

    1HI27525
    Miniature nine-channel 2.4GHz receiver with high transmission speed with full range. Weight 6.5 g, without telemetry. Power supply 3.7-9.0 V. ONLY for AURORA 9X, Flash 7/8 and DIGITAL SERVO.
    In stock at the store
    34.19 €
    In stock at the store
    Obrázek Obrázek 2
    6 to 12 channels

    KAVAN R6L Stabi receiver

    Kavan
    KAV18.10006SL
    Compact lightweight six-channel telemetry 2.4GHz ACCESS receiver with built-in stabilization and S.BUS input and output ports (up to 24 channels). Smart automatic pairing. Wireless firmware updates. Telemetry configuration. Weight 5.6 g; dimensions 45
    In stock - main warehouse
    32.48 €
    In stock - main warehouse
    Obrázek Obrázek 2
    6 to 12 channels

    R12DS receiver

    RadioLink
    1RL0050
    Twelve-channel 2.4GHz FHSS/DSSS telemetry receiver for Radiolink AT9S and AT10II transmitters. PWM operating mode: 11 individual servo channel outputs. S-BUS operating mode: S-BUS serial output + 10x PWM channels (total 12 channels). Dimensions...
    In stock - main warehouse
    31.45 €
    In stock - main warehouse
    Obrázek
    6 to 12 channels

    Futaba R3106GF T-FHSS 6k receiver (mono)

    FUTABA
    FUT5102641
    Light six-channel Futaba T-FHSS Air-2.4GHz receiver without teelmetry. Power supply 4.8-7.4 V, dimensions 43.1x25.0x8.8 mm, weight 7.8 g.
    In stock - main warehouse
    30.42 €
    In stock - main warehouse
    Obrázek
    6 to 12 channels

    R9DS receiver

    1RL0048
    Nine-channel 2.4GHz FHSS/DSSS telemetry receiver for Radiolink AT9S and AT10II transmitters. PWM operating mode: 9 individual servo channel outputs. S-BUS operating mode: S-BUS serial output + 6x PWM channels (total 10 channels). Dimensions 43x24x15mm,...
    In stock - main warehouse
    24.95 €
    In stock - main warehouse
    Obrázek Obrázek 2
    Last items in stock
    6 to 12 channels

    R12DSM Mini receiver

    RadioLink
    1RL0052
    Twelve-channel miniature 2.4GHz FHSS / DSSS receiver for Radiolink AT9S and AT10II transmitters with switchable S-BUS or PPM serial output. Ideal for multicopters. Dimensions 30x15x5mm, 2.5g. Full range.
    In stock at the store
    23.92 €
    In stock at the store
    Obrázek Obrázek 2
    6 to 12 channels

    R6DSM Mini receiver

    1RL0042
    Miniature ten-channel 2.4GHz FHSS / DSSS receiver for Radiolink AT9S and AT10II transmitters with switchable S-BUS or PPM serial output. Dimensions 15x13x5mm, 1g. Limited reach.
    In stock - main warehouse
    17.76 €
    In stock - main warehouse
    Obrázek Obrázek 2
    5 channels

    GR-10C HoTT receiver for copters/drones

    Graupner/SJ
    S1029
    Five-channel 2.4GHz receiver with built-in gyro for racing copters and drones. Technical parameters: temperature range -15 .. 70°C, 1x antenna 30mm, weight 7g, range approx. 300m, dimensions 35 x 27 x 12 mm, modulation 2.4GHz FHSS.
    In stock - main warehouse
    11.94 €
    In stock - main warehouse

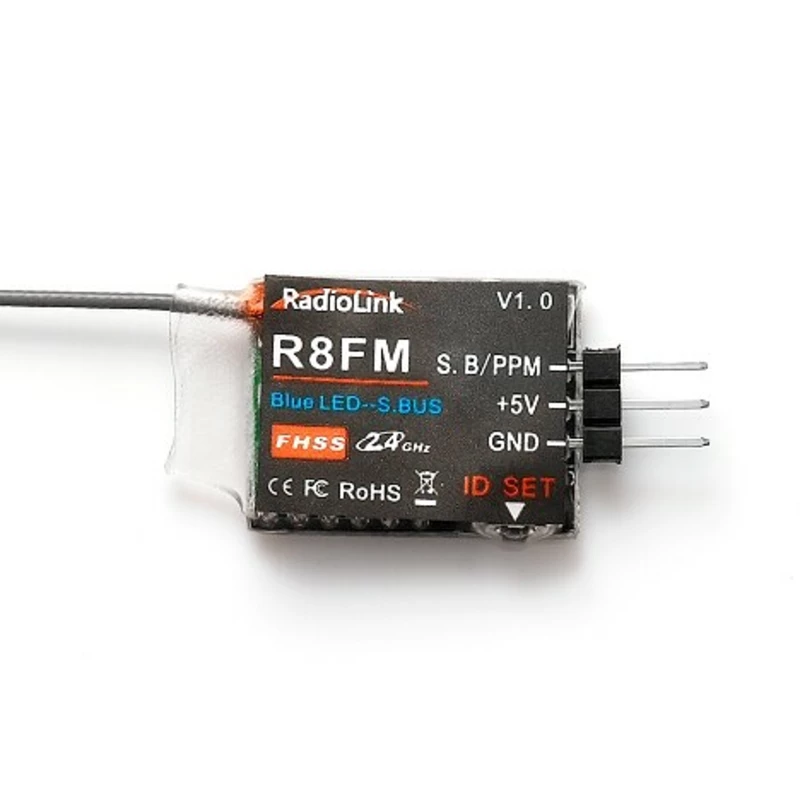

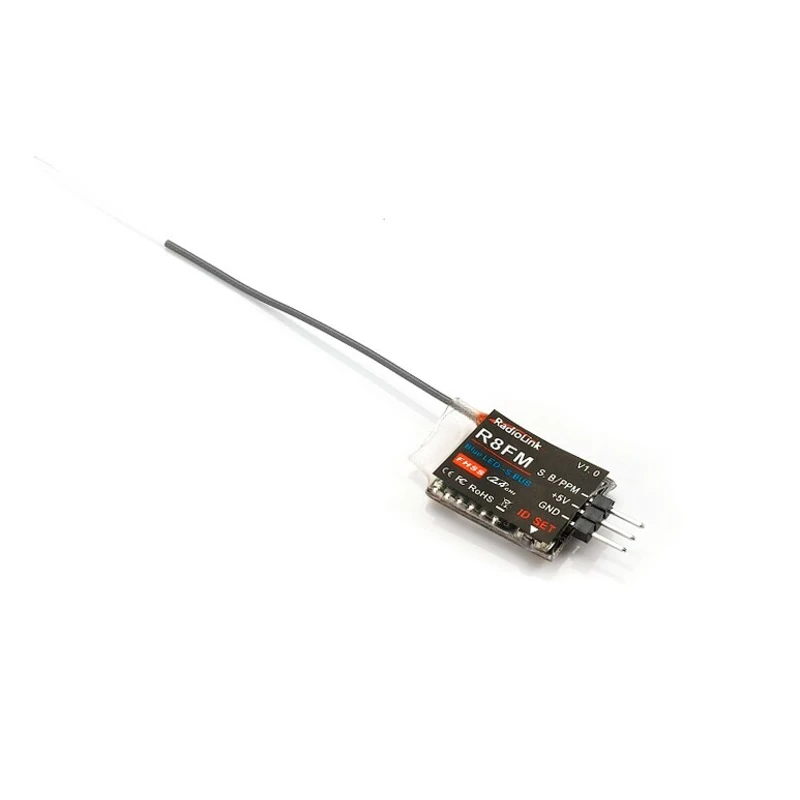

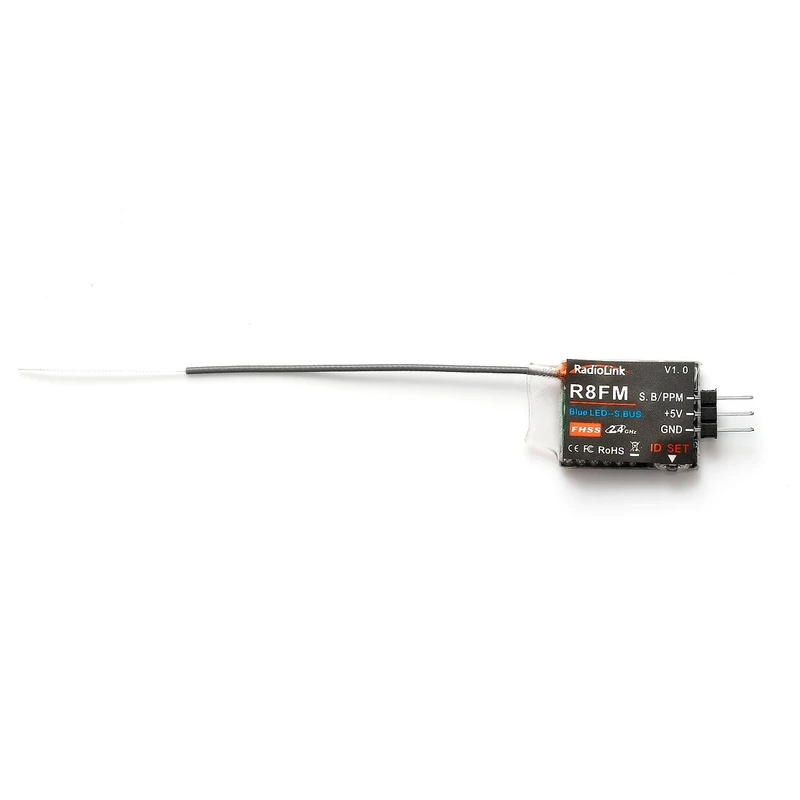

    Radiolink R8FM 2.4GHz is a miniature 8-channel frequency hopper FHSS compatible with Radiolink T8FB transmitters. The R8FM offers a switchable S-BUS or PPM serial signal output (8 channels).

    The receiver is suitable for multicopters and race drones (the manufacturer's range is 300 m on the ground and 600 m in the air).

    The use of FHSS transmission technology delivers high interference immunity and fail-safe capability in case of power failure or strong interference.

    Operating modes

    • With PPM serial output: The red LED indicates PPM serial signal output, a total of 8 channels.
    • With SBUS serial output: The blue / purple LED signals the SBUS serial signal output, a total of 8 channels.

    The pairing with the transmitter is done with the help of a pairing button on the receiver, the operating states are indicated by an LED.

    The receiver is equipped with contact strips for standard UNI connectors (= JR / Graupner, Hitec, Futaba); the outlets are oriented in the direction of the longitudinal axis of the receiver.

    The receiver set includes: R8FM receiver, instructions.

    Modulation / Encoding 2.4GHz FHSS
    Number of Channels (S-BUS / PPM) 8
    Serial output PPM, S-BUS
    Function Fail-safe
    Power supply 4.8V, 6V
    Unserved [mA] 30
    Length [mm] 21.5
    Width [mm] 16
    Height [mm] 5.5
    Weight [g] 2.5
    Napájení
    4,8 V,6 V,3,6 V,3,7 V
    Funkce
    Fail-safe
    Délka [mm]
    21.5
    Hmotnost [g]
    2.5
    Šířka [mm]
    16
    Výška [mm]
    5.5
    Modulace/Kódování
    2.4GHz FHSS
    Sériový výstup
    PPM,S-BUS
    Odběr bez serv [mA]
    30
    Počet kanálů (S-BUS/PPM)
    8
