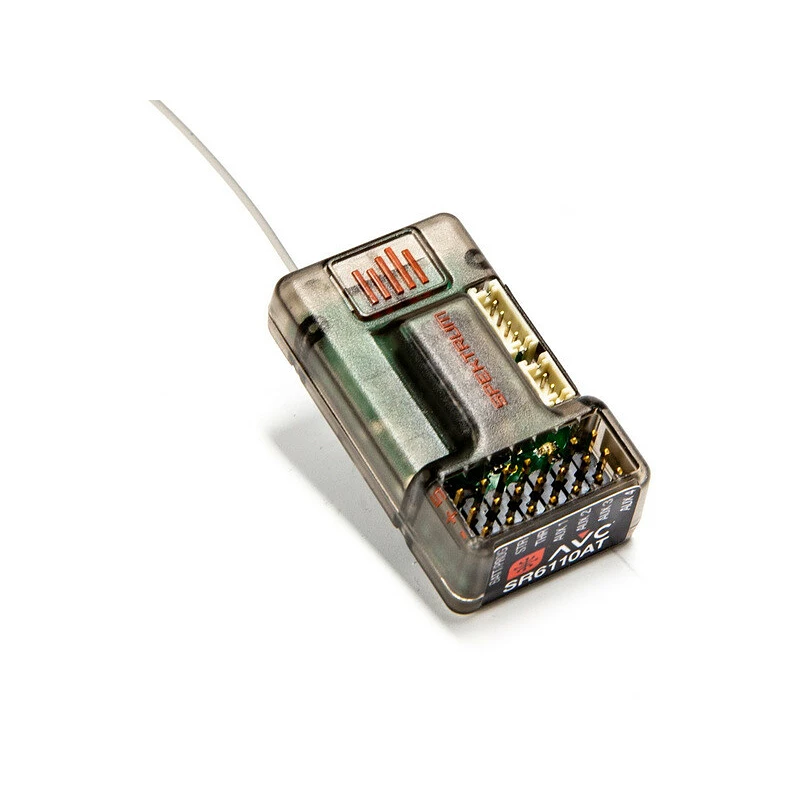

Spectrum receiver SR6110AT DSMR 6CH AVC with telemetry

Package contents

The package contains RC receiver Spektrum SR6110AT, cable for measuring external voltage, instructions for use in English, German, French, Italian and Czech.

Characteristics

New 6-channel RC receiver Spektrum SR6110AT with DSM2 / DSMR modulation for RC car and boat models. It has excellent range and response, especially in places where there are multiple systems operating in the 2.4 GHz band. The receiver is equipped with a patented Spectrum AVC (Active Vehicle Control) system and full telemetry range (the receiver uses the maximum allowed transmission power of 100 mW EIRP). The AVC stabilization system corrects the direction of travel of your car model and makes immediate, quick, appropriate corrections so that the model does not deviate from the desired direction. The RC receiver Spektrum SR6110AT supports the Spektrum Smart technology - it communicates with the Spektrum Smart FIRMA electronic controllers and transmits telemetry without sensors. For installation in ships, it has a long antenna of 228 mm , which allows you to raise the antenna above the surface. The printed circuit board has a "Realkote" moisture protection varnish.

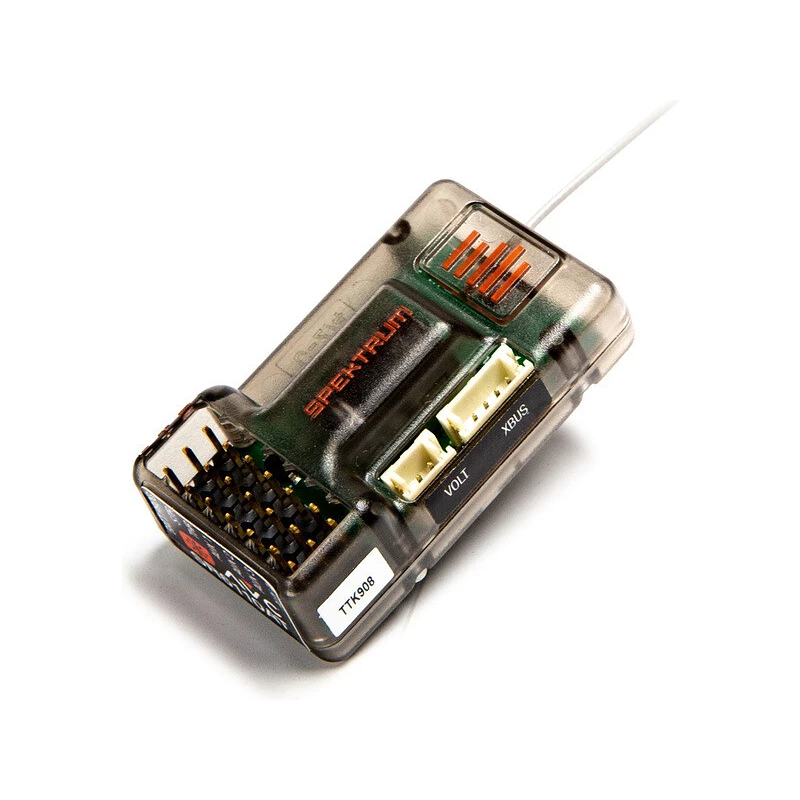

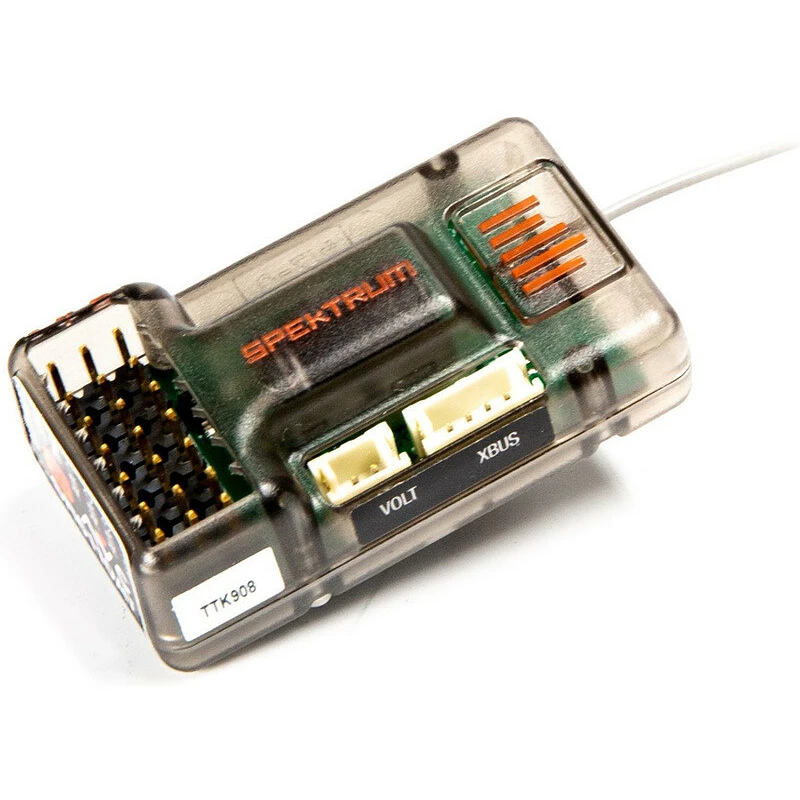

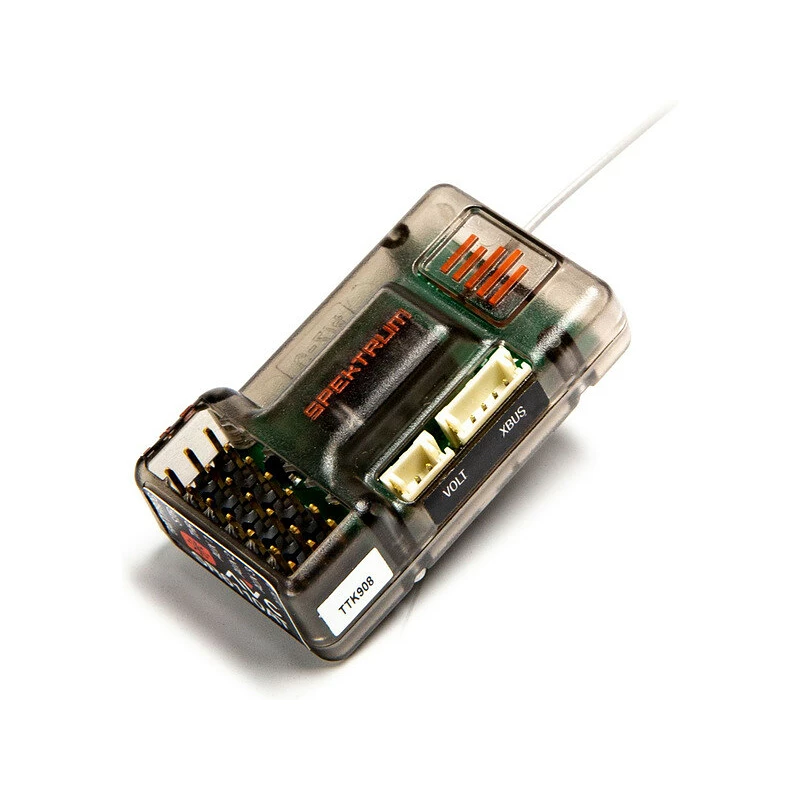

The receiver is also equipped with a VOLT input for voltage measurement and an XBUS input for connecting sensors.

The receiver supports Spektrum Smart controllers. The receiver will automatically read the telemetry data from the controller and transmit it to the transmitter. The receiver is, of course, backward compatible with conventional controllers. If the receiver does not detect the Smart controller on channel 2, a standard PWM signal will appear on the output.

Features of the RC Spectrum SR6110AT receiver

• Compact 6-channel RC receiver with DSM2 / DSMR modulation.
• It supports Spektrum Smart technology - the receiver can read telemetry data from the controller
• Great for models that use AVC technology, free channels can be used for lights and other functions
• AVC settings are made using the transmitter. If necessary, the AVC system can be switched off
• The electronics of the receiver are protected by a special varnish, which prevents the access of moisture or dirt
• Use a 32-bit microcontroller with an ARM Cortex M4 core
• Possibility to update the firmware using the SPMA3065 cable
• Compatible with all Spektrum DSM2 and DSMR modulated steering wheel transmitters
• The antenna is connected to a standard coaxial connector, when replacing it is enough to connect the antenna connector
• Thanks to the transmission power of 100 mW EIRP, a great telemetry range is ensured
• Antenna length 228mm
