The package contains a completely assembled RC model of the Arrma Felony Street Bash All-Road Muscle Truck 1: 7 4WD 6S BLX with the Spektrum® Firma ™ 150A Smart controller installed, the Spektrum® Firma ™ 4074 2050Kv AC motor, the ARRMA® ADS-15M WP steering servo. Steering wheel RC set Spektrum® DX3 ™ DSMR® 2.4GHz with AVC receiver SR6110AT. The package also contains a shorting jumper IC5 for the possibility of using only one battery, replaceable accessories and decals, instructions for use in English, German, French, Italian and Czech.

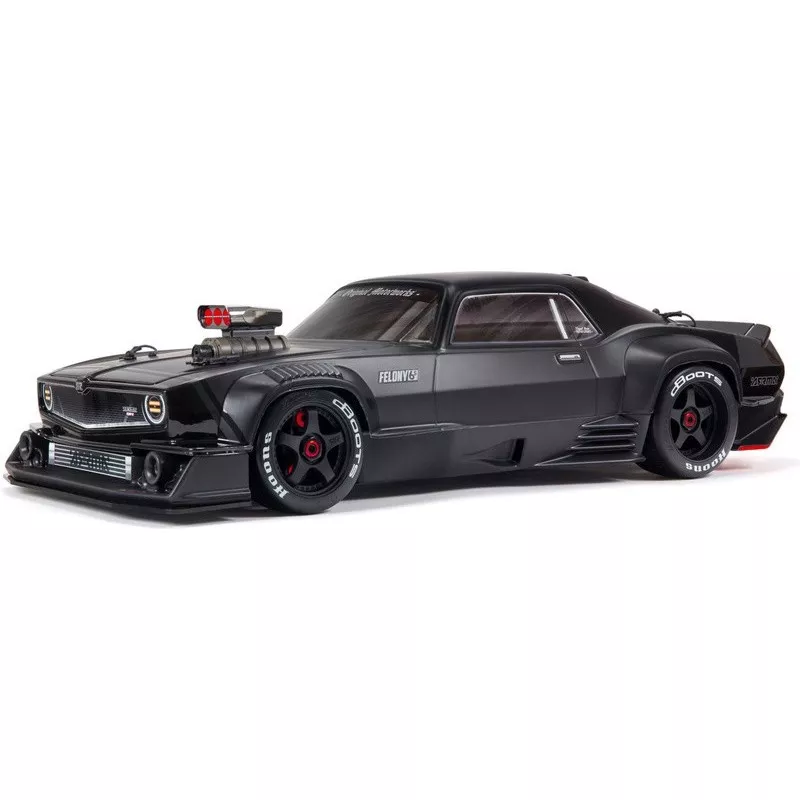

The RC model car Arrma Felony 6S BLX 4WD in a scale of 1: 7 is a bloated American supercar, which can travel at a speed of more than 120 km per hour! Aluminum chassis, steel gears and shafts, aluminum towers and dampers, Spektrum® DX3 transmitter, SR6110AT receiver with AVC technology and telemetry.
Big, fast and rough is the FELONY 6S BLX 4WD, it rides on all roads, in all conditions also on gravel, asphalt, unpaved roads and short grass. It is a classic truck for street bashing. Body in the style of a classic muscular wrecker resto-mod in black or orange. Impressive, realistic 5-spoke discs on which dBoots® Hoons silniční road tires are mounted. The front bumper contributes favorably to the car's aerodynamics, which favorably leads to even downforce and thus enables a faster and more reliable ride.

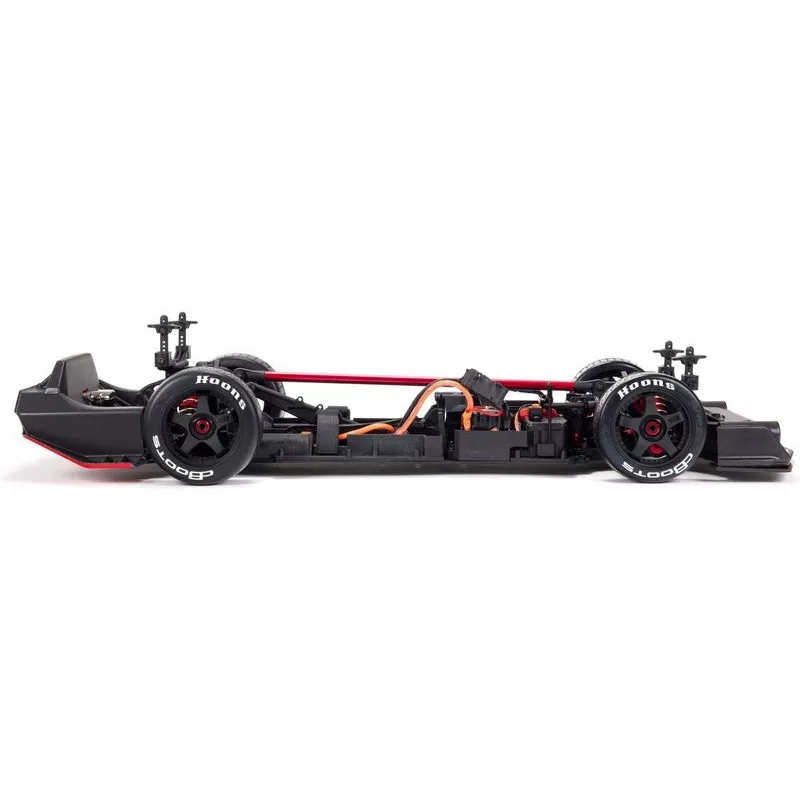

The base is a chassis, which consists of a 3mm anodized aluminum chassis with central reinforcement to increase strength and rigidity. The high-performance 4X4 drive is equipped with durable steel drive shafts and all-metal differentials. The central gearbox can be removed by removing only five screws, significantly speeding up service. The sliding rail of the engine bed allows quick and easy access to the engine. Large bumpers, oil dampers on the black anodized front and rear towers keep dBoots® Hoons tires firmly seated on the track. The tires are mounted on 5-spoke discs with extremely durable hubs.
The RC model car Felone 6S BLX is powered by an AC motor Spektrum® Firma ™ 4074 2050Kv, waterproof * regulator Spektrum® Firma ™ 150A and servo ADS-15M. The Spektrum ™ DX3 RC kit is equipped with the AVC® Active Vehicle Control ™ (electronic stabilization) function, which you will need for fast driving, sharp turns or jumps without having to accelerate. For commissioning, you can add two 2S or 3S LiPol drive batteries with IC5 ™ or EC5 ™ connectors, a LiPol-compatible charger and 4 AA batteries for the transmitter.
Spektrum® Firma ™ Smart komponenty components are integrated in the model. If you use a pair of LiPol SMART batteries, you can monitor the voltage status on the transmitter with an LED. What's more, if you use a compatible higher Spectrum transmitter with display, you will have additional telemetry data, such as engine speed, controller temperature, receiver voltage (BEC), real-time drive battery voltage.

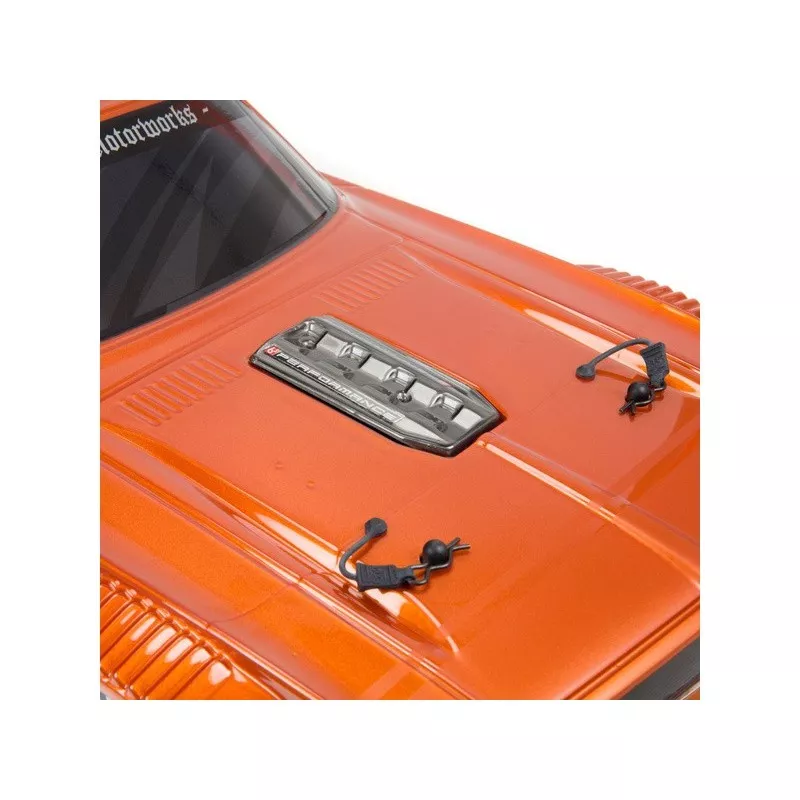

A typical representative of the American inflated road crash style is the Resto Mod body with distinctive front spoilers, distinctive engine intake and a large rear pressure wing.
With the accessories included in the package, you can improve your supercharged machine with intake, carburetor, radiator, turbo and more.

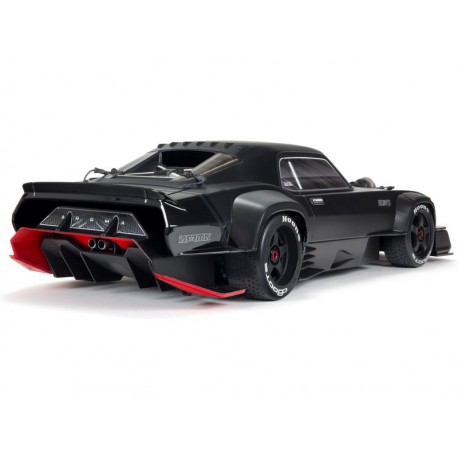

A car driving at high speed must have auxiliary aerodynamic elements installed on the body. The basic one is the pressure wing of the rear cover, which you can tune as needed.
The entire front bumper is designed with regard to the effective aerodynamic action of the body as an optimal pressure body, which ensures contact with the ground and good adhesion of tires on the road.
DBoots® HOONS 100mm tires are designed for extreme driving on the road and in the field, they are mounted on 5-spoke discs with a diameter of 83 mm.
The larger diameter and width of the rear tires contribute to the driving style of the Resto-Mod Muscle Trucks. The front and rear gear ratios are adapted to the size of the tires. In order to prevent the chassis plate from bending during driving, it is reinforced with a rigid rod, which is anchored between the shock absorber towers.
To prevent vibrations at high speeds, the central drive shaft is supported by a bearing support. Not only will vibration be dampened, but the drive life will be increased.
The strength components of the model, such as drive shafts, axle arms, etc., underwent careful development.
The bars are mounted on large ball joints, in which the clearance is defined by means of adjusting rings. There is an O-ring on the rings to prevent dust from entering. The steering lever is made of aluminum, the ball pin cannot jump out of the ball thanks to the special head.
To drive the car, you need 2 sets of LiPol batteries, for which there is a generous space. The batteries are secured with Velcro cross straps, so the batteries hold very well in place and are easy to replace.
The ADS-15M servo steering with a torque of 15 kg.cm at 7.4 V is a high-performance servo steering in a waterproof * design and with metal gears. The servo has standard dimensions of 41 x 20 x 38 mm.
The model is controlled by a modern SPEKTRUM ™ FIRMA ™ 150A SMART controller with a 32-bit ARM Cortex M4 microcontroller, which is able to sense complete telemetry and transmit it to the receiver using an integrated wire in the new IC5 connector. Data is transmitted via the SRXL2 protocol. The controller reads information about the type, temperature and voltage of the battery cells directly from the Smart battery. Real-time current, temperature, total battery voltage, battery cell voltage, battery temperature, remaining capacity and motor speed are available.
The electronics are completely encapsulated in a special potting compound, which prevents the entry of moisture * or dirt into the electronics. The controller is switched on and set with the buttons under the rubber cover.
Spektrum transmitter ™ DX3 ™ with integrated antenna, indication of the charge status of the Smart drive battery in the model. Indication of the battery status in the transmitter. Excellent range, response and interference immunity with the exclusive Spektrum DSMR technology. Quick setting of required parameters. Support for the latest technologies, including SMART Spectrum.
Shock absorbers play a key role in the car's driving characteristics, so they were definitely not spared. The construction is specially tuned for optimal driving characteristics, aluminum body, high-quality steel springs and set suspension stiffness.
The set package includes a pinion that you can install if you want to use the maximum drive speed with LiPol 6S batteries.
The new IC5 connectors have a modern design with an emphasis on safety and simplicity. The contacts are made of gold-plated pins and sockets with a diameter of 5 mm.
As already mentioned, the connectors have been designed with an emphasis on safe and easy use. The connectors cannot be reversed in polarity, the contacts and soldered connections are covered with a plastic cover. The IC5 connector is backward compatible with EC5.
* For information on water resistance specifications, refer to the operating instructions. Tips and tricks for operating in a wet environment can be found in the blog.
To put the model into operation, 4x AA batteries for the transmitter, drive batteries and an adequate charger for drive batteries are required. / p>
Since the model is equipped with two battery compartments on the sides, it is better to use two identical 2S or 3S LiPo batteries (7.4 V, 11.4 V) to balance the model.
The model can also be operated on one LiPo drive battery with 4 or 6 cells (14.8 V, 22.2 V). In this case, short the second input of the Y-cable with the jumper ARA390292, which is already part of the package. This solution is less demanding on the correct charging of the batteries, but on the other hand the center of gravity is not correctly divided.
If you decide to use modern Smart LiPo batteries in the RC model of the Arrma car, then we recommend the following chargers:
You also need a reducer for charging IC5 / IC3 (Order No. SPMXCA507).
If you decide to run the model on conventional LiPo batteries , we recommend using universal chargers with a power of at least 50 W. < / p>
To connect the battery to the charger, a charging cable with bananas and an EC5 connector (Order No. FO-LGL-CLEC5) is required.
For normal operation of an RC car, you need tire glue, bolt glue, a tool kit and silicone shock absorber oil. From our range we recommend an affordable set of tools for RC cars.
The tire glue adheres the tires to the rim of the disc. It is always necessary for the tire to be firmly glued to the wheel rim around the entire circumference! If the tire is not stuck around the entire circumference, it may rupture. The tire adhesive has a special composition that is able to bond materials such as rubber or nylon, and at the same time the adhesive is flexible after hardening. We recommend Robitronic Tire Glue from our offer - see recommended accessories.
Occasionally it is necessary to add silicone oil to the model's shock absorbers and change the oil in the differentials. During normal operation, there is only a slight leakage of silicone oil along the shock absorber piston rods. If the surface of the shock absorber piston rods or the condition of the seals is in poor condition, the oil leak may be large. For these cases, repair kits or individual parts are supplied. From our offer of silicone oils, we recommend silicone oils TLR (Team Losi Racing), see recommended accessories.
For routine maintenance, a screw adhesive is required (Order No. FS-G06 / 10. Screws screwed into the metal material (eg screws in the motor, set screw in the pinion) must be secured against loosening with this adhesive.
Protective covers are designed to reduce the risk associated with transporting and charging batteries. LiPo batteries can, while maintaining small dimensions and low weight, provide high discharge currents and have a large capacity for long travel times. On the contrary, the LiPo battery is prone mainly to mechanical damage.
