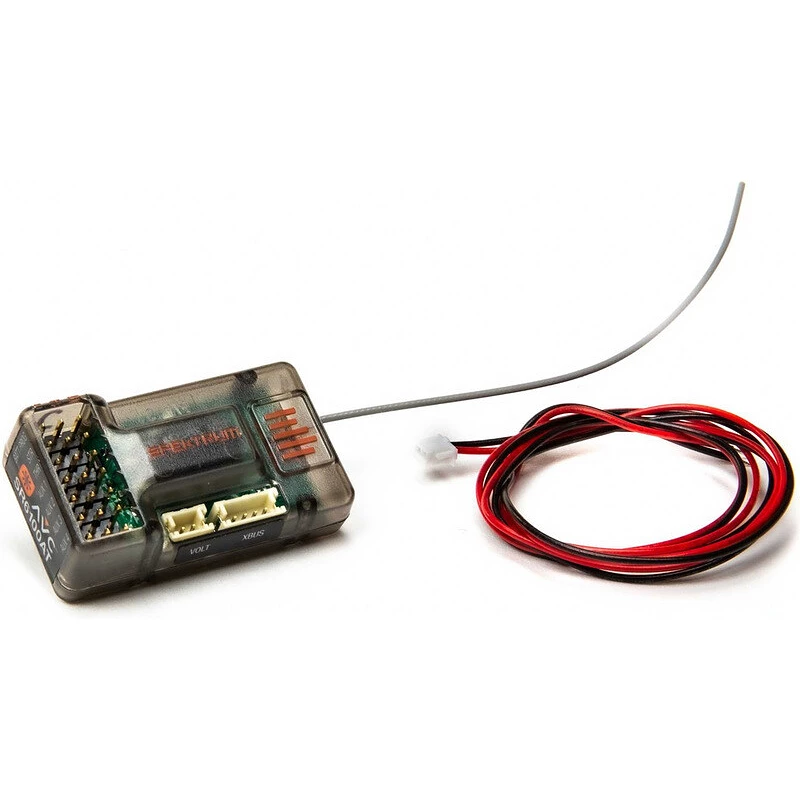

Spectrum receiver SR6100AT DSMR 6CH AVC with telemetry

The new 6-channel Spektrum SR6100AT RC receiver with DSM2 / DSMR modulation for RC car models. It has excellent range and response, especially in places with multiple systems operating in the 2.4 GHz band. The receiver is equipped with the patented Spectrum AVC (Active Vehicle Control) system and full telemetry range (the receiver uses a maximum allowed transmission power of 100 mW EIRP). The AVC stability system corrects the direction of travel of your car model and makes instant, convenient corrections to keep the model from moving in the desired direction. RC Receiver Spektrum SR6100AT supports Spektrum Smart technology - communicates with electronic controllers Spektrum Smart FIRMA and transmits telemetry without sensors.

The receiver is further equipped with a VOLT input for voltage measurement and an XBUS input for connecting other sensors.

The receiver supports Spektrum Smart controllers. Automatically the receiver will read the telemetry data from the controller and transmit it to the transmitter. The receiver is of course backward compatible with conventional controllers. If the receiver on the 2nd channel does not detect the Smart controller, the standard PWM signal will be output.

Features of the RC receiver Spektrum SR6100AT

• Compact 6 channel RC receiver with DSM2 / DSMR modulation.
• Supports Spektrum Smart technology - the receiver can read telemetry data from the controller
• Great for models that use AVC technology, free channels can be used for lights and other functions
• AVC settings are made using a transmitter. The AVC system can be turned off if necessary
• The receiver electronics are protected by a special varnish to prevent moisture or dirt from entering
• Used 32-bit microcontroller with ARM Cortex M4 core
• Firmware upgradeable with SPMA3065 cable
• Compatible with all Spektrum DSM2 and DSMR steering wheel transmitters
• Antenna j It is connected to a standard coaxial connector
• With a transmission power of 100 mW EIRP, excellent telemetry range is ensured
