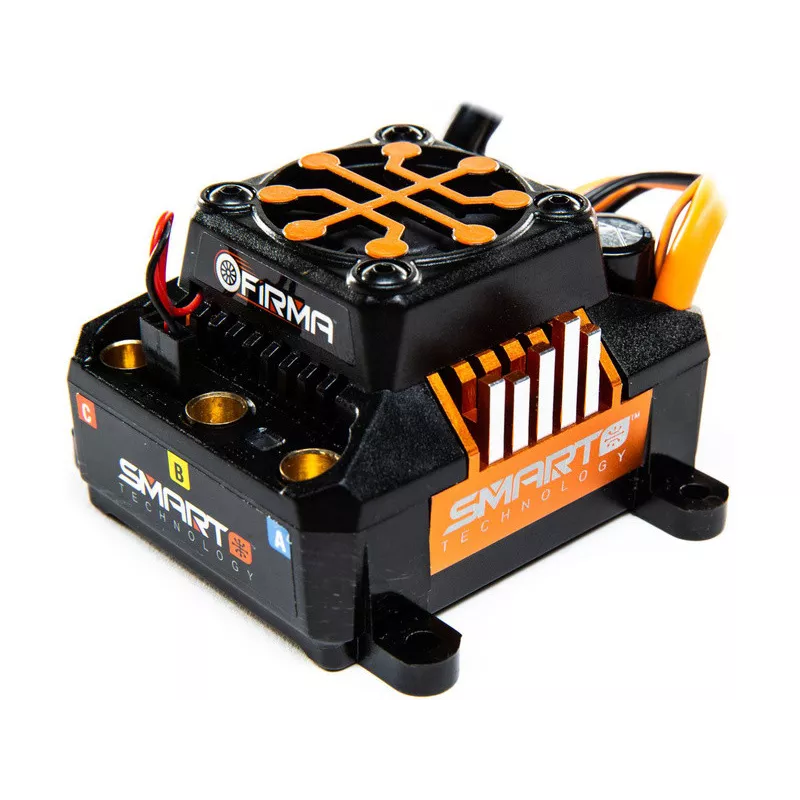

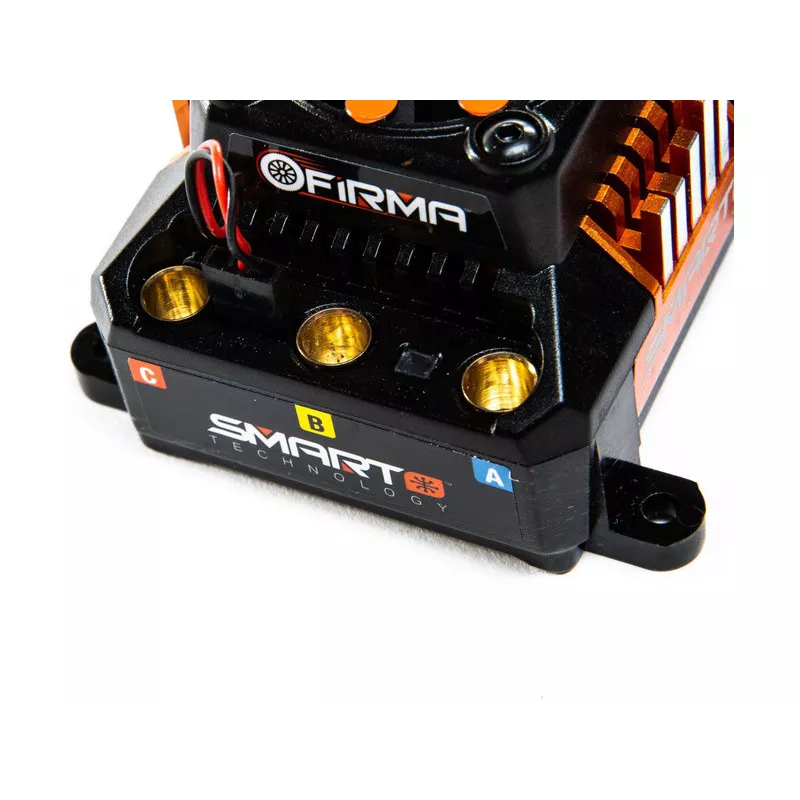

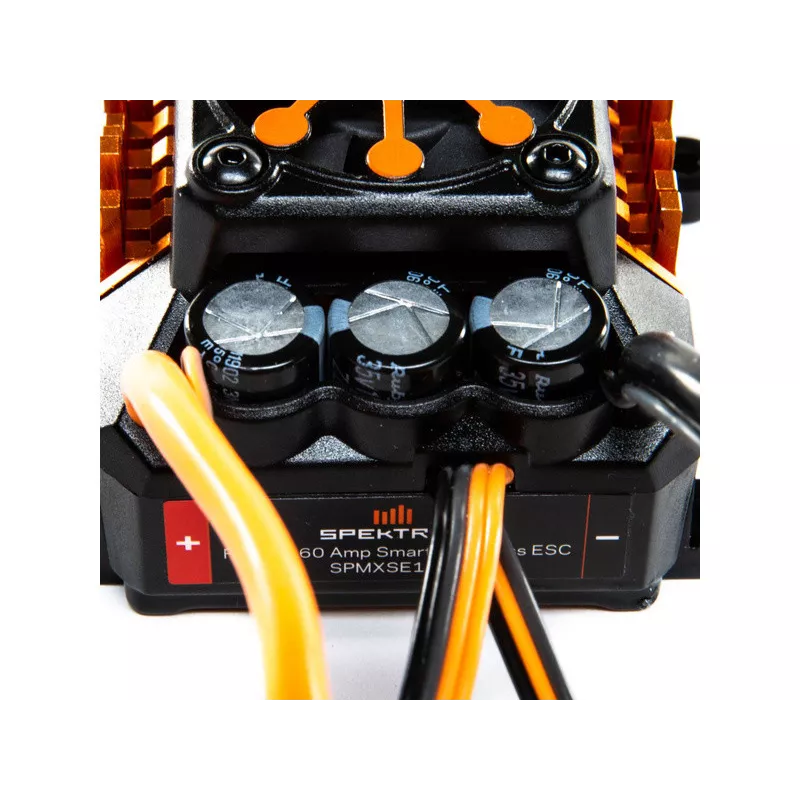

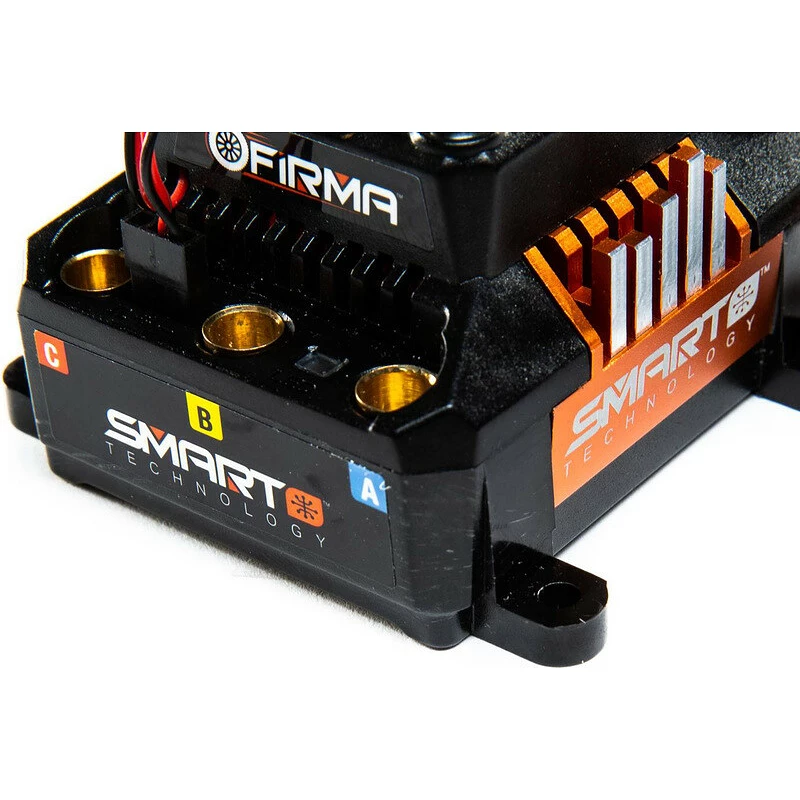

Spektrum AC regulator Smart Firma 160A 3-8S

Smart Innovation Continues Spectrum Smart Controller The 160A 3S-8S offers a perfect overview of your powertrain condition, with real-time telemetry for speed, temperature, battery voltage and capacity . And without additional sensors! Smart technology ensures that all of your model's electronics work together seamlessly for maximum efficiency and performance. It provides status information for each component of the system, increases your confidence in its capabilities, and makes the entire drive system easy to use.

Smart controllers have the ability to offer all the available data for your drive via Spectrum telemetry! It is a sophisticated technology system - Smart controller, Smart battery, Spektrum receiver with telemetry and Spektrum transmitter with telemetry. The controller has an integrated 32-bit ARM M4 processor, with which all available data can be transmitted to your transmitter via a telemetry receiver. Spektrum Smart LiPo batteries have a built-in microchip that automatically records and communicates with smart chargers while charging - just plug in the battery and press the "Start" button. Smart IC ™ Series connectors feature an innovative data wire that transfers information between Smart components over a single link. Finally, intelligent controllers not only supply power, but also eliminate problems with telemetry operation. You no longer need any sensors or modules, everything is integrated in the system.

Features of Spektrum Smart controllers

• Smart Telemetry in a comprehensive package
• The controller includes a fast and powerful 32-bit ARM M4 processor
• The controller is waterproof
• More programming options with the Smart programming box
• Overcurrent protection
• Automatic disconnection of LiPol at low voltage
• Thermal protection
• Failsafe protection
• Compact, easy to install
• Robust plastic housing with retaining tabs
• Aluminum cooler with fan for high efficiency
• Adjustable high-performance BEC
• The firmware can be updated using the Smart ESC programming box
• High-strength IC ™ connectors, compatible with EC ™ connectors

The Spektrum Smart Firm controller is much more than just an engine speed change device. It collects data and sends it to your Spectrum transmitter in real time. You can adjust settings as needed to increase drive performance and efficiency. Smart technology is now easier and better!

Protection against moisture

Controller for RC car models Spektrum Smart The company has been designed to protect the electronics board from the effects of moisture * or dust.

* Refer to the instruction manual for water resistance specification. Tips and tricks for wet operation can be found in the blog.

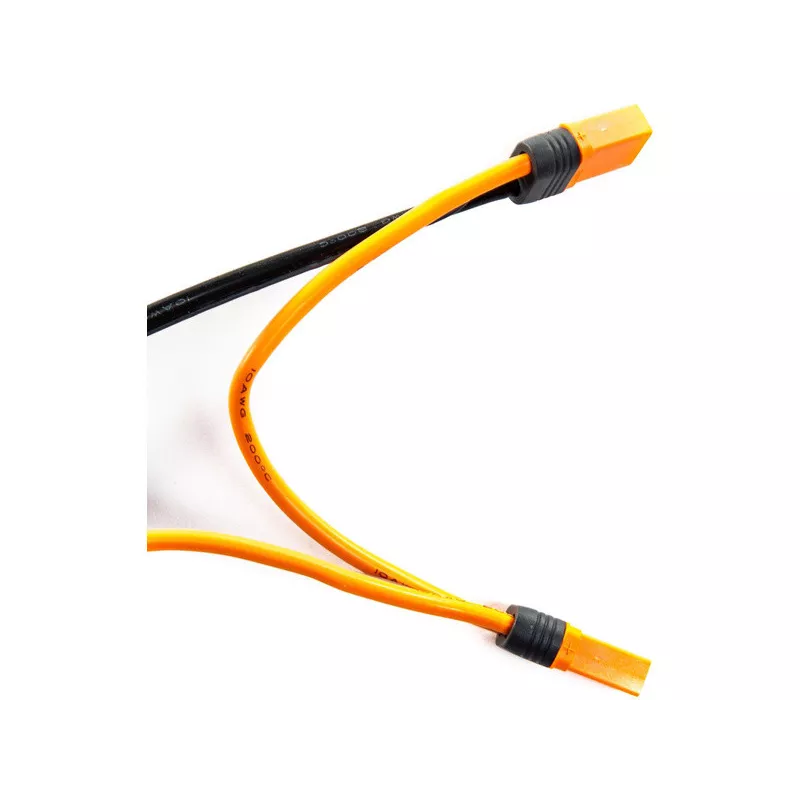

IC / EC connector compatibility

Company ™ controllers are equipped with IC ™ battery connectors. When used with a Spektrum ™ Smart battery equipped with an IC3 ™ or IC5 ™ connector, the controller can receive and transmit telemetry data for the battery. The EC3 and EC5 connectors are compatible with Firma ™ controllers for normal operation and telemetry.

One-wire data transmission

An amazing innovation for transmitting the system's telemetry data using the Spektrum Smart battery (speed, temperature, battery voltage and remaining capacity) is the absence of telemetry sensors. These components are replaced by an advanced electronics controller that provides all the necessary input data for telemetry.

* See Appendix, Compatibility Table for more information.

SMART BATTERY DATA

When using the Firm controller with a Spektrum ™ Smart battery, you have the advantage of a battery telemetry whose data is automatically transmitted to your compatible Spektrum transmitter in real time. The transmitter displays useful information such as the number of cycles, remaining battery capacity, cell voltage, and more!

Powerful M4 processor

The controller has an integrated 32-bit ARM M4 processor, through which you can transmit all available data via your telemetry receiver to your compatible Spektrum transmitter. It also has a higher-resolution signal input and therefore more accurate motor output.
