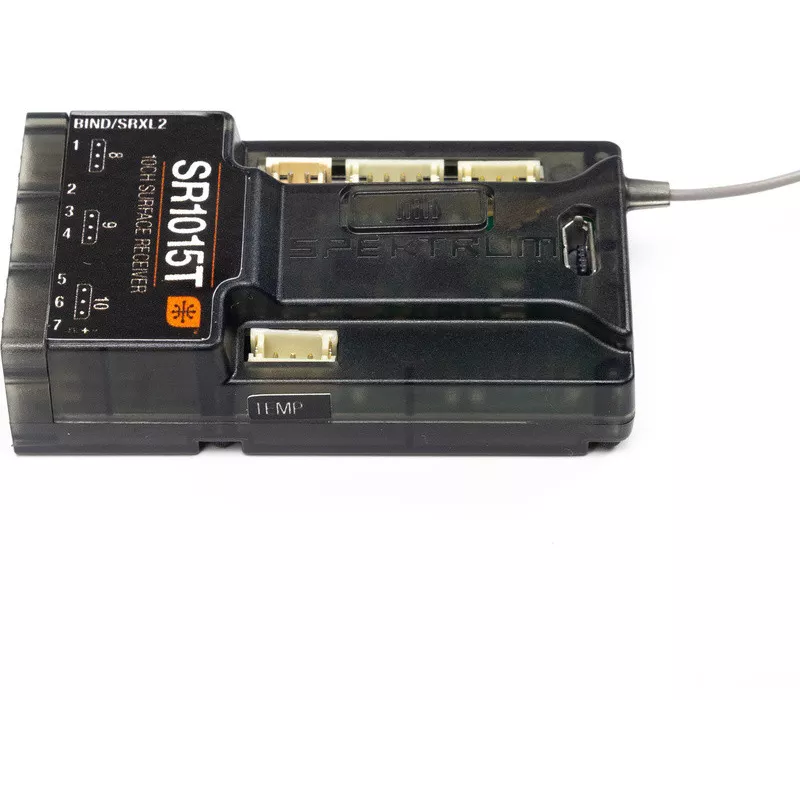

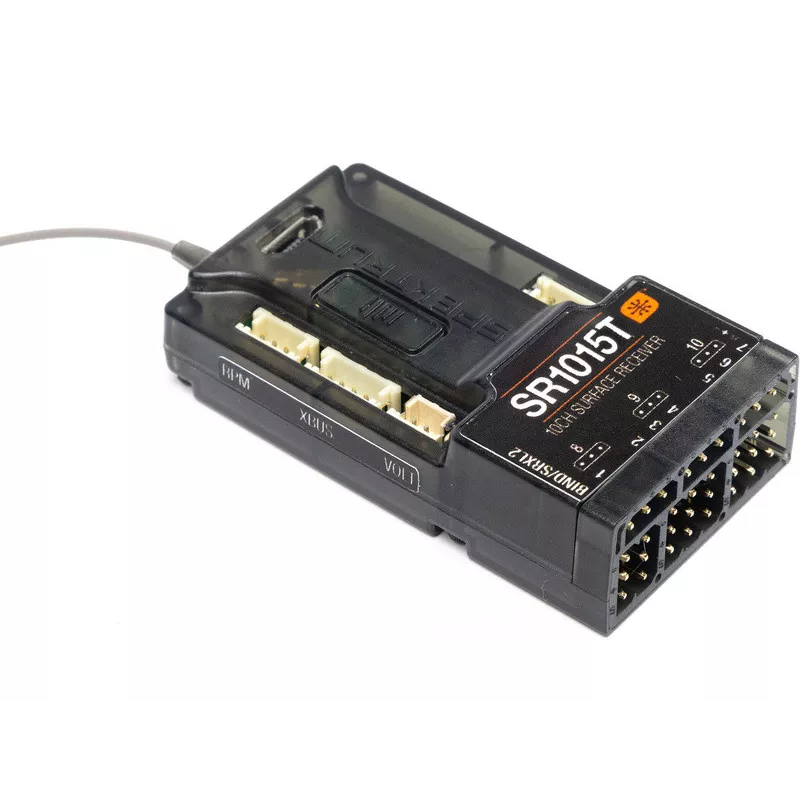

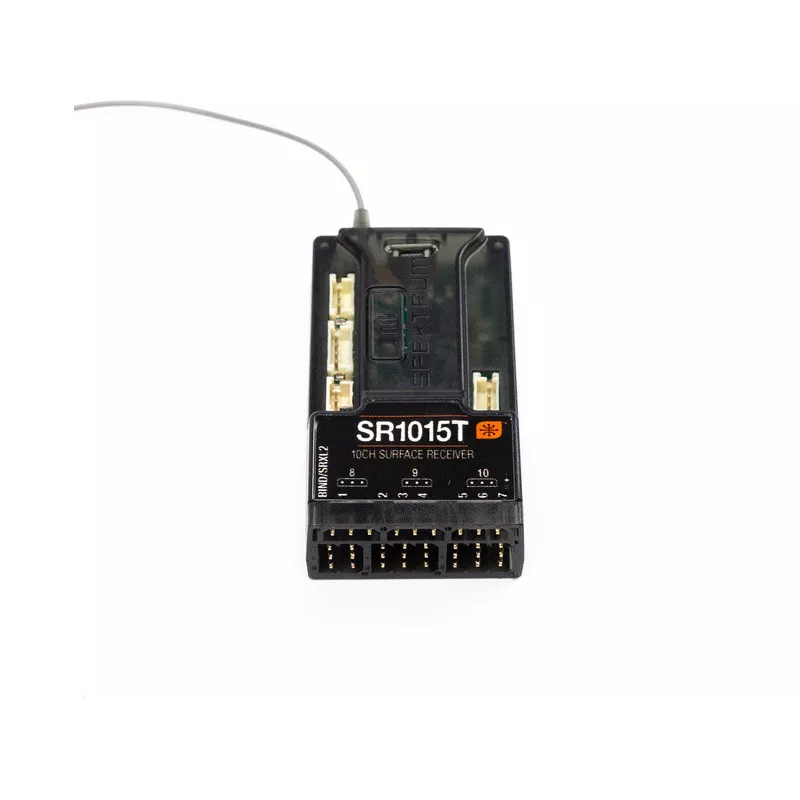

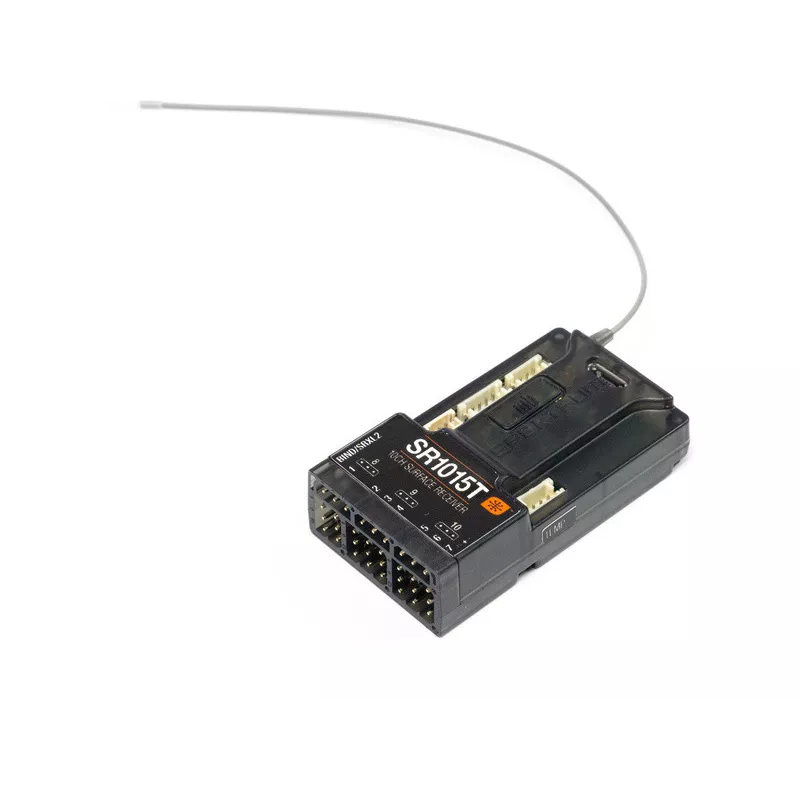

Spektrum receiver SR1015T 10CH DSMR+ with telemetry

Package contents

The package includes the Spektrum SR1015T RC receiver, CZ user manual and EN, DE, FR, IT manual.

Characteristics

Spektrum SR1015T RC receiver with 10 channels and DSMR+/DSMR modulation for RC car and boat models. 10 fully proportional channels allow for greater flexibility and versatile control for auxiliary systems such as winches, lights, etc. It has excellent range and response, especially in places where there are multiple systems operating in the 2.4 GHz band. It has full telemetry range. It supports Spektrum Smart technology via the SRXL2 protocol - it communicates with Spektrum Smart FIRMA electronic controllers and transmits telemetry without sensors. It contains ports for connecting telemetry sensors - VOLT for voltage measurement, RPM for speed measurement, TEMP for temperature measurement, as well as an XBUS input and a Micro USB connector. For easy pairing, there is a pairing button on the top.

The receiver supports Spektrum Smart controllers and other Smart technology features. Thanks to the Smart Throttle function, it automatically reads telemetry data from the controller and transmits it to the transmitter. The receiver is of course backward compatible with conventional controllers. If the receiver does not detect a Smart controller on channel 2, a standard PWM signal will appear at the output.

RC receiver features

•

• Compact 10-channel RC receiver with DSMR+/DSMR transmission protocol.

• Supports Spektrum Smart technology via SRXL2 protocol - the receiver can read telemetry data from the controller

• The receiver electronics are protected by a special varnish that prevents moisture or dirt from entering.

• Possibility to update firmware via Micro USB connector

• Long antenna suitable for low-to-the-ground vehicles

• Excellent telemetry range is ensured

• Simple pairing with a button

• Failsafe protection function

• Input telemetry ports and XBUS
