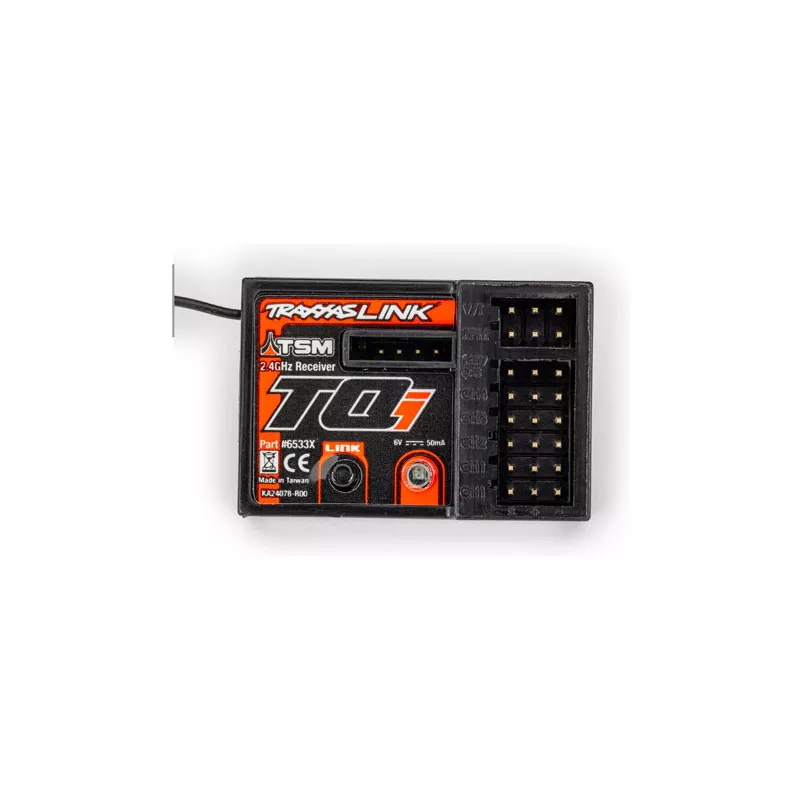

Traxxas TQi 5-channel TSM receiver, telemetry

Characteristics

Traxxas 5 channel RC receiver for Traxxas TQi transmitters with integrated telemetry and Traxxas Stability Management (TSM) stabilization system. The receiver is compatible with the older version of TQi transmitters (with docking station), as well as the new version with Bluetooth. Spare part for 4-Tec Drift.

There is an expansion module for the receiver, which allows you to connect all possible sensors, including the GPS speed sensor, at the same time.

Features

•

• 5 proportional channels

• Telemetry input for temperature sensor and battery voltage

• Telemetry input for speed sensor

• The possibility of expanding the telemetry inputs using a special module, which is available under order no. TRA6550.

• Temperature and voltage sensors, RPM sensor and all sensor mounting accessories are available for all Traxxas models.

• Simple operation, pairing with a button

• The stabilization system can be adjusted either with the rotary control on the transmitter or with the Traxxas Link app


Stabilization of TSM

The receiver is equipped with TSM electronic ride stabilization. Integrated MEMS sensors constantly monitor the position of the model and the deflection of the steering wheel. This means that the model automatically corrects the steering of the wheels so that the model stays in the direction you want. The TSM stabilization does not reduce the driving pleasure in any way, on the contrary, at higher speeds the model could be difficult to drive without stabilization.

You can conveniently change the intensity of TSM stabilization with the multifunction button on the TQi transmitter.

Example of TSM stabilization turned off and on

Telemetry

The receiver contains a common telemetric input for the voltage and temperature sensor - TRA6521, TRA6523, and also a telemetric input for the speed (speed) sensor - TRA6520, TRA6522.

The receiver also contains a 4-pin connector for connecting a telemetry expansion module, into which you can connect up to 6 more sensors, including a very accurate GPS speed sensor. To display the telemetry, a TQi transmitter with the TRA6511 bluetooth module installed is required.

Telemetry wiring diagram
