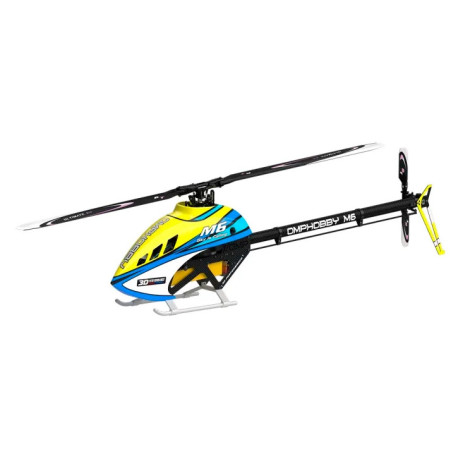

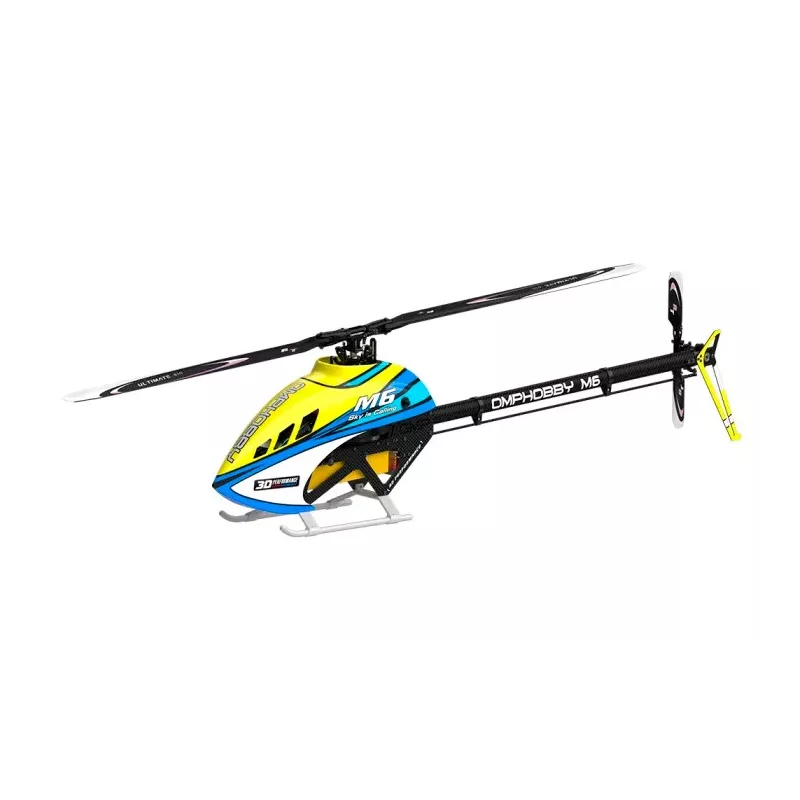

M6 kit - yellow

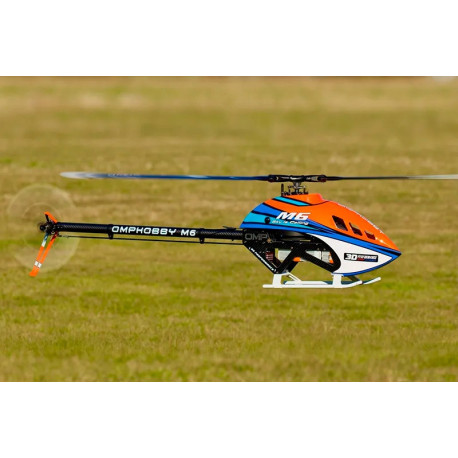

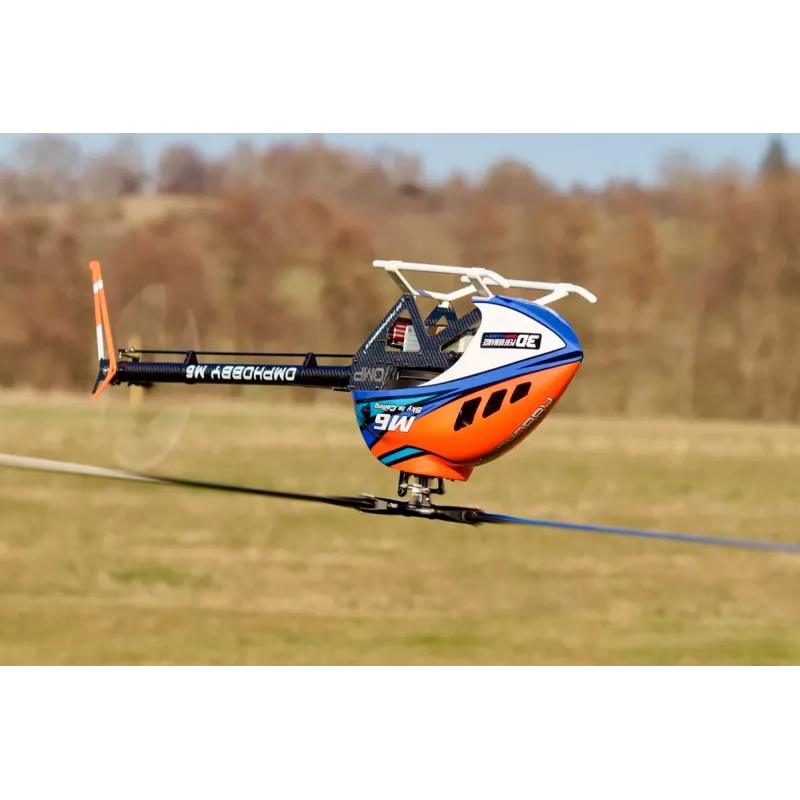

The OMP HOBBY M6 is a high-performance "600" class helicopter designed to meet the requirements of pilots who are just starting out with large helicopters, sport pilots, modelers and 3D fighters when installing the appropriate engine and electronics. The M6 was designed with an emphasis on minimizing inertial moments in all three axes, which, together with the main and tail rotor control system with a large range of deflections, offers incredible steering authority and maneuverability. A number of solutions fully proven in the "bigger and older brother" M7 were used.
The M6 allows for the installation of a wide range of motors and electronics, so straight out of the box or with the use of tuning parts, it easily meets the requirements of seasoned 3D pilots and allows the use of their most popular and thoroughly tested equipment.

• Flybarless rotor head
• CCPM 120° swashplate

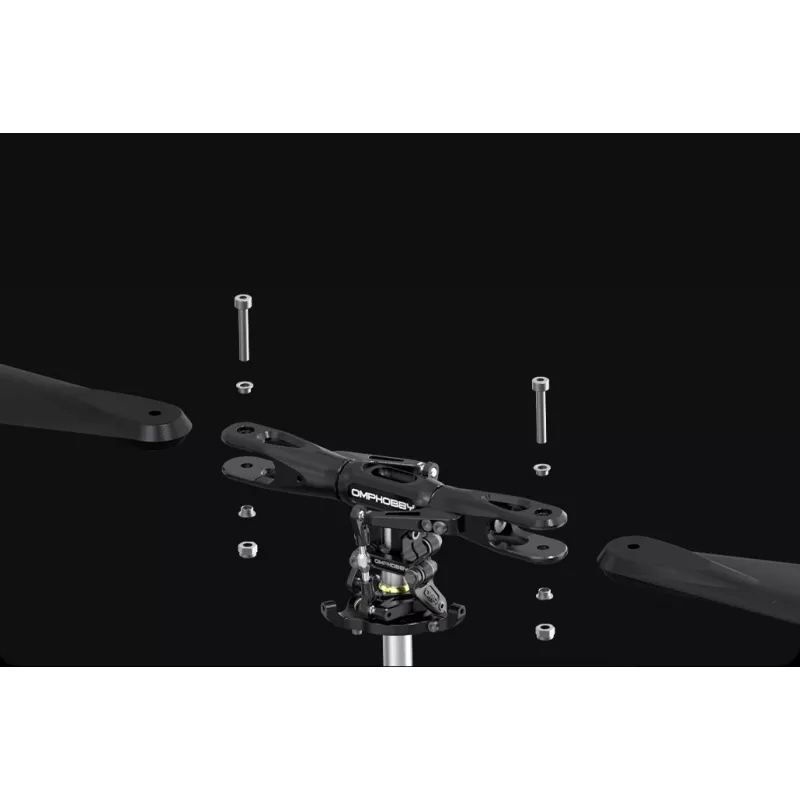

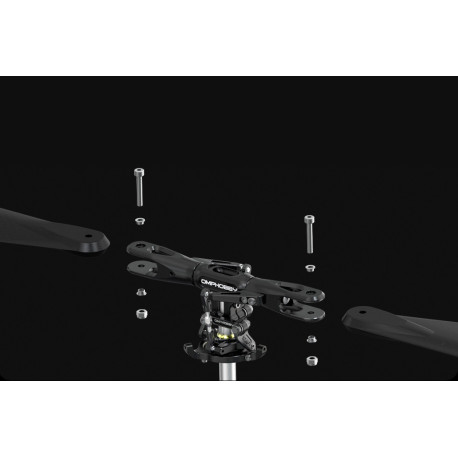

• All-metal rotor head made of high-strength 7075 aluminum with a large range of deflections for excellent response and steering authority

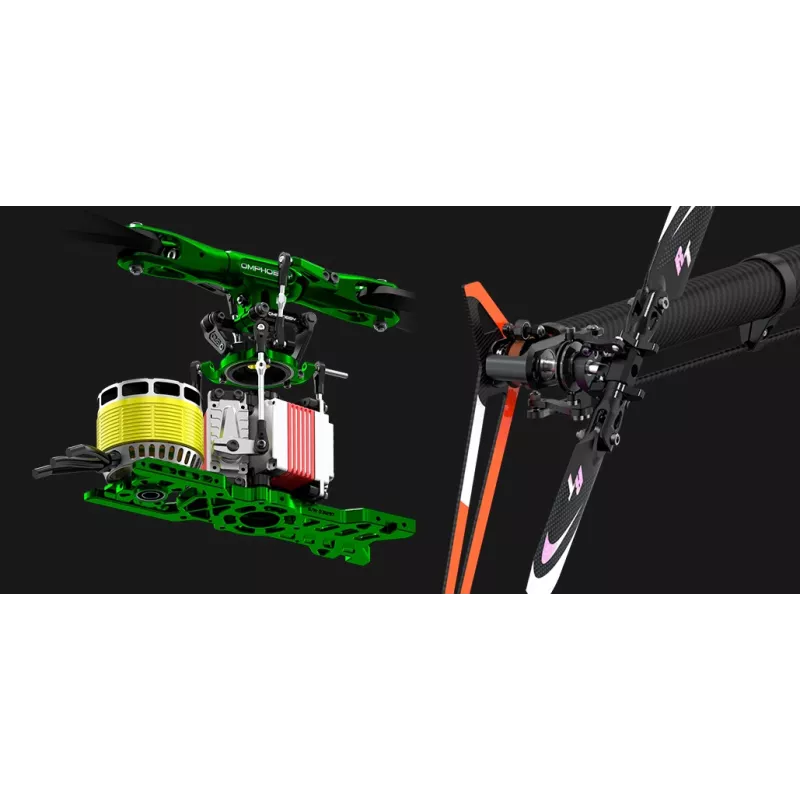

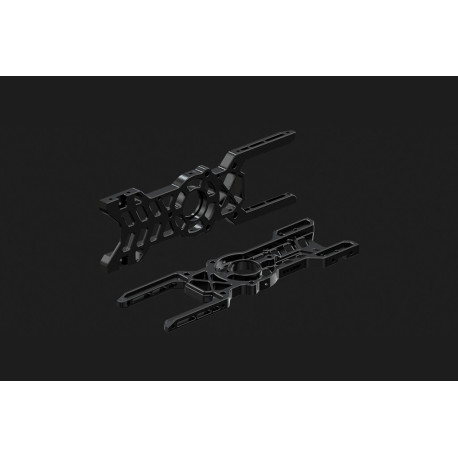

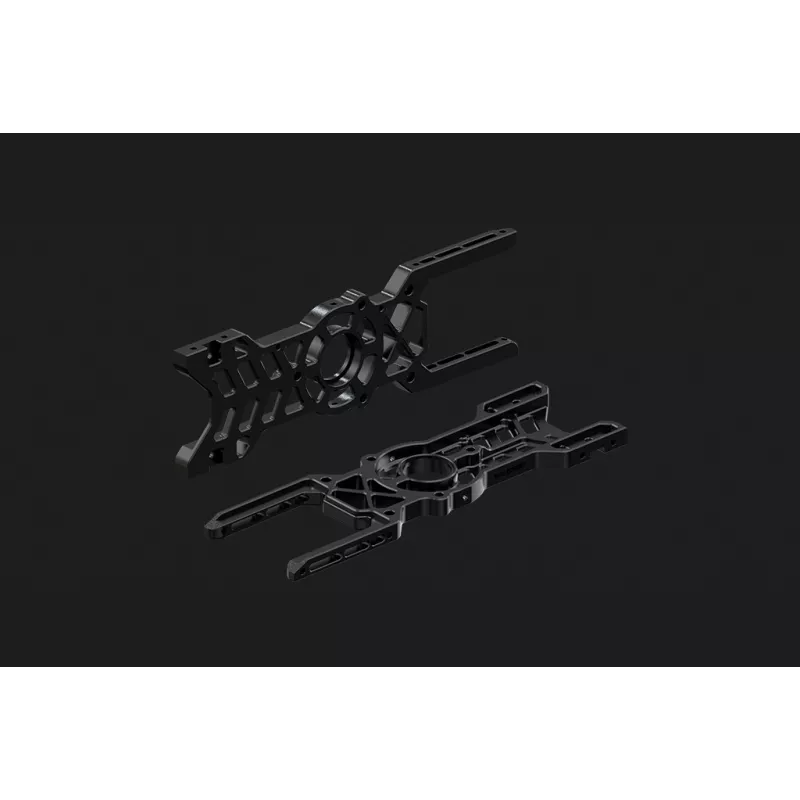

• Rigid frame with carbon sidewalls
• Extra stiff carbon tube tail spar requiring no struts

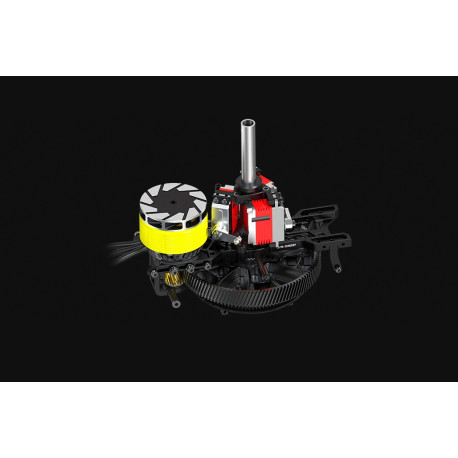

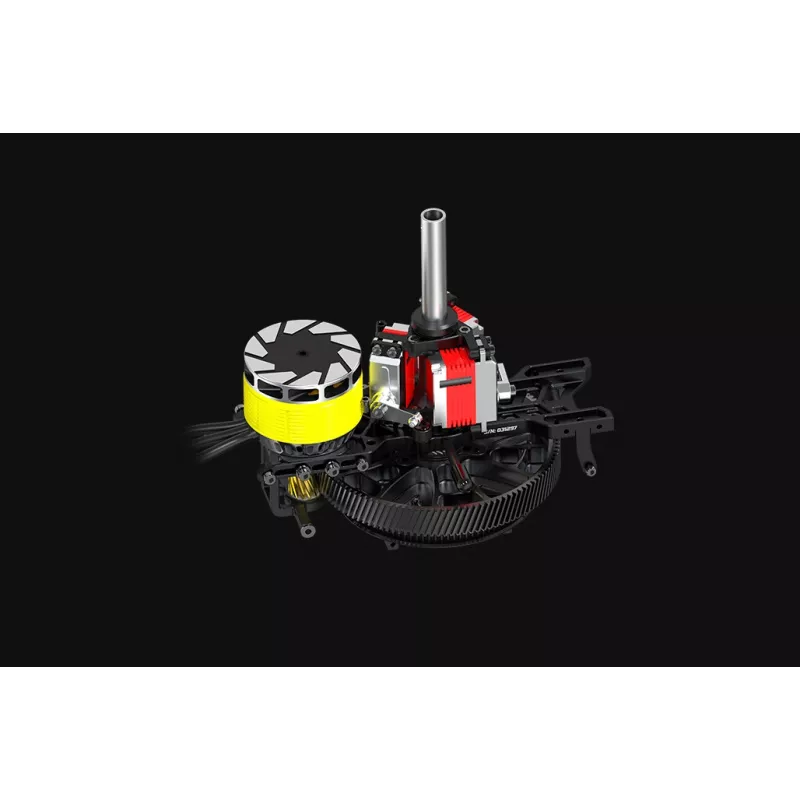

• Motor bed with easy-to-adjust position for simple tooth clearance adjustment
• Pinion for motor shafts with a diameter of 6 mm with 13 teeth (pinions with 11 to 15 teeth can be used)

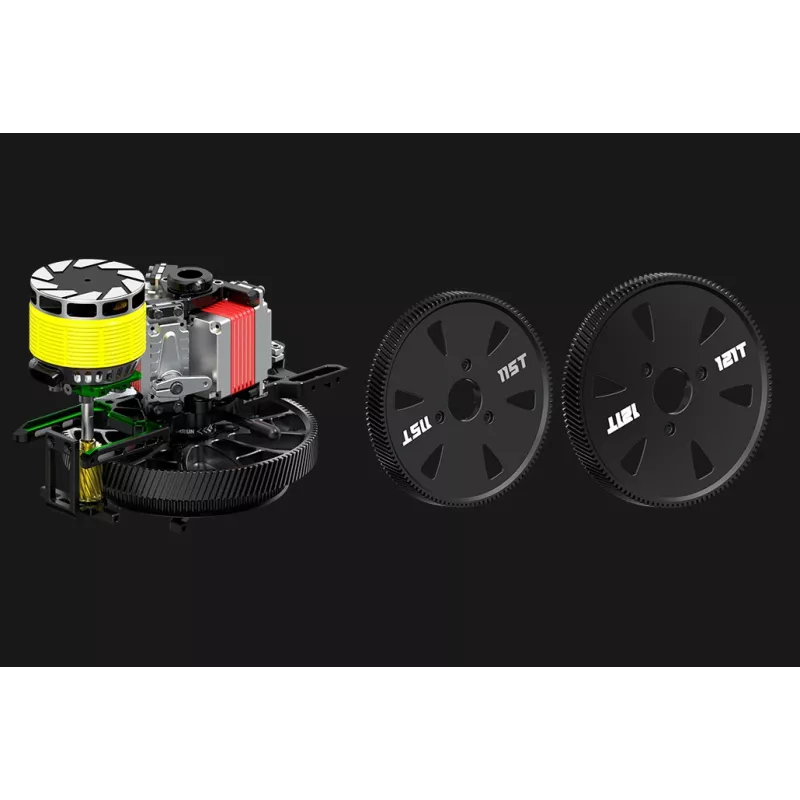

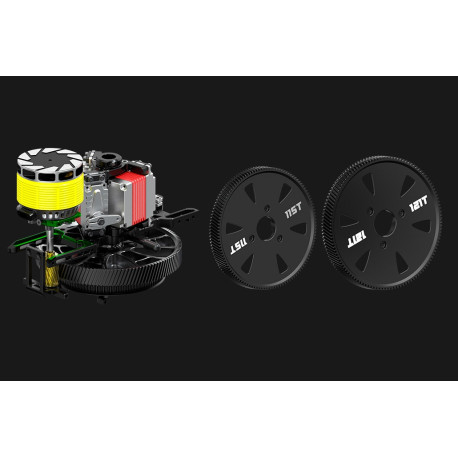

• Main gear and pinion with helical teeth for smooth operation and low noise

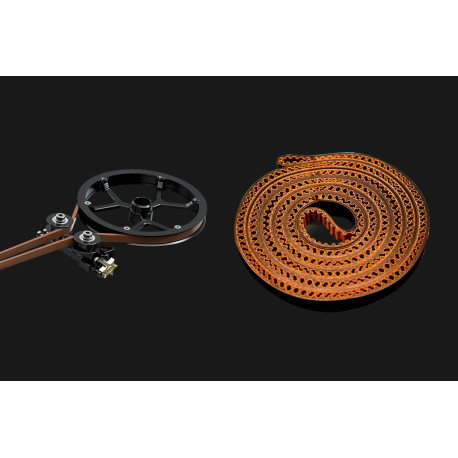

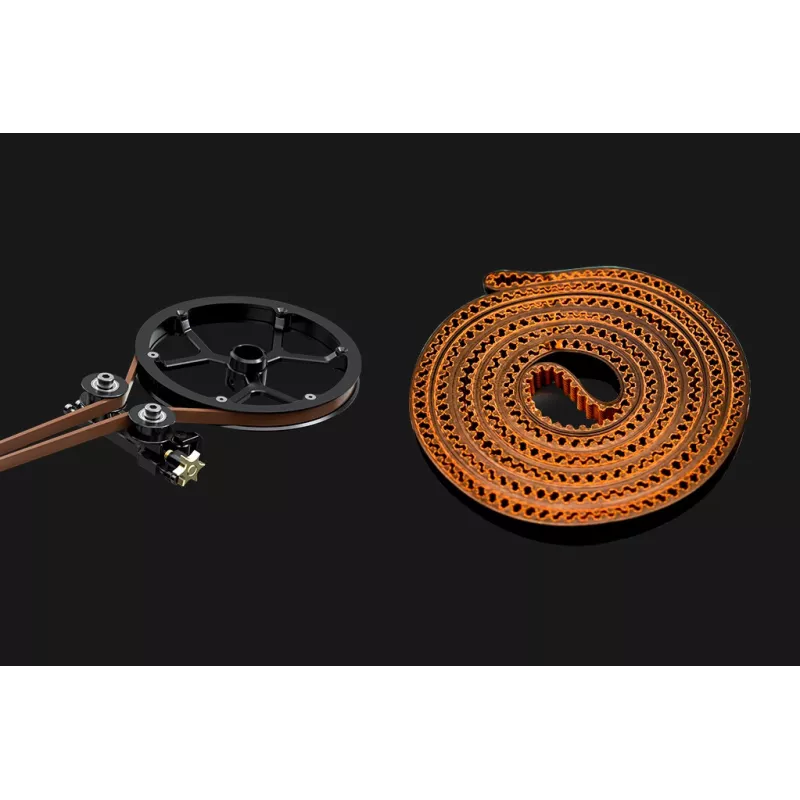

• Timing belt drive of the balancing rotor with innovative tool-free preload adjustment system
• Compact, one-piece, CNC-machined, lightweight duralumin balancer drive housing

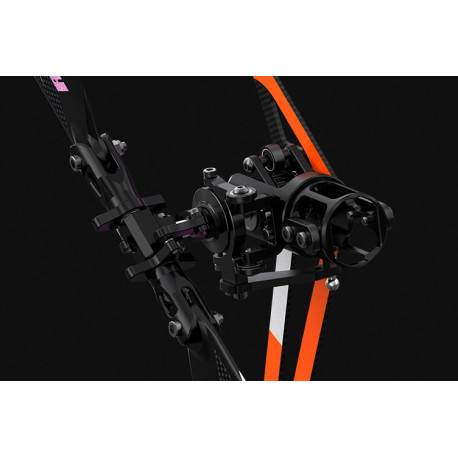

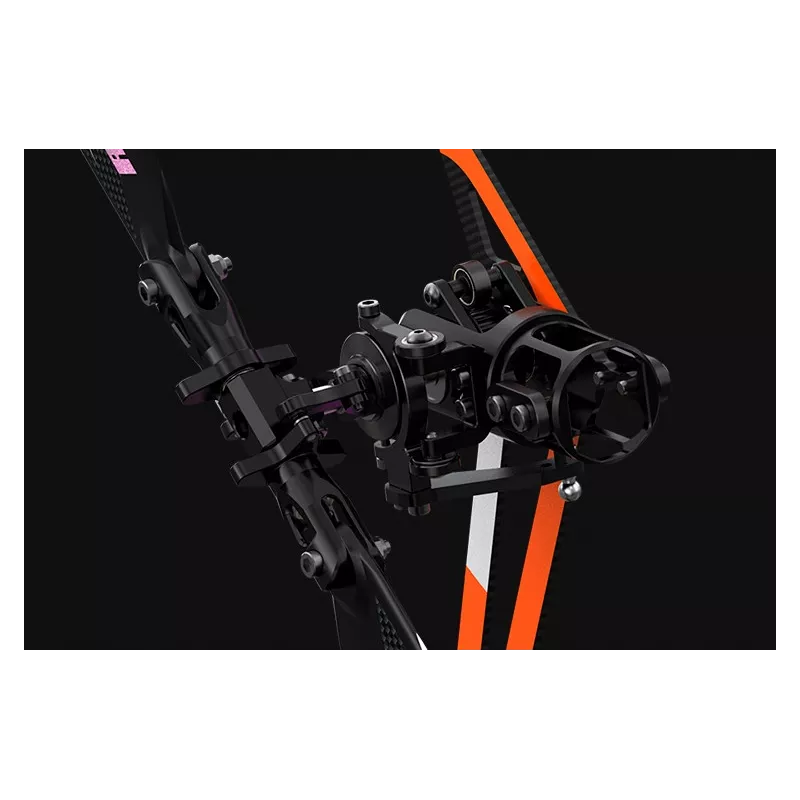

• Dynamically balanced trim rotor with wide control range for precise control with unmatched authority

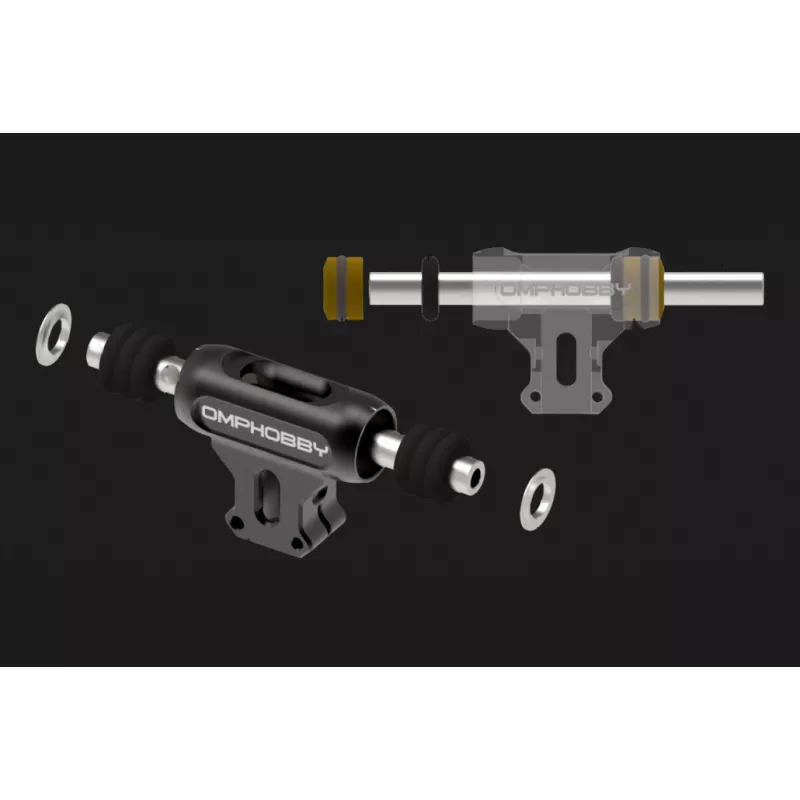

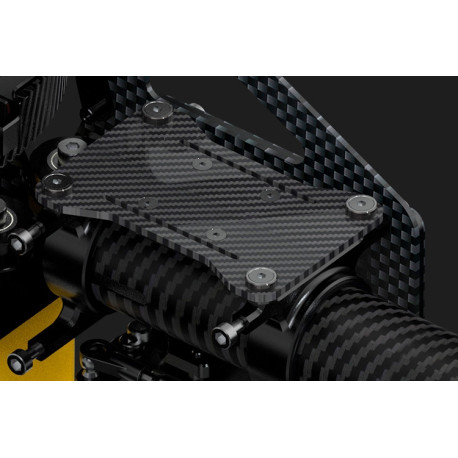

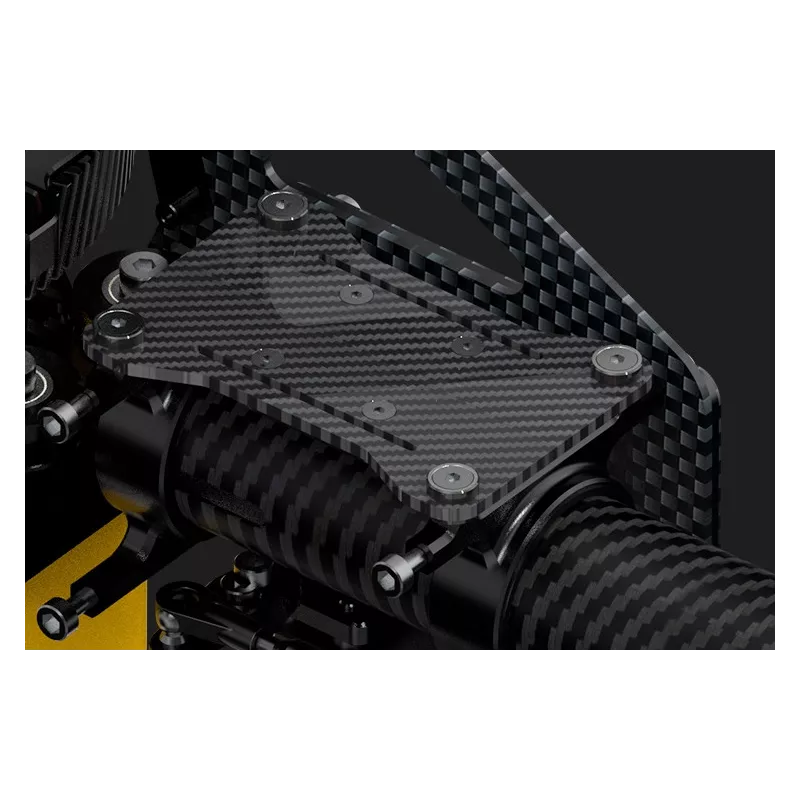

• Vibration-isolated support plate for flybarless control unit

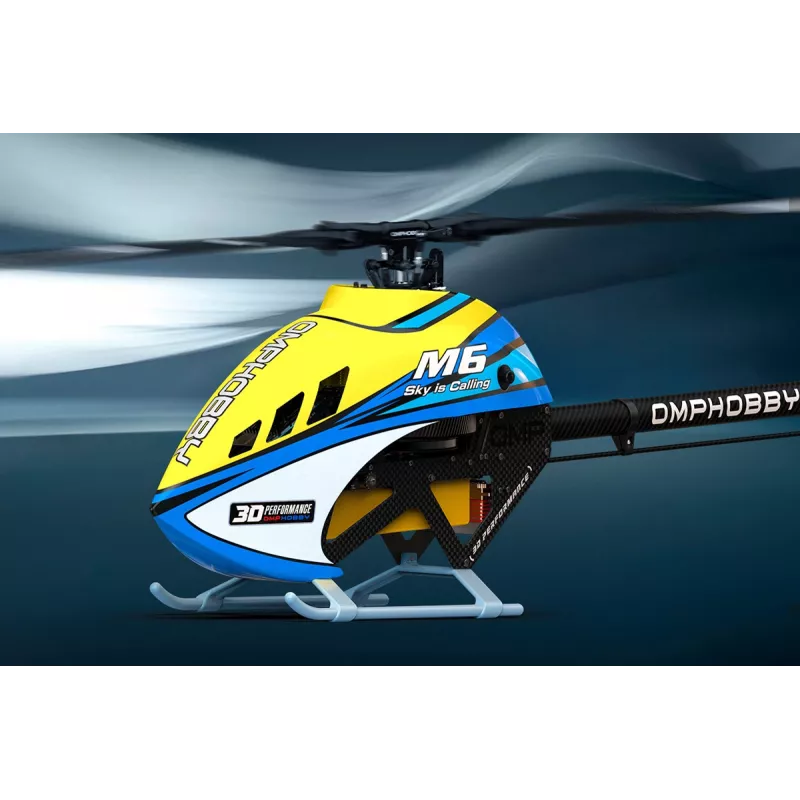

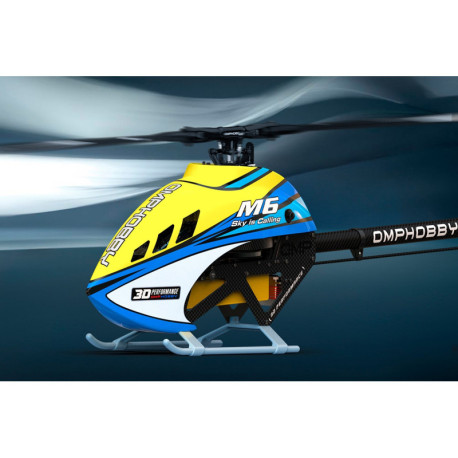

• Elegant sports cabin with quick-release brackets
• Durable wide composite chassis

Recommended main rotor blades: carbon 580-610 mm.
Recommended balancing rotor blades: carbon 96-106 mm.
Recommended RC kit: computer-based, at least 6 channels, with a heli program.
Recommended swashplate servos: Standard size - e.g. MKS HBL850, HBL960, HBL950, KAVAN GO-1180MG.
Recommended yaw/tail rotor servo: Standard size - e.g. MKS HBL880, HBL990, HBL980, KAVAN GO-11T80MG.
Flybarless control unit: e.g. Futaba CGY770R, CGY760R, CGY755, Bavarian Demon BD 3X, BD AXON, etc.
Suitable motor: 4520 series rotating shell brushless motor (stator diameter 45mm) with 500-550KV for 12S LiPo. E.g. Sunnysky M4520R 550KV.
Suitable controller for sport flying: Brushless for helicopters 100-150A, e.g. Hobbywing Platinum PRO 130A-HV V4, Platinum PRO 130A-HV Opto V4, etc.
Suitable controller for 3D and extreme 3D flying: Brushless HV (Opto) for helicopters 160-300A, e.g. Hobbywing Platinum 260A-HV OPTO V5.
Propulsion battery: 12S (2x 6S) LiPo 3500-5000 mAh min. 60C (battery compartment size 58x70x300 mm)

The kit contains: Complete helicopter mechanical parts, but without main and tail rotor blades, engine and electronics, building instructions.
