M7 kit - orange
OSHM701O
OMP
Mechanical kit for a top-of-the-line 3D helicopter of the "700" class with a CCPM 120° swashplate with a flybarless main rotor for 700 mm blades for a 4530 class brushless motor and 12–14S LiPo. Includes: complete mechanical parts and instructions; does not in
Express delivery
Large selection of carriers
Satisfaction guarantee

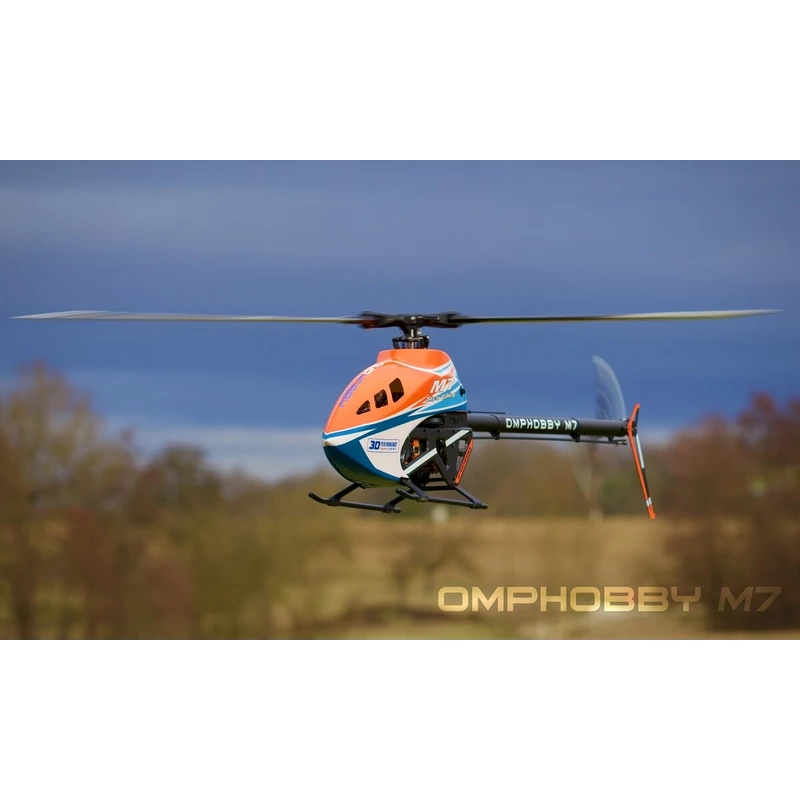

The OMP HOBBY M7 is a high performance "700" class helicopter designed to meet the requirements of large helicopter beginners, sport pilots, modelers and 3D fighters when the appropriate motor and electronics are installed. The M7's design has focused on minimizing moments of inertia in all three axes, which together with the large yaw main and balance rotor control system offers incredible steering authority and agility.
The M7 allows a wide range of motors and electronics to be installed, so straight out of the box or with the use of tuning parts, the M7 easily meets the demands of seasoned 3D pilots and allows them to use their most popular and well-tested equipment.
- Flybarless rotor head
- CCPM 120° cyclic plate

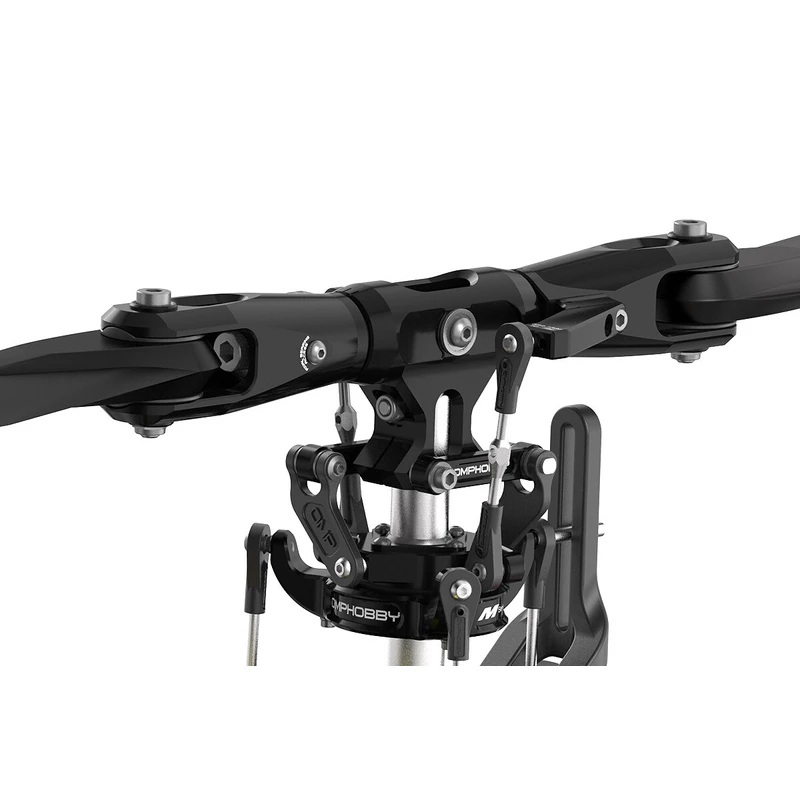

- Full-metal 7075 high-strength duralumin rotor head with large deflection range for superior steering response and authority

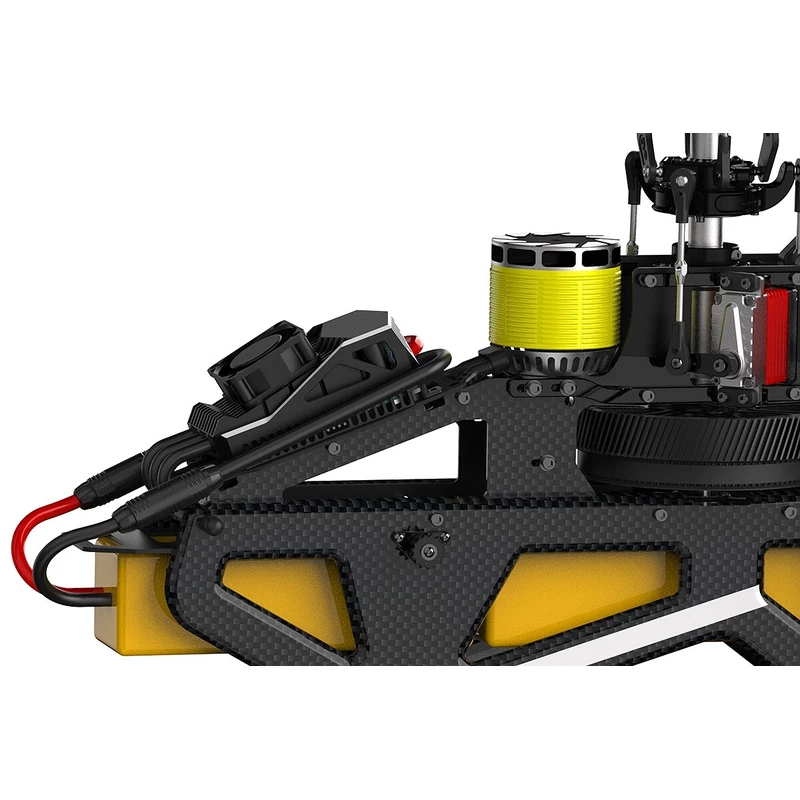

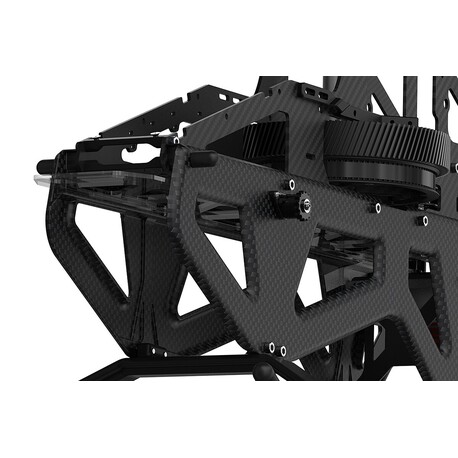

- Rigid frame with carbon sidewalls

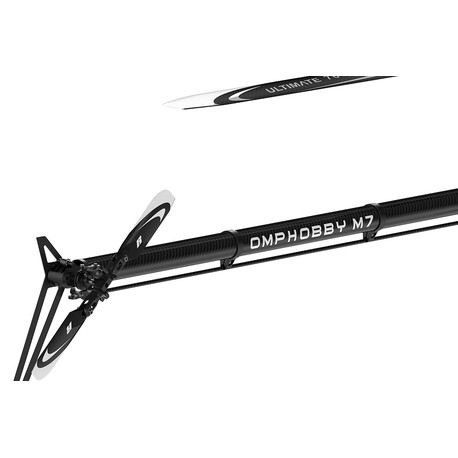

- Extra stiff carbon tube tail beam not requiring struts

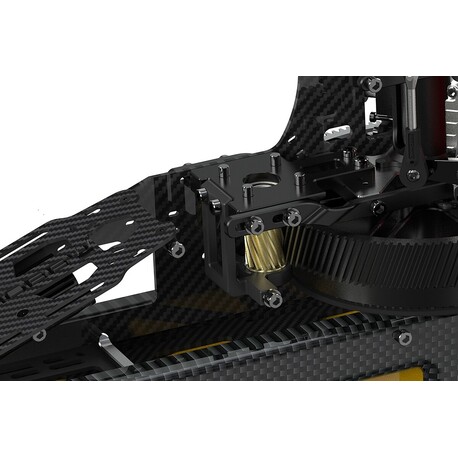

- Motor bed with easily adjustable position for easy adjustment of tooth clearance
- Pinion for motor shafts with a diameter of 6 mm with 13 teeth
- Main gear wheel and pinion with bevel teeth for smooth operation and low noise
- Timing belt drive of the balancing rotor with an innovative tool-free preload adjustment system
- Compact, one-piece CNC machined duralumin housing of the balancer rotor drive with low weight

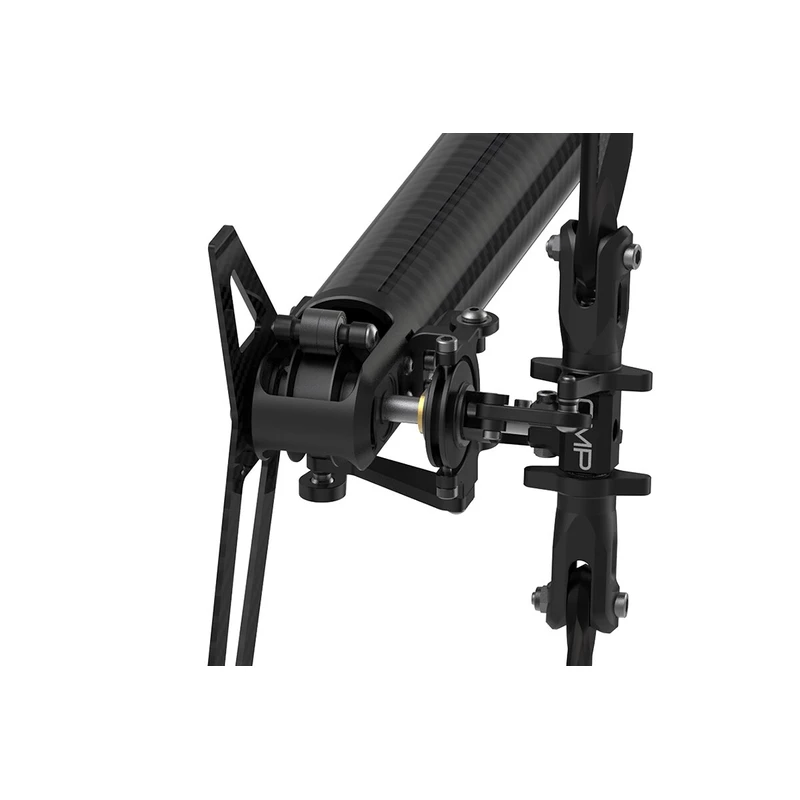

- Dynamically balanced balance rotor with large control range for precise steering with unmatched authority

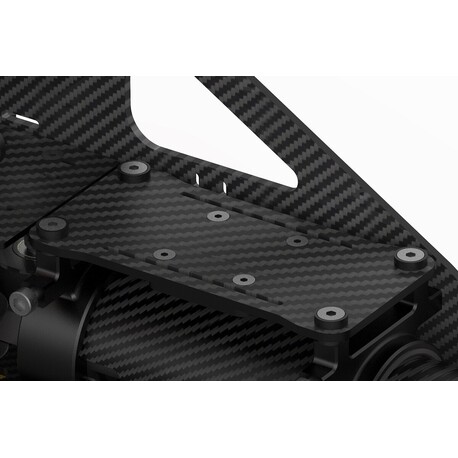

- Support plate for flybarless control unit isolated against vibrations
- Elegant sports cabin with quick-release brackets
- Durable wide composite chassis
Recommended rotor blades: carbon 700 mm.
Recommended balance rotor blades: carbon 106mm.
Recommended RC kit: computer min. 6 channels with heli program.
Recommended cycle servos: Standard size - e.g. MKS HBL850, HBL960, HBL950, KAVAN GO-1180MG.
Recommended yaw/tail rotor servo: Standard size - eg MKS HBL880, HBL990, HBL980, KAVAN GO-11T80MG.
Flybarless control unit: e.g. Futaba CGY760R, CGY755, Bavarian Demon BD 3X, BD AXON, etc.
Suitable motor: 4525-4530 series rotating shell AC motor (stator diameter 45mm) with 500-550KV for 12S LiPo. For sports flying, e.g. Sunnysky M4526R 540KV, for extreme 3D flying Sunnysky M4530R 518KV.
Suitable regulator for sports flying: Alternate for 130-150A helicopters, e.g. Hobbywing Platinum PRO 130A-HV V4, Platinum PRO 130A-HV Opto V4, etc.
Suitable controller for 3D and extreme 3D flying: AC HV (Opto) for 200-300A helicopters, eg Hobbywing Platinum 260A-HV OPTO V5.
Drive battery: 12S (2x 6S) LiPo 4500-5200 mAh min. 60C or 14S (2x 7S) 4000-4500 mAh min. 60C.
The kit contains: Complete parts of the helicopter mechanics, but without the blades of the supporting and leveling rotor, engine and electronics, construction instructions.
- Náročnost pilotáže
- P3,P4
- Šířka [mm]
- 194
- Výška [mm]
- 363
- Ovládané funkce
- M,Kl,Ko,Kp,Vr,Gyro
- Náročnost stavby
- S2,S3

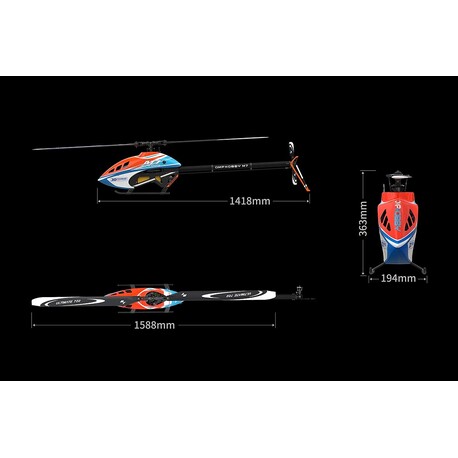

- Délka trupu [mm]
- 1418
- Hmotnost (mechaniky) [g]
- 2225
- Průměr nosného rotoru (se 700 mm listy) [mm]
- 1588
