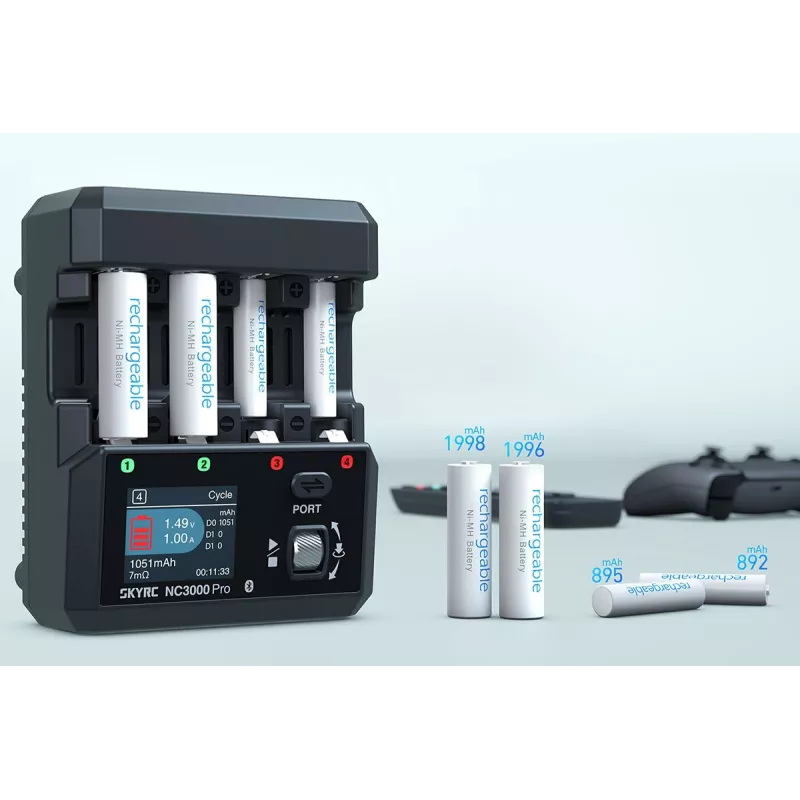

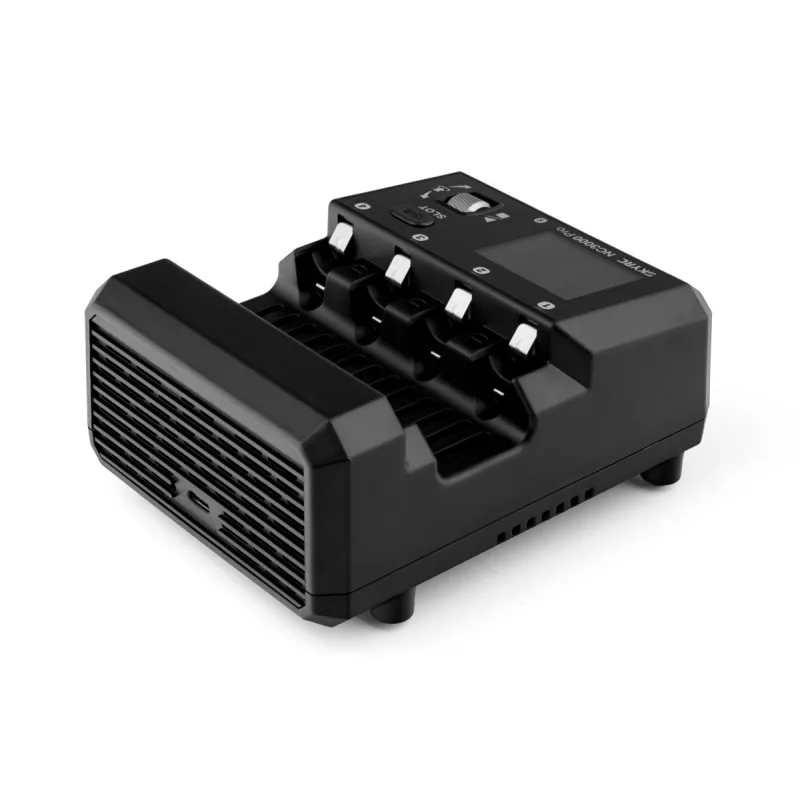

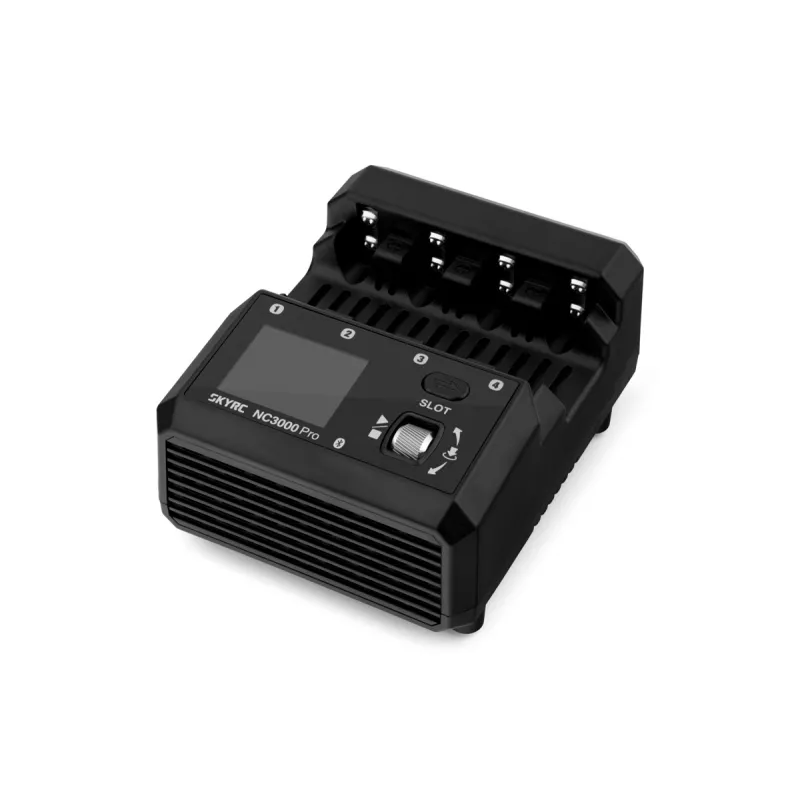

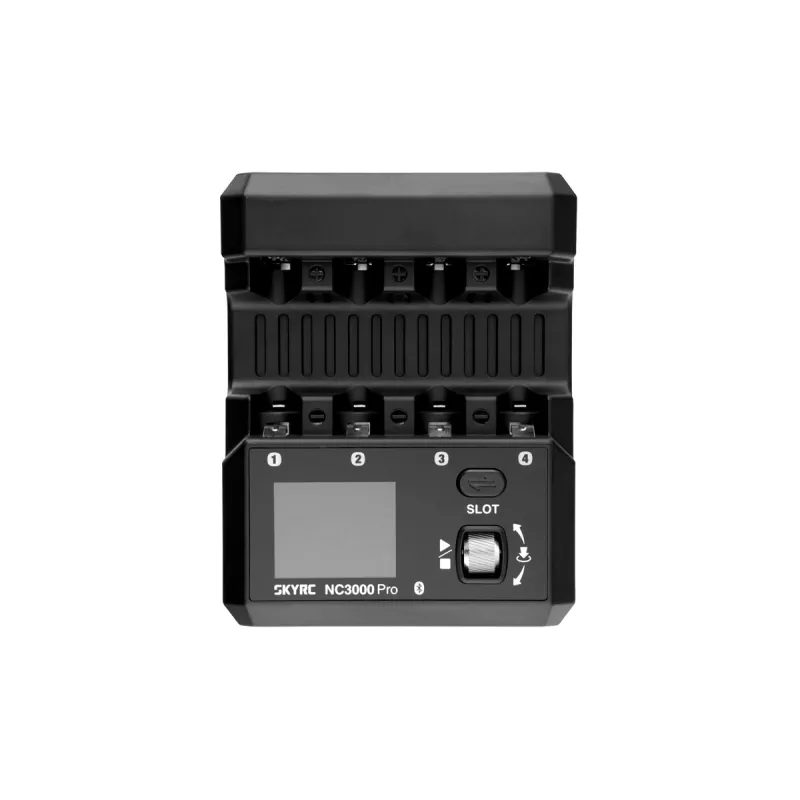

SKY RC NC3000 PRO charger

Multifunctional four-channel charger/discharger providing complete and truly comfortable care for your AA (pencil) and AAA (micropencil) NiCd and NiMH batteries. Intelligent charger programs will take care of your batteries from initial formation with a small current, through regular (fast) charging or discharging, cyclic charging/discharging (up to 3 cycles) to reviving long-term operated cells or, conversely, long-term stored ones. For power supply, you will need a USB-C mains power supply with QC2.0, PD/QC3.0 protocol.

The NC3000 PRO allows you to simultaneously - and independently - charge or discharge up to four different AA or AA batteries. If you are charging four identical batteries, you only need to set the parameters for one channel and then select simultaneous charging with the same parameters in all channels with one press of a button. The parameters of the ongoing process (charging/discharging current, charged/discharged charge, battery voltage, internal resistance) are continuously displayed for all channels on the LCD.

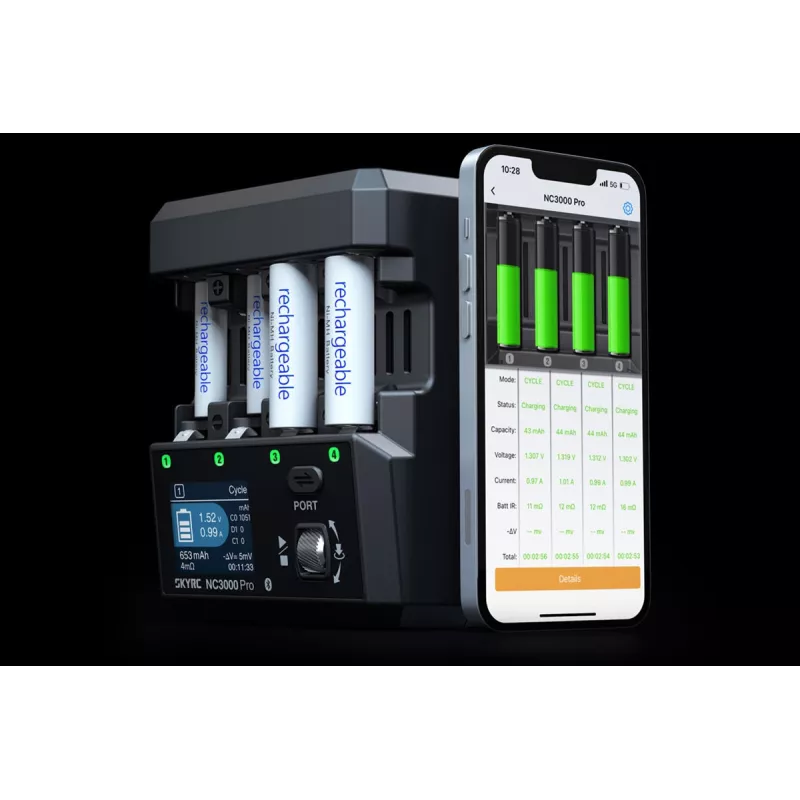

The NC3000 PRO is equipped with a Bluetooth interface that allows you to monitor the charging/discharging process in numerical and graphical form, control the charger using a smartphone or other mobile device with the iOS or Android operating system, and update the charger firmware.

NC3000 PRO has the ability to adjust the sensitivity of delta-peak detection, the final voltage for discharge and charge, the charging time. You can also choose current modes - either constant current charging or automatic current adjustment according to the internal resistance of the battery being charged.

Operating the charger and using your batteries will be made easier by detailed instructions describing the principles of proper charging and operation of NiMH and NiCd batteries.

Basic functions

• Power supply from USB-C power supply with QC2.0, QC3.0, PD3.0 protocol min. 30 W to fully utilize the charger's power
• For charging and discharging up to four AA or AAA NiCd/NiMH cells
• Adjustable charging current 0.2-3.0 A
• Adjustable discharge current 0.2-2.5 A
• Max. power for charging 22 W, for discharging 15 W
• Charging and discharging, shaping, cyclic charging/discharging, fast charging
• Ending charging using delta-peak automation
• Adjustable end voltage for both discharging and charging
• Adjustable delta-peak detection sensitivity 3–20 mV
• Repeated cyclic operation of charge/discharge or discharge/charge (up to 3 cycles) with adjustable delay between cycle phases
• Termination of charging or discharging when the set voltage, time, charge is exceeded
• Battery shaping (low current charging and discharging)
• Trickle charge 10-300 mA/off
• Setting parameters and navigating the menu using buttons on the charger or on a smartphone (iOS or Android operating system) via Bluetooth 5.0 interface
• LCD with simple and clear menu and display of parameters during charging
• Forced fan cooling
• Compact, sturdy plastic case

The charger kit includes: NC3000 PRO, instructions.
