KAVAN C20 Duo charger with balancer 2x100W

The small two-channel charger KAVAN C20 Duo is an intelligent charger with power supply from the mains and car battery and very simple and clear operation. KAVAN C20 Duo allows you to charge common types of cells (NiCd, NiMH, LiPo, LiHV, ULiHV, Li-ion, LiFe, Pb), in addition, it is equipped with built-in six-channel balancers that ensure safe charging of lithium batteries. The charger is equipped with a color LCD display and a programming wheel and button, which provide you with the possibility of comfortable and very clear parameter setting, control and monitoring of the charging process.

In addition to the compact, palm-sized design and intuitive operation, the following are worth special mention:

• program for new types of "high-voltage" lithium batteries LiHV with a final charging voltage of up to 4.35 V
• possibility of synchronous operation of both channels for charging two identical batteries
• adjustable final charging voltage for lithium batteries (allows for gentler charging, which pilots like, or, conversely, brutal overcharging, which "car enthusiasts" love)

Overview of basic functions and parameters

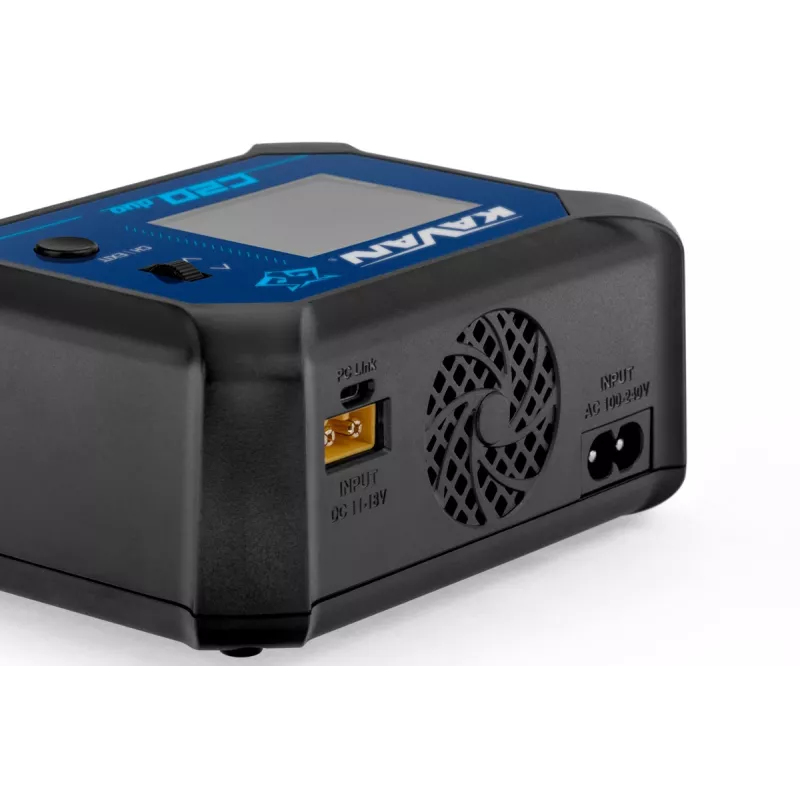

• Mains power supply 100-240 V/50-60 Hz
• Power supply 11-18 V DC (XT60 socket)
• For charging 1–16 NiCd/NiMH cells, 1–6 Li-ion/Li-poly/Li-Fe/LiHV cells or 2–24 V lead-acid batteries
• Adjustable charging current (0.1–10.0 A) in each channel (total max. 100 W when powered by mains, max. 2x 100 W when powered by a car battery or a powerful stabilized power supply)
• When powered by mains, it allows channels A and B to allocate available power (total max. 100W) in the ratio 100:0, 50:50, 0:100
• End of charging using automatic delta-peak for NiCd and NiMH batteries
• Lithium and Pb batteries are charged using the "constant current/constant voltage" method
• Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
• Adjustable end-of-charge voltage for lithium batteries
• The charging mode allows charging lithium batteries with or without a balancer.
• When powered from the mains, the charger can also be used as a stabilized DC power supply 17.5 V/max. 100 W.
• Easy firmware update via micro USB port

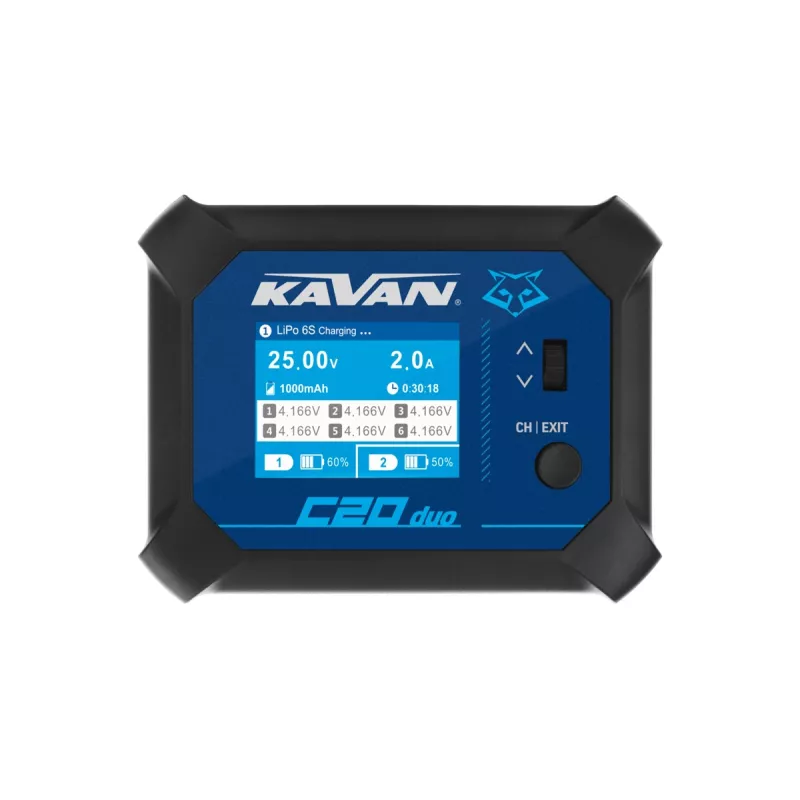

• Backlit color LCD display with simple and clear menu and display of parameters during charging
• Programming wheel/button and button for easy and clear settings and control of the charger
• A number of warning messages contribute to safe operation - incorrect input voltage, incorrect connection, unsuitable battery or its condition, incorrect output polarity, etc.
• Fan for forced cooling.
• Compact plastic box, small dimensions

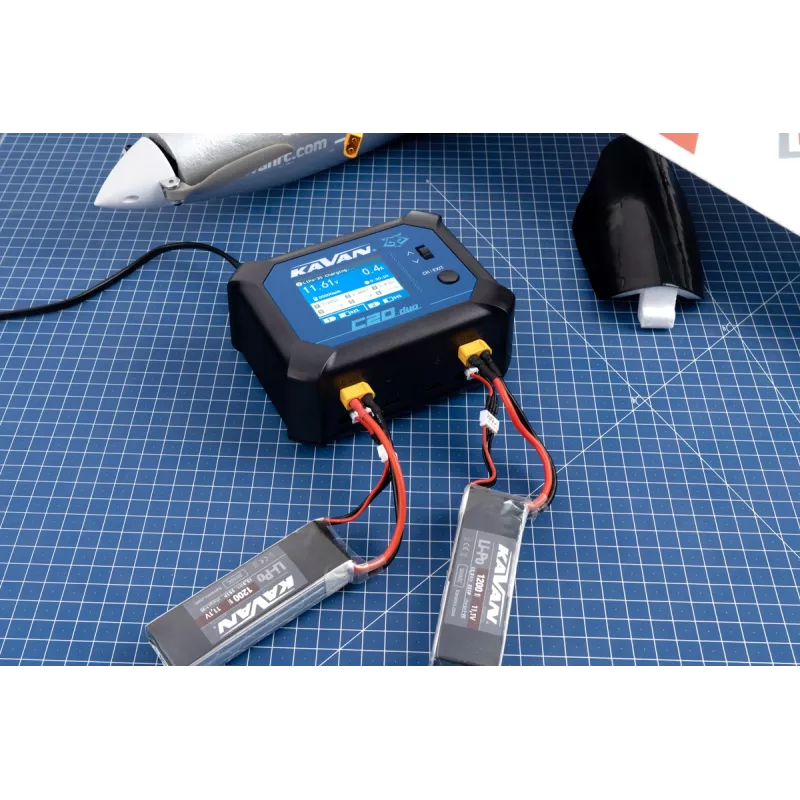

The charger is equipped with XT60 output sockets and universal sockets for JST-XH service connectors in both channels, allowing you to directly connect the battery power cables and JST-XH service connectors of 2-6S kits - if you use kits with XT60 and JST-XH connectors, you can do without charging cables and adapters. You can use standard Sky RC adapters to connect the service connectors of other systems.

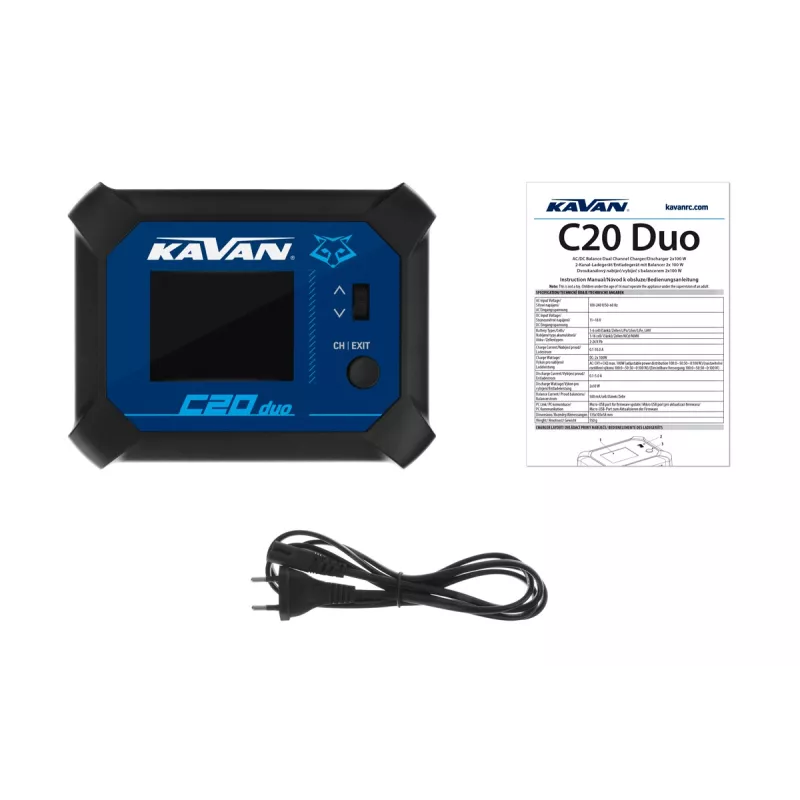

The charger set includes: KAVAN C20 Duo charger, power cable, instructions.

Online user manual: wiki.kavanrc.com
