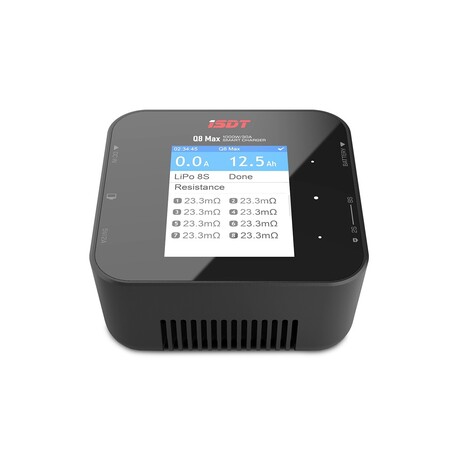

iSDT charger Q8 Max

The ISDT Q8 Max 1000W miniature charger is a high-performance intelligent charger powered by a car battery or a stabilized mains power supply and very simple and clear operation. Q8 Max allows you to charge and discharge common types of cells (NiCd, NiMH, LiPo, LiHV, Li-ion, LiFe, Pb), in addition, it is equipped with a built-in eight-channel balancer, which ensures safe charging of lithium batteries. The charger is equipped with a color LCD display and touch programming buttons, which will provide you with the possibility of comfortable and very clear parameter setting, control and monitoring of the charging / discharging process.

In addition to its small size with very high performance and intuitive operation, it is worth mentioning:

• program for new types of "high-voltage" lithium LiHV batteries with a terminal voltage for charging up to 4.35 V
• powerful balancer with current up to 1.5 A
• adjustable end voltage for charging and discharging for lithium batteries (allows more gentle charging, which pilots like, or, conversely, brutal overcharging, which is enjoyed by "toy cars")
• adjustable terminal voltage for charging for lead-acid batteries (2.00-2.45 V; allows charging of all types of lead-acid batteries)

Overview of basic functions and parameters

• 10-34 V DC power supply (XT60 socket)
• For charging and discharging 1 - 16 NiCd / NiMH cells, 1 - 8 Li-ion / Li-poly / Li-Fe and 1 - 7 LiHV cells or 2- 24 V lead-acid batteries
• Adjustable charging current 0.2 A - 30.0 A (max. 1000 W)
• Adjustable discharge current 0.2 A - 3.0 A (max. 30 W)
• End of charging using delta-peak automation for NiCd and NiMH batteries
• Lithium and Pb batteries are charged using the "constant current / constant voltage" method
• Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
• Adjustable charging and discharging voltage for lithium and lead batteries
• Three modes for lithium batteries - charging, discharging and storage charging / discharging; all with or without a balancer. In addition, a disposal discharge mode for safe discharge of a discarded battery before it is handed over for recycling
• The charger can operate as a stabilized power supply with an adjustable voltage of 2-30 V and a current of 0.5-5.0 A
• Easy firmware update via micro USB port
• USB 2.0 output 5 V / 2 A for powering / charging smartphones, etc.
• Backlit color LCD display with simple and clear menu and display of parameters during charging / discharging
• Programming touch buttons for easy and clear setting and control of the charger
• A number of warning messages contribute to safe operation - incorrect input voltage, incorrect connection, unsuitable battery or its condition, incorrect polarity at the output, etc.
• Forced cooling fan.
• Compact plastic case, miniature dimensions

The charger is equipped with an XT60 output socket and a universal socket for JST-XH service connectors allowing direct connection of battery power cables and JST-XH service connectors of 2-8S kits - if you use kits with XT60 and JST-XH connectors, you can do without charging cables and adapters. You can use standard Sky RC or RC System adapters to connect the service connectors of other systems.

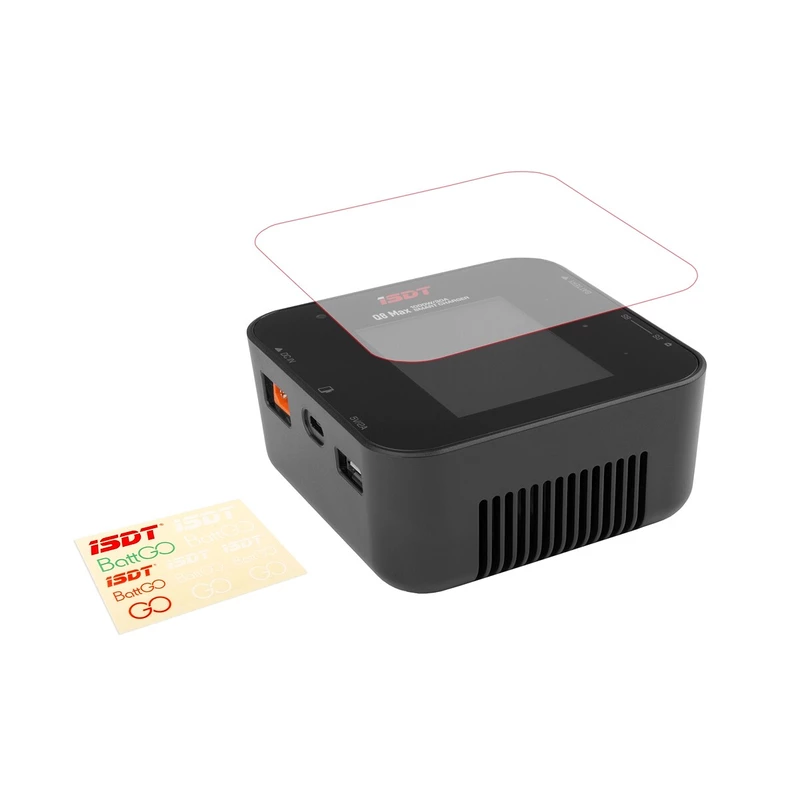

The charger set includes: ISDT Q8 Max charger, screen protector, instructions.
