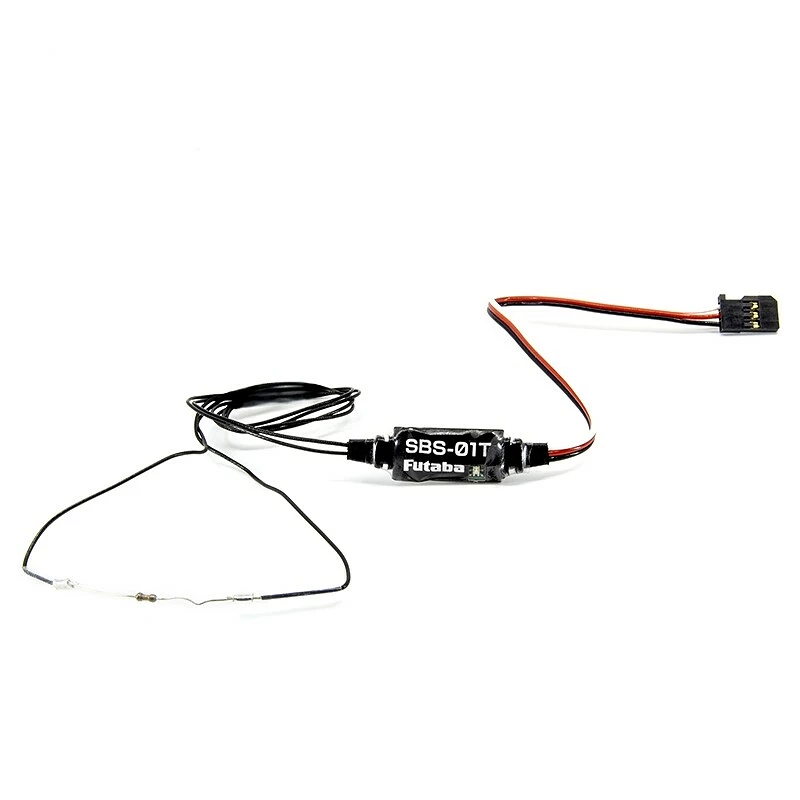

Telemetric temperature sensor for Futaba RC kits with telemetric transmission systems FASSTest, T-FHSS Air (for aircraft) and T-FHSS Surface (for cars). It allows temperature measurement in the range of -20 to + 200 ° C. Ideal for measuring the temperature of internal combustion engine heads and similar "high temperature" applications. The operating states of the sensor are indicated by an LED diode.
Compatible receivers: Futaba receivers with S.BUS2 port
Connection to the receiver: S.BUS2 socket.
Number of addresses required by the sensor: 1 *
Default address number setting (start address): 1 *
Transmitted telemetry data: Temperature measured by the sensor
Power supply: 3.7-7.4V (nominal battery voltage).
Sensor set includes: SBS-01T sensor with cables, instructions.
*) Telemetry sensors are identified on the S.BUS2 serial bus by an address number ("slot"); more complex sensors transmitting more than one data may require several consecutive addresses - in which case the first address belonging to a given sensor is called the start address.
| Power supply | 3.5-8.4 V |
| Temperature range | -20 - + 200 ° C |
| Length (with cables) | 535 mm |
| Mass | 4.7 g |
