MAV Sense EX5K
MAV0028
MAV Sense
Intelligent serial bus manager compatible with Futaba, Graupner HoTT, JETI, Multiplex and PowerBox systems. Converts the serial communication signal from up to two receivers either to standard PWM servo outputs (max. 5) or to configurable bus data outputs
Express delivery
Large selection of carriers
Satisfaction guarantee

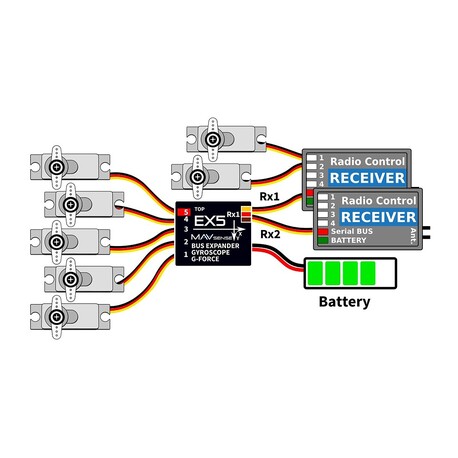

Servo Expander EX5K is an intelligent serial bus manager that is compatible with many radio control systems. The device converts the serial communication signal from up to two receivers either to standard PWM servo outputs or to configurable bus data outputs. It offers up to five configurable and high-load servo ports with selectable period and fail-safe settings.

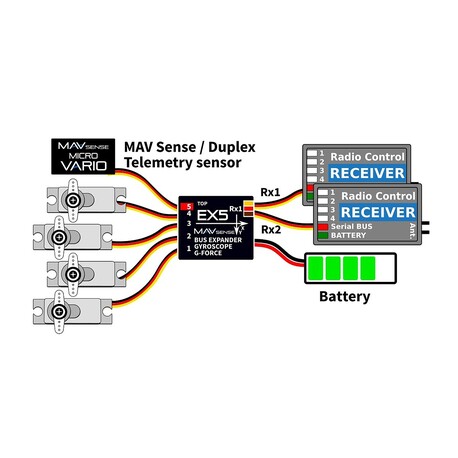

The EX5K enables flight stabilization using an integrated MEMS gyroscope/accelerometer. Up to three configurable flight modes can be used, each with different gains and stabilization settings. In conjunction with other MAVSense devices such as the SE4 or SE6, you can create a fairly complicated installation using very few signal/power cables.
Supported protocols:
| Brand of the receiver | Futaba | Graupner | JET | Multiplex | PowerBox |
| Supported input protocols | S.Bus | SUMD | EX Bus | SRXL 12k., SRXL 16k. | P2Bus |
| Output serial log | S.Bus | SRXL 16k. | EX Bus | SRXL 16k. | SRXL 16k. |
| Telemetry | No | HoTT telemetry | Yes | No | Yes |
| Settings | JETI BOX | SMART BOX, transmitter | JETIBOX, transmitter | JETI BOX | JETI BOX |
| Flight stabilization | Yes | Yes | Yes | Yes | Yes |
| Number of stabilized channels | Until the 16th | Until the 16th | Until the 16th | Until the 16th | Until the 16th |
Properties
- Small dimensions and high current carrying capacity thanks to built-in MR30 power connectors.
- 5-channel expander for servos or data buses.
- Flight stabilization offers up to 3 configurable flight modes.
- Flight stabilization for servo outputs, EX Bus, SRXL16k. or S.Bus.
- Stabilization gains tunable in flight.
- Automatic detection of stabilized channels - also use with mixes.
- Automatic detection of the installation position in the model.
- Telemetry (depends on RC system): temperature, voltage, position (tilt/tilt/direction), overload.
- Automatic detection of serial data/telemetry after startup.
- Configuration via transmitter or external terminal (JETIBOX/SMART-BOX).
- Firmware update via MAVSense USB interface.
The package contains: Servo expander EX5K, instructions.
| Power supply [V] | 4 - 14 |
| Current carrying capacity [mA] | 15000 - 0 |
| Length [mm] | 38 |
| Width [mm] | 26 |
| Height [mm] | 12 |
| Weight [g] | 14 |
