Power to the People

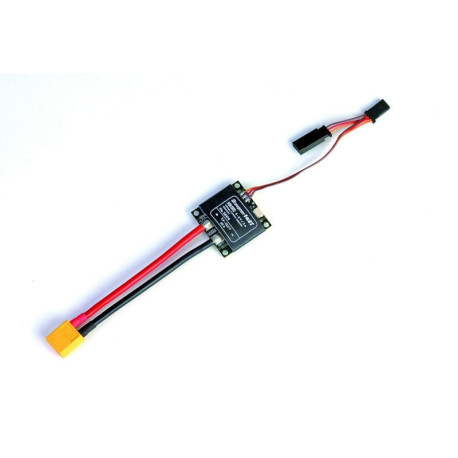

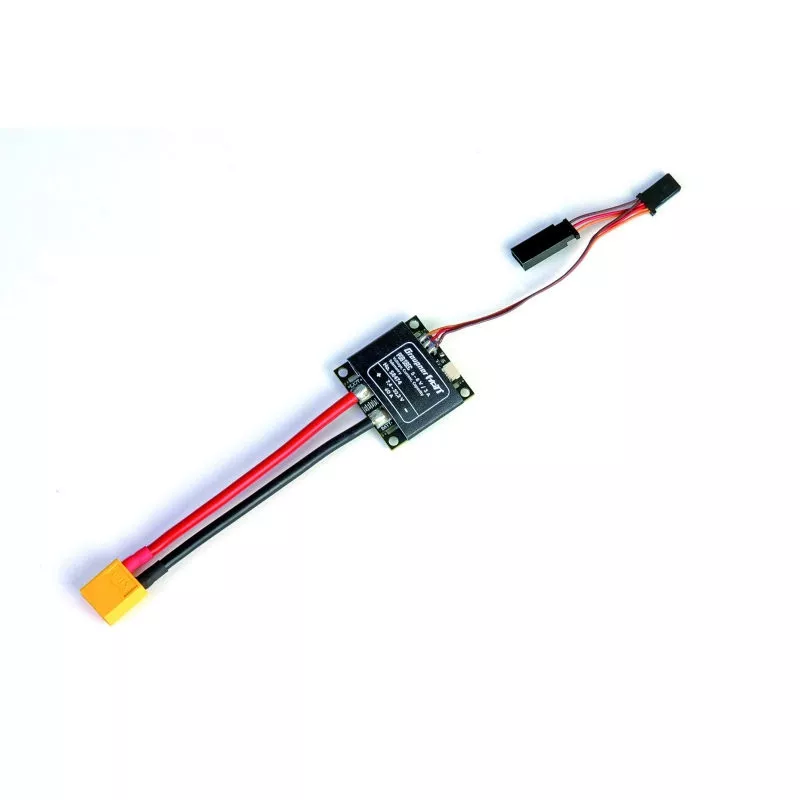

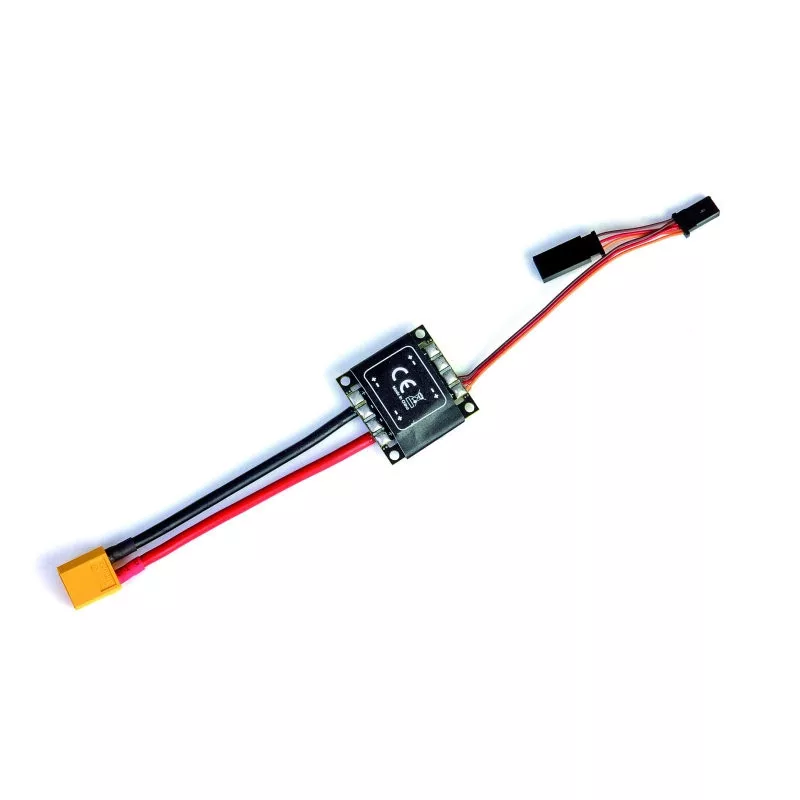

The Graupner Power Distribution Board (PDB) is the optimal board for power distribution for up to 4 controllers. The PDB is therefore ideal for quadcopters and other multicopters, but is also suitable for all other aircraft models.
The Graupner power distribution board measures current, voltage and capacity and transmits this data to the display of the HoTT transmitter and, if necessary, to the OSD. The board records all data in a log. This makes it easier to adjust the motor, propellers and battery.
The Graupner PDB allows the setting of three different undervoltage limits, e.g. for early activation of the Coming Home function and for safely returning the copter or aircraft to the base.
The board is equipped with an XT-60 connector. This makes continuous currents of up to 60 A possible - short-term current peaks of up to 100 A are no problem.
The power distributor weighs just 27 grams. The size of 35 x 35 mm can be reduced to 35 x 21 mm by cutting off the sides. The board fits perfectly into the pre-drilled mounting holes of common open source multicopter frames. The PDB has an XT-60 connector and 3 switching outputs. An LED module or FPV transmitter can be connected using the SH connector, for example. The connected modules and SBEC are set in the telemetry menu.
