KAVAN PRO/Plus programming card

The LED programming card for KAVAN PRO series controllers (also compatible with FOXY G2 controllers) for aircraft is used for easy and fast programming of controllers - at home "on the table" as well as at the airport. The controller is connected using a servo cable, the socket is located on the top of the box. The power supply of the card is provided from the BEC power stabilizer of the KAVAN PRO controller or from a common 4-5-cell. NiCd / NiMH or 2S LiPo / LiFe receiver battery connected to the box (in case of OPTO controller). Programming is performed with the connected motor and drive battery (even in the case of OPTO controllers).

ATTENTION: The KAVAN PRO LED programming card cannot be used for programming first generation FOXY controllers and the first generation FOXY programming card cannot be used for programming KAVAN PRO controllers.

KAVAN PRO flight controllers can be programmed in a model with a mounted propeller - but for safety reasons we still recommend removing the propeller during programming - this will prevent a possible accident in the event of an omission or operator error. In the same way, program the controllers in cars and boats safely mounted on a stand with wheels, resp. by propeller in the air or with the pinion or clutch of the ship's shaft removed.

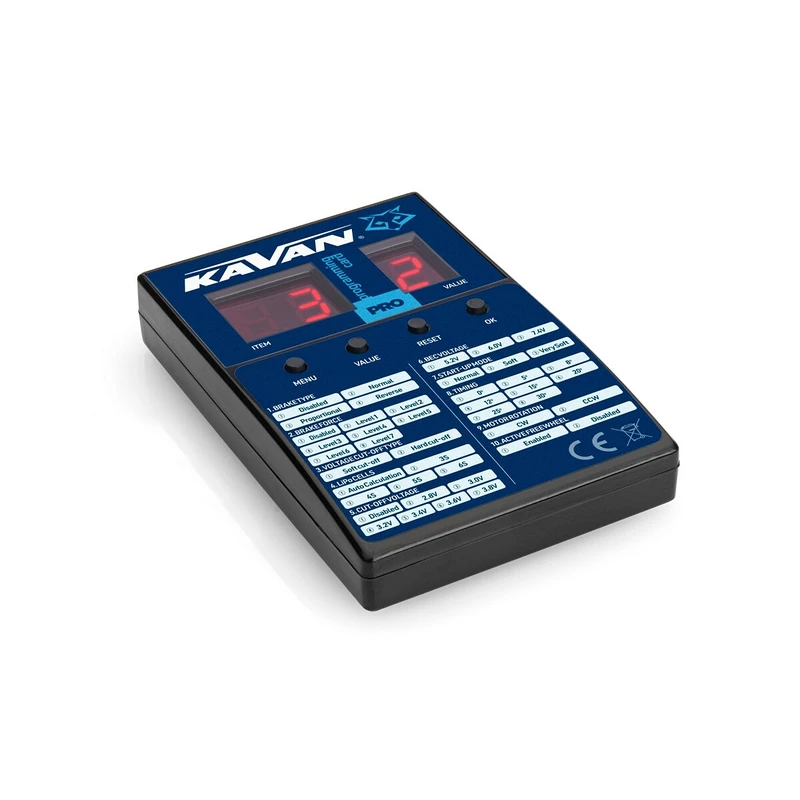

There are four buttons on the front panel of the card for programming. With their help, you select the program functions ("ITEM") for setting and set their value ("VALUE"). The "OK" button confirms the change made and sends it to the controller, the "RESET" button is used to clear all settings and return all values to the factory default settings. The program function number is displayed on the left of the two-digit LED display ("ITEM"), the function value is displayed on the single-digit LED display on the right ("VALUE").

The method of connecting the controller to the LED programming card depends on the type of controller - it differs depending on whether it is a controller with a BEC power stabilizer or an OPTO controller. When connecting, follow exactly the instructions supplied with the card and your controller.

The list of functions and adjustable values is given on the label on the card; a detailed description of the functions is given in the manuals supplied with the FOXY G2 controllers.

The programming card set contains: LED programming card KAVAN PRO, three-core programming cable, instructions.
