KAVAN Smart PRO MPSW15 Magnetic switch

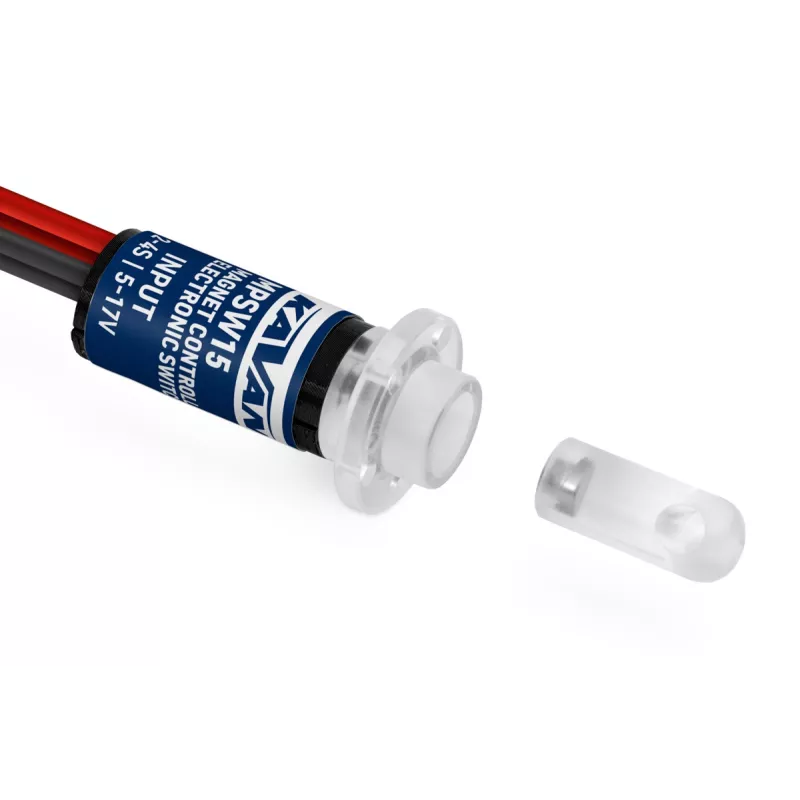

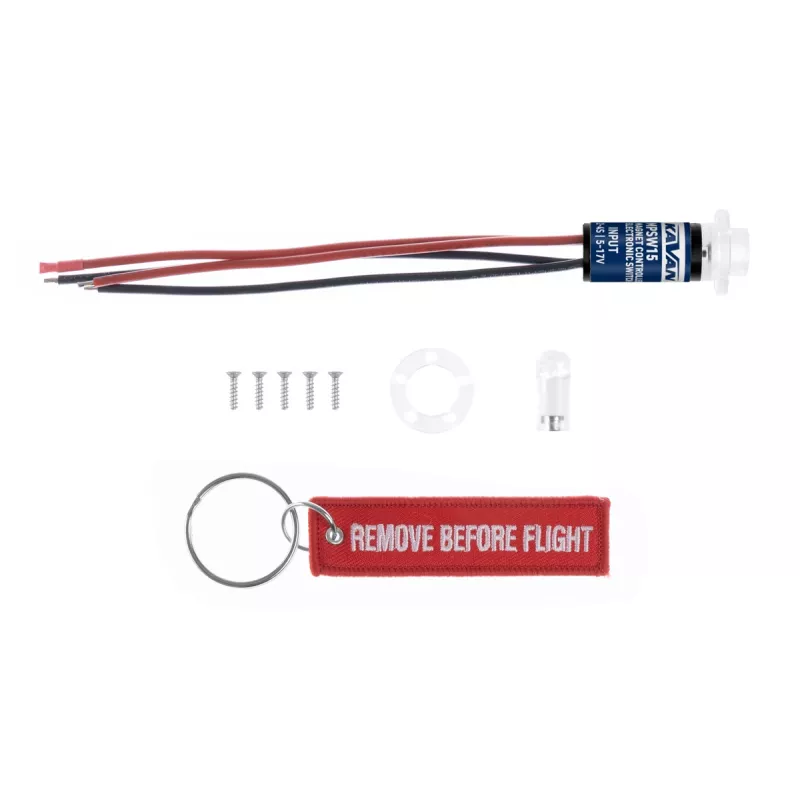

A powerful digital switch of the "Remove before flight" type. It works on the principle of magnetic control - by inserting the supplied activation pin with a magnet into the hole, the power supply is disconnected (circuit is disconnected). By removing the pin, the switch is closed and the powered circuit is activated. The on state is indicated by the LED indicator lighting up.

This system offers a safe and reliable solution for turning on receivers, ignition and other onboard devices without the need for mechanical contacts. Reliable and safe control using a magnet. Support for various types of loads, including inductive ones. The life of the non-contact switch is not limited by the number of switching operations or the current flowing through it.

Features:

• LED operating status indicator
• Reliable and safe control using a magnet
• No wear
• Quick and easy to use

Technical specifications:

• Dimensions: (O22.5/O15)×42 mm
• Weight including cables: 16 g
• Cables: 4×1 mm2 (17AWG)
• Connectors: –
• Continuous current: 15 A
• Peak current (2s): 25 A
• Current in the off state < 3 µA
• Operating temperature: (-20)-85 °C
• Switching voltage: 5–17 V
• Status LED: Yes

KAVAN Smart PRO MPSW15 Magnetic switch is manufactured in the Czech Republic by MAV Sense s.r.o.

Online instruction manual: wiki.kavanrc.com
