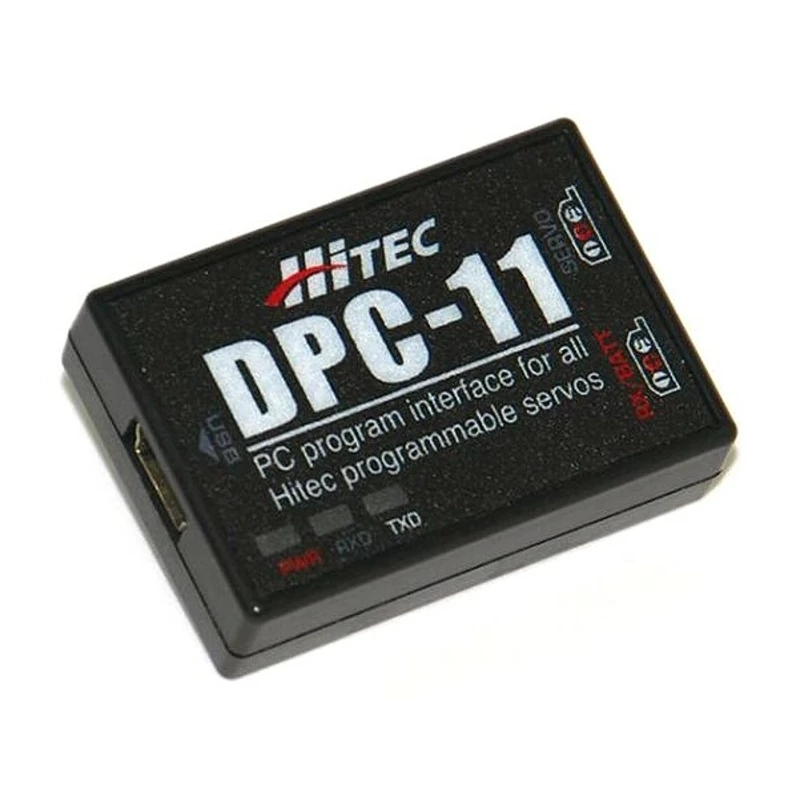

USB Interface - Universal Programmer and Tester for ALL PROGRAMMABLE SERVICE HITEC . This means that the DPC-11 can program the Dxxx series digital servos, the HSB-9xxx alternate servos and the HS-5xxx and HS-7xxx digital servos. Using a computer monitor as a user interface, you have a comfortably programmable and testing tool.

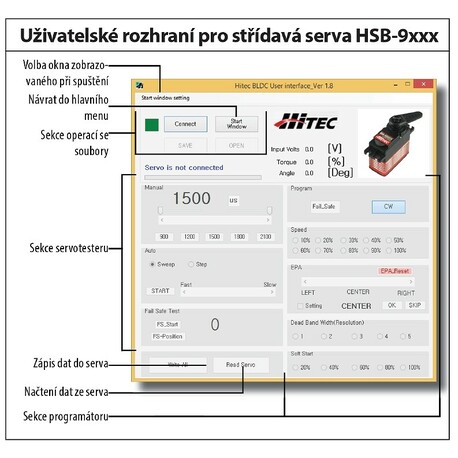

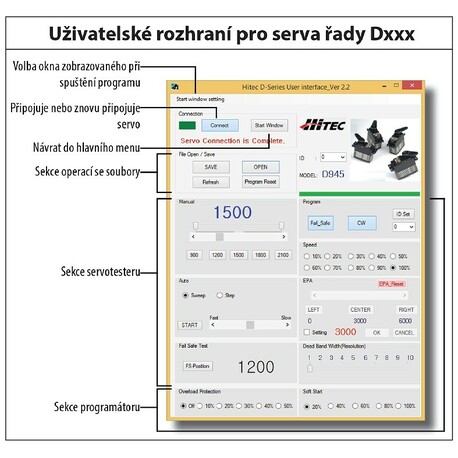

The servo is powered from the 4.8-7.4 V receiver (4-6 volt NiMH, 2S LiPo / LiFe / Li-ion) connected to the DPC-11 when programming / testing. All parameters are first set in the on-screen window and then uploaded to your servos. Then use the PC and the servo function to check the servo settings.
For use, you will need:
SERVOTESTER
Intelligent Tester for Parameter Testing of All Programmable Servers Hitec allows you to test the servo motion:
PROGRAMMER
With the help of the DPC-11 it is possible to program the following Hitec digital servo functions:
| Function | series D | HSB-9xxx | HS-5xxx / 7xxx |
| Servo ID number | Yes | - | - |
| Exit and Center Endpoints (EPA) | Yes | Yes | Yes |
| The meaning of deflections | Yes | Yes | Yes |
| Fail-Safe | Yes | Yes | Yes |
| Deadband | Yes | Yes | Yes |
| Speed | Yes | Yes | Yes |
| Soft start | Yes | Yes | - |
| Overload protection | Yes | - | Yes |
| Distinction | - | - | Yes |
| Saving and retrieving parameter files | Yes | Yes | Yes |
| Reset servos to factory defaults | Yes | from the file | Yes |
The set of programmers includes: programmer DPC-11, instructions" / p>
| Power supply (Rated) [V] | 4.8 - 7.4 |
| Length [mm] | 36 |
| Width [mm] | 25 |
| Height [mm] | 10.5 |
| Weight [g] | 7 |
