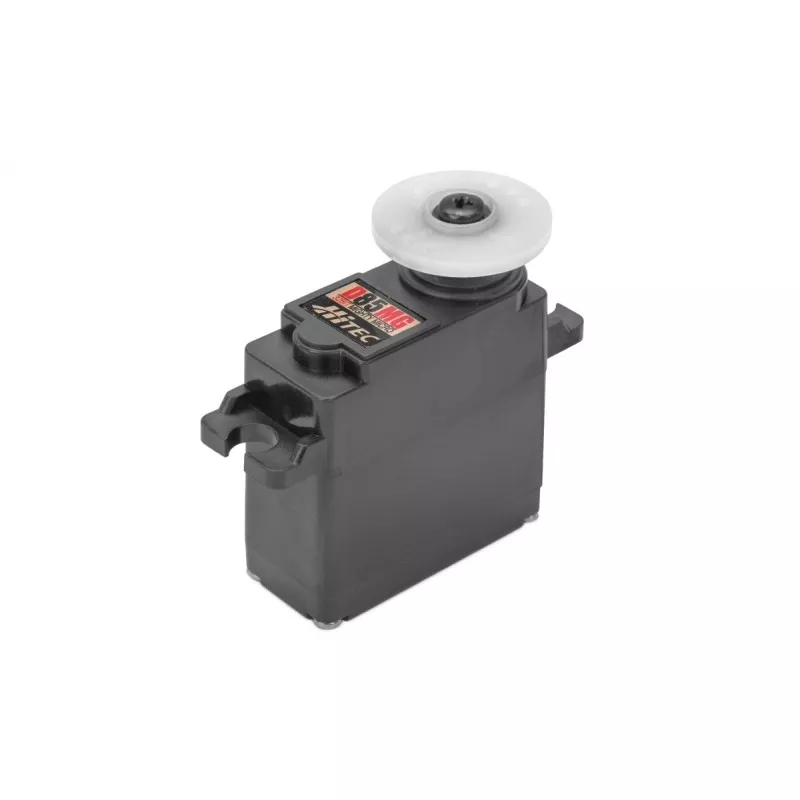

D85MG strong digi microservo (4.3kg)

Servo Hitec D Series

The new Hitec D series digital servos combine the ultra-fast response, accuracy and high resolution of 4096 steps of the HS-8xxx servo series with HS-7xxx servo programming options. In fact, existing servos far outweigh the 32-bit processor and the 12-bit ADC converter.

32bit MCU / 12bit ADC

The new 32-bit Hitec processor coupled with a 12-bit analogue-to-digital converter that converts the signal from the feedback potentiometer offers the best response between servos for RC models so far. You can also use the universal PC interface DPC-11 (applicable to all Hitec programmable servos) to fine-tune your D-Series servo drives to maximum performance (scaling, resolution, fail-safe, soft start, etc.) in a wide range of applications.

Soft start

The soft start protects the servo and the rudder control mechanism when the onboard electronics is switched on - the servo slowly moves to the neutral position after switching on - no sudden twisting

Smart

New control algorithm to prevent spontaneous servicing of the servos in the "sharp" setting of the servo's deadband, saving gears and reducing current consumption.

Programmable features

With the new DPC-11 Programmer / USB Interface, you can set a number of D servo parameters for the perfect servo adaptation of your application. Series D servos have a consistently high resolution; with the "EPA" function, you can set the servo deflection range up to 180 ° (with the control signal with 0.9-2.1 ms pulses). Programmable values \u200b\u200bare:

• reset to factory defaults
• deadband bandwidth (adjustable in 10 steps)
• sense of rotation
• speed of rotation
• neutral
• soft start
• displacement size (up to 180 °)
• enable or disable fail-safe
• the fail-safe emergency setting
• overload protection (0-50% overload limitation)

D85MG

Very powerful microservo with metal gears with output shaft mounted on one ball bearing for use in RC models of all types." Standard supply voltage 4.8-6.0 V. The 13 mm height box is particularly suited for controlling ailerons and dampers in RC glider models.

It will replace HS-5085MG in the future.
