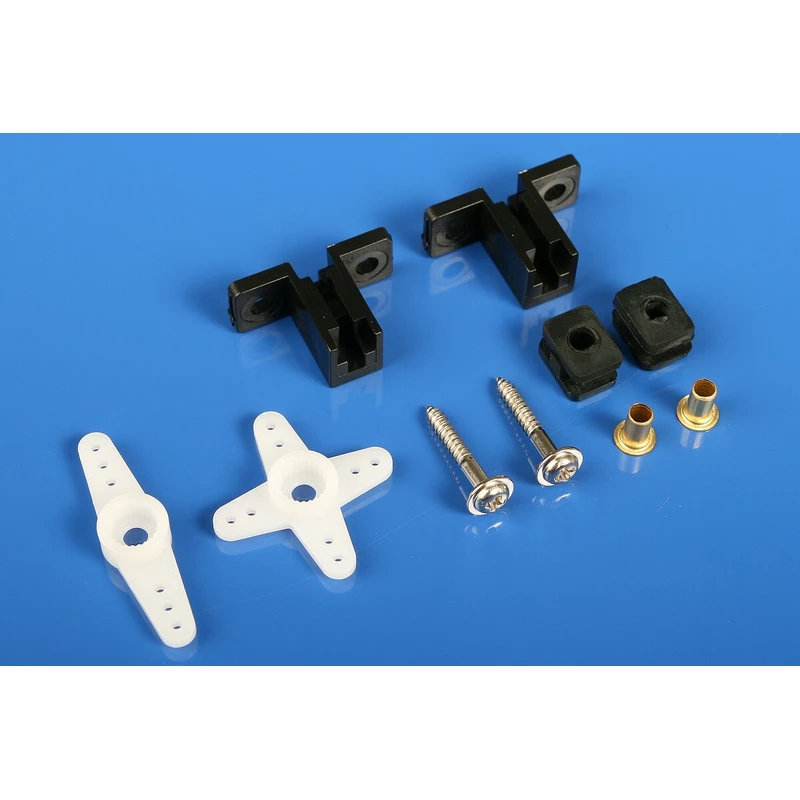

Feet for side mounting microservo. 1 pair.

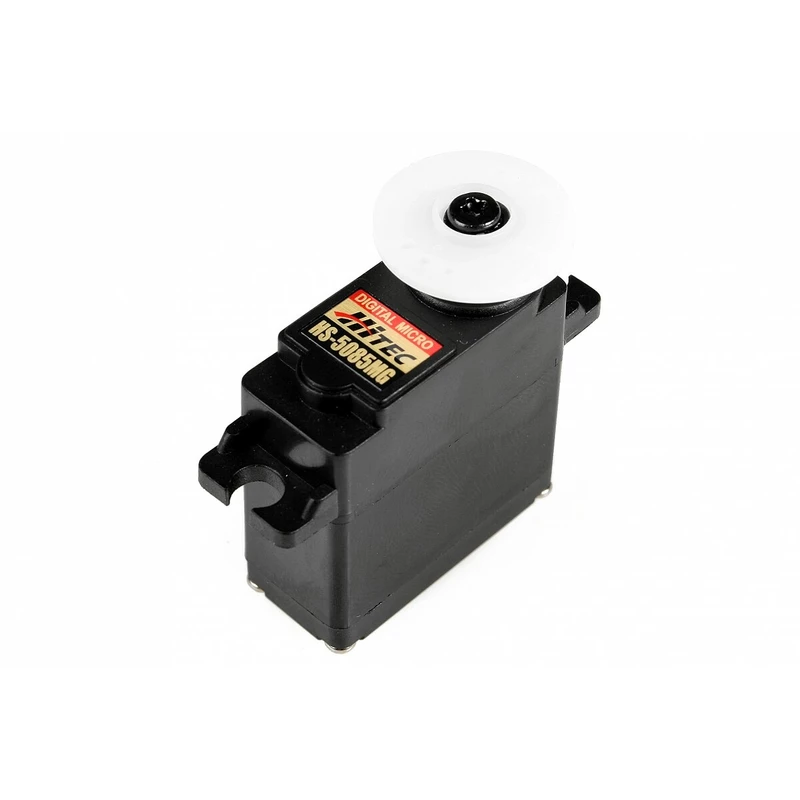

HS-5085MG DIGITAL
1HI3179
Hitec
Strong digital microservo 22g with metal gears for electroplanes and gliders. 1xBB, thrust 3.6 kg/cm, speed 0.17s/60st at 4.8 V. Programmable.
Express delivery
Large selection of carriers
Satisfaction guarantee
Strong digital micro servo with metal gears for electric motor, motor gliders and small and aerobatic models and elektrovrtulníky. The digital version of the proven servo HS-85 mg.
Programmer * digital servos Hitec HFP-10 HFP-20, HPP-21 or HPP-21 Plus can be programmed:
- reset to factory defaults,
- the width of the deadband
- sense of rotation
- rotational speed
- neutral
- the deflection
- enable or disable fail-safe
- Setting emergency deflection fail-safe
- Overload protection (power limit 0-50% Overload)
*) Note .: Hacker older HFP-10 can not be programmed overload protection and resolution of the servo.
| size servos | Micro |
| type servo | digital |
| Move at 4.8V [kg / cm] | 3.6 |
| Move at 6.0V [kg / cm] | 4.3 |
| The speed at 4.8V [s / 60st.] | 0.17 |
| The speed at 6.0V [s / 60st.] | 0.13 |
| transfers servos | a metal |
| Ball bearings | 1xBB |
| High-voltage | No |
| [V] | 4.8 - 6 |
| Length [mm] | 29 |
| Width [mm] | 13 |
| Height [mm] | 30 |
| Weight [g] | 21.9 |
| Intended for | aircraft, helicopters, road cars, sailboats, boats |
- Kuličková ložiska
- 1×
- Délka [mm]
- 29
- Hmotnost [g]
- 21.9
- Šířka [mm]
- 13
- Výška [mm]
- 30
- Velikost serva
- Micro
- Typ serva
- Digitální
- Tah při 4,8 V [kg/cm]
- 3.6
- Tah při 6,0 V [kg/cm]
- 4.3
- Rychlost při 4,8 V [s/60st.]
- 0.17
- Rychlost při 6,0 V [s/60st.]
- 0.13
- Převody serva
- Kovové
- Highvoltage
- Ne
- Napájení [V]
- 4.8 - 6
- Určeno pro
- Letadla,Vrtulníky,Silniční auta,Plachetnice,Lodě
