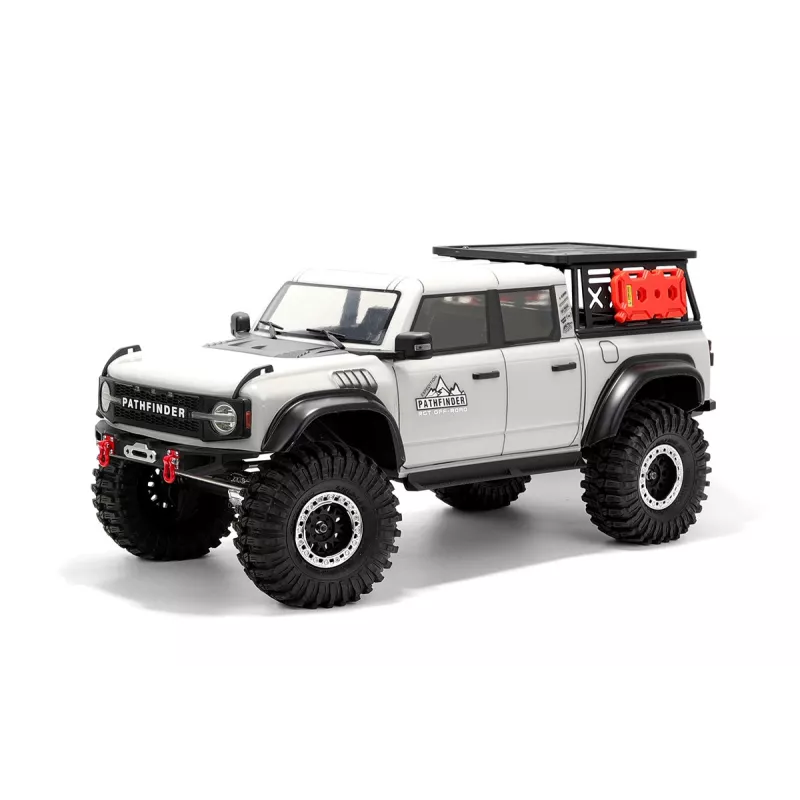

RGT PATHFINDER

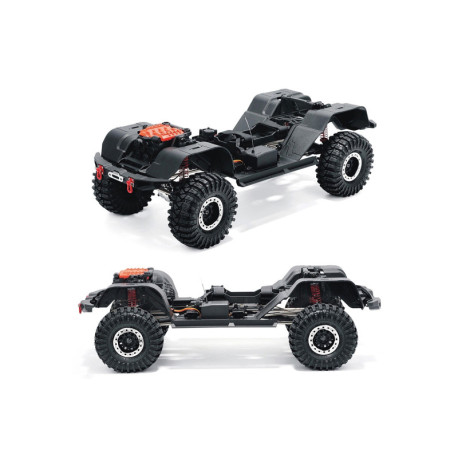

The Pathfinder is a brand new 1/10 scale expedition model based on the LC76 chassis platform (RESCUER model) and aims to build a rock crawler with a long wheelbase. The 355 mm long wheelbase gives the vehicle a smoother and more stable driving experience.

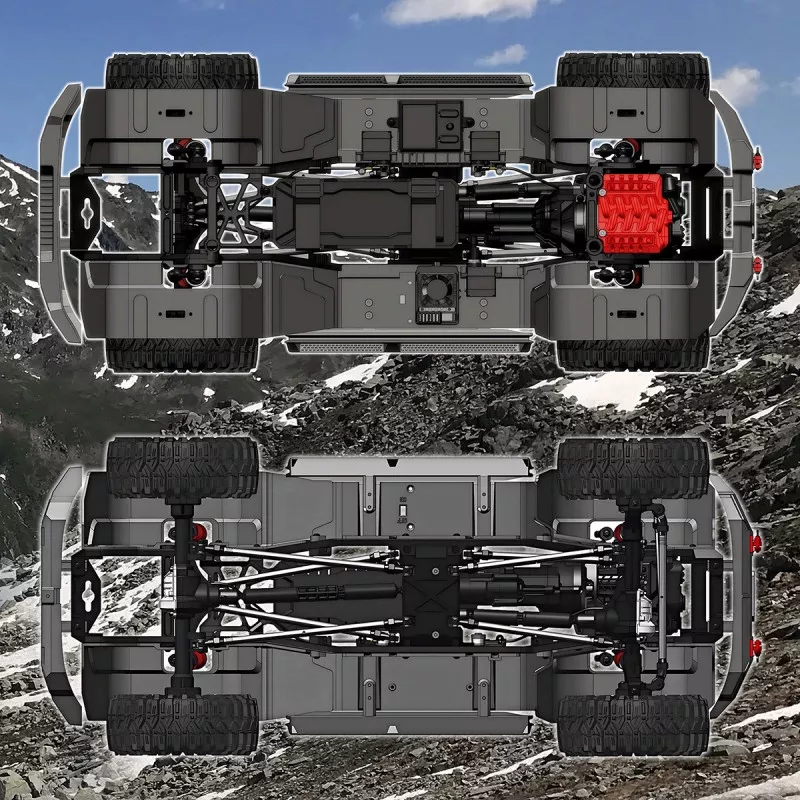

The Pathfinder is equipped with a front and rear integrated portal axle structure, front and rear differential lock function and a two-speed reverse gear.

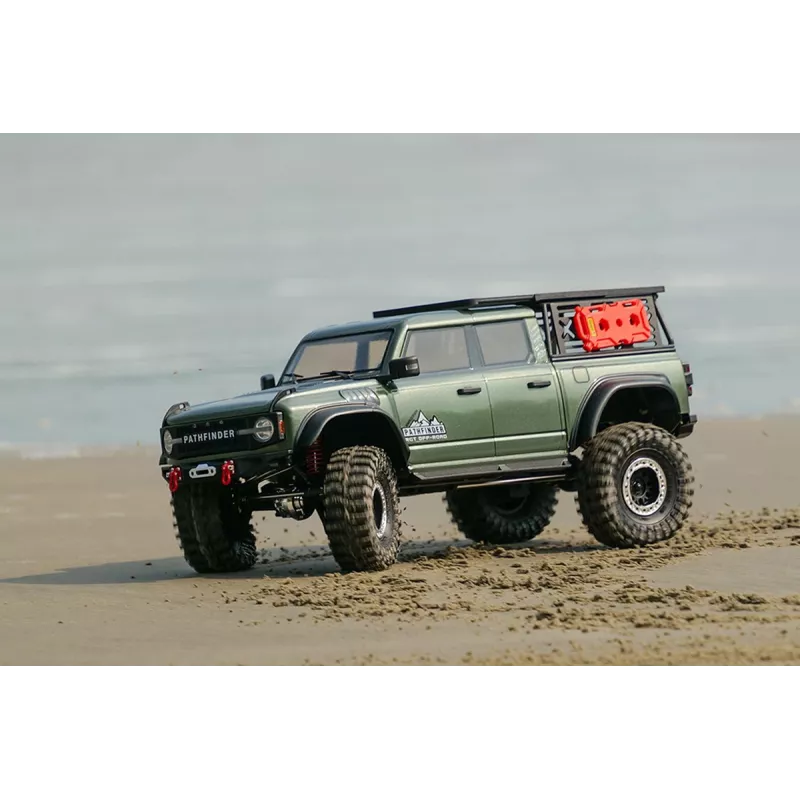

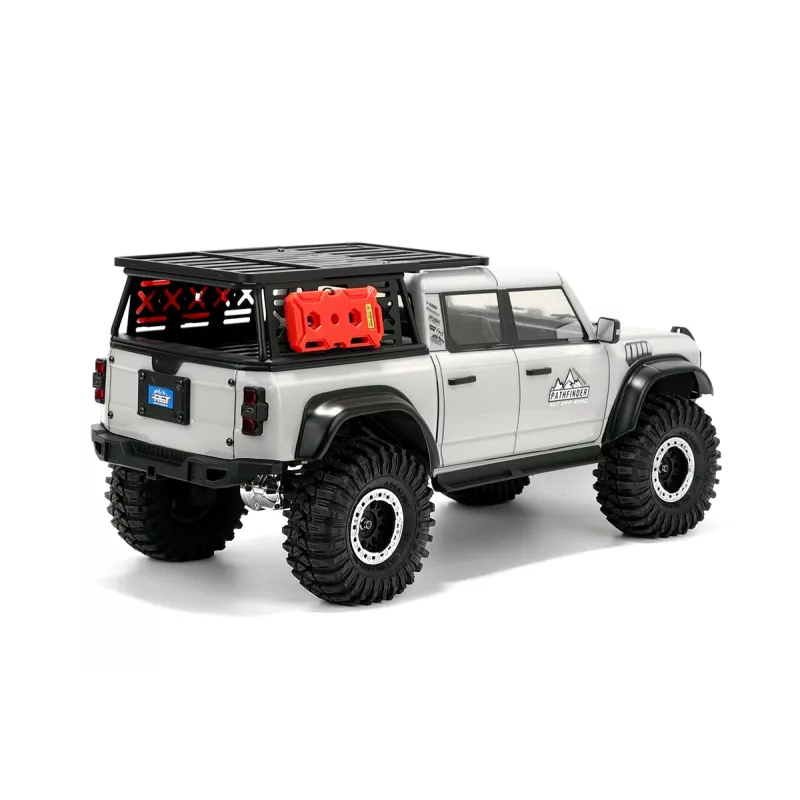

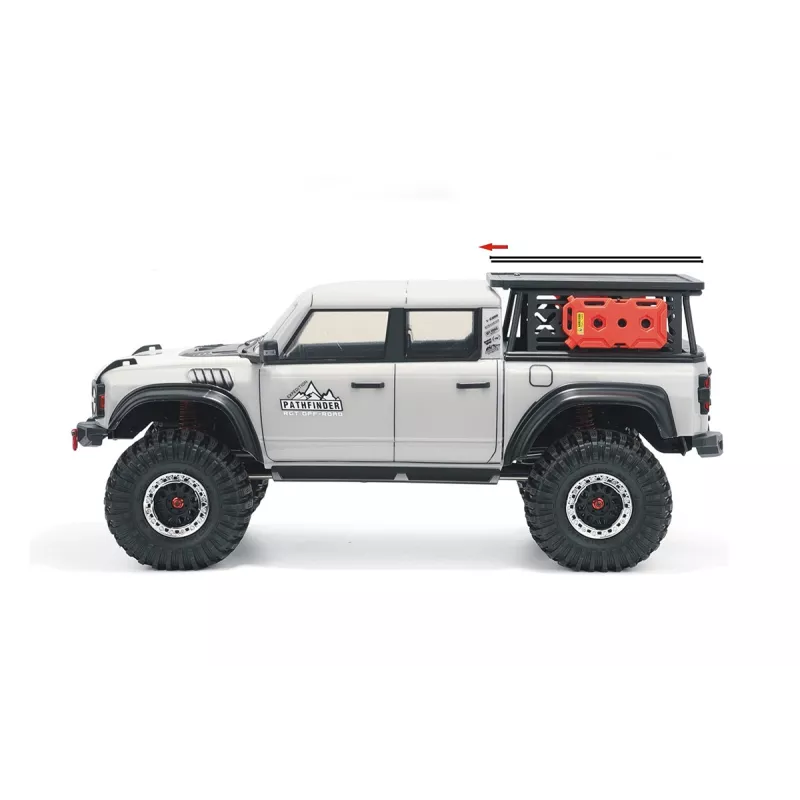

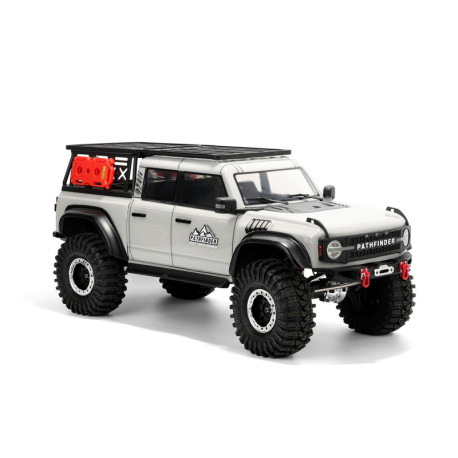

The body has been given a pickup appearance, which makes the overall center of gravity lower and provides a greater approach angle of the vehicle. It comes with a 1.5 mm thick polycarbonate body incl. interior. It is equipped with a multifunctional nylon luggage rack that can be freely combined with various outdoor model equipment.
Considering the needs of drivers who want to handle a heavy load, the Pathfinder is equipped with a high-performance 80A speed controller, which is standardly used for 1/8 cars, a 7.4V BEC output, and an RC550 motor.
The Pathfiner comes with a multi-mode LED light system and a 6-channel 2.4GHz remote control. It has 4 powerful servos with metal gears, including a 30kg steering servo.
Features:
- Front mounted motor and 2-speed gearbox with reverse rotation.
- Portal axles with reduction gears and 42 degree steering angle.
- Independently controlled front and rear differential locks.
- Fully equipped with ball bearings, durable metal gears and friction clutch.
- Adjustable oil filled metal "piggyback" shock absorbers with dual springs.
- 1.5mm lexan body with transparent windows, accessories, hidden pillars and dedicated LED light module with magnetic connector.
- Realistic 1.9 inch wheels.
- Powerful 20T RC550 DC motor, 80A HobbyWing controller and 30Kg strong waterproof servo with metal gears.
- 2.4GHz 6-channel radio with buttons for controlling the gearbox servos, 2 servos for controlling the differential locks and an LED light module.
The package set includes:
- Assembled model ready to drive
- 2.4GHz RC steering wheel set
- Model accessories
Required accessories: 4xAA batteries for the transmitter, 7.4V LiPo or 11.1V LiPo drive battery and a suitable charger.
** Spare parts that are not in our offer can be ordered from the manufacturer upon request. You can find a complete list of them in the manual.
| Scale | 1:10 |
| Wheelbase [mm] | 355 |
| Width [mm] | 248 |
| Height [mm] | 250 |
| Length [mm] | 566 |
| Weight [kg] [kg] | 3.68 |
| Transmitter batteries | 4×AA |
| Frequency [GHz] | 2.4 |
| Servo gears | Metal |
| Li-Po [cell] | 2 |
| Li-Po [cell] | 3 |
