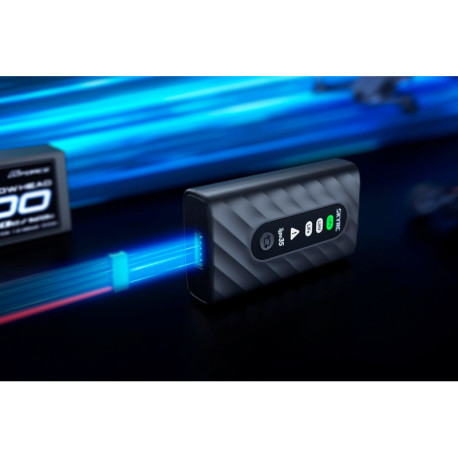

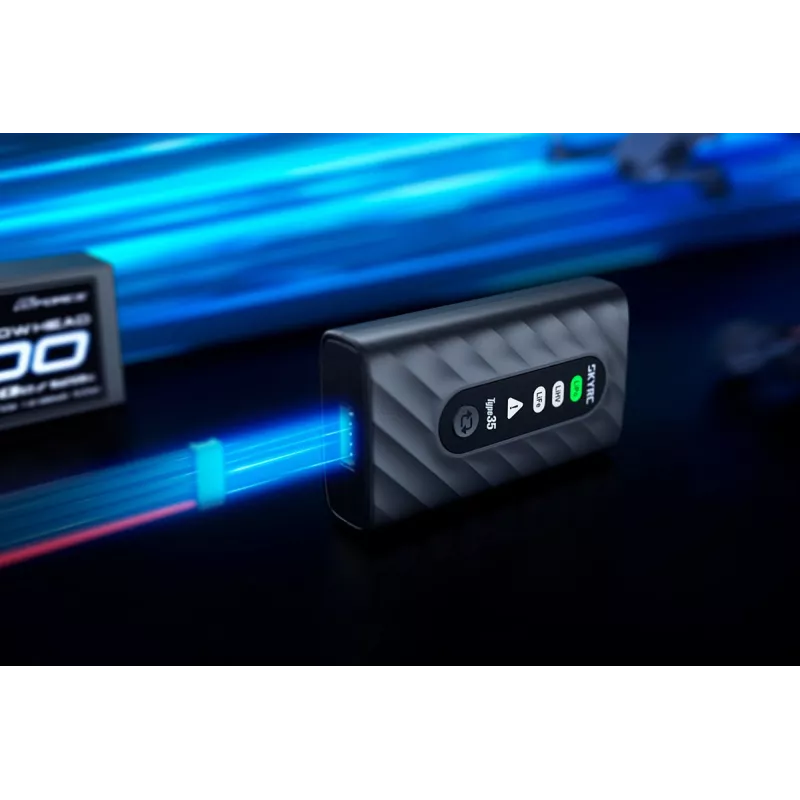

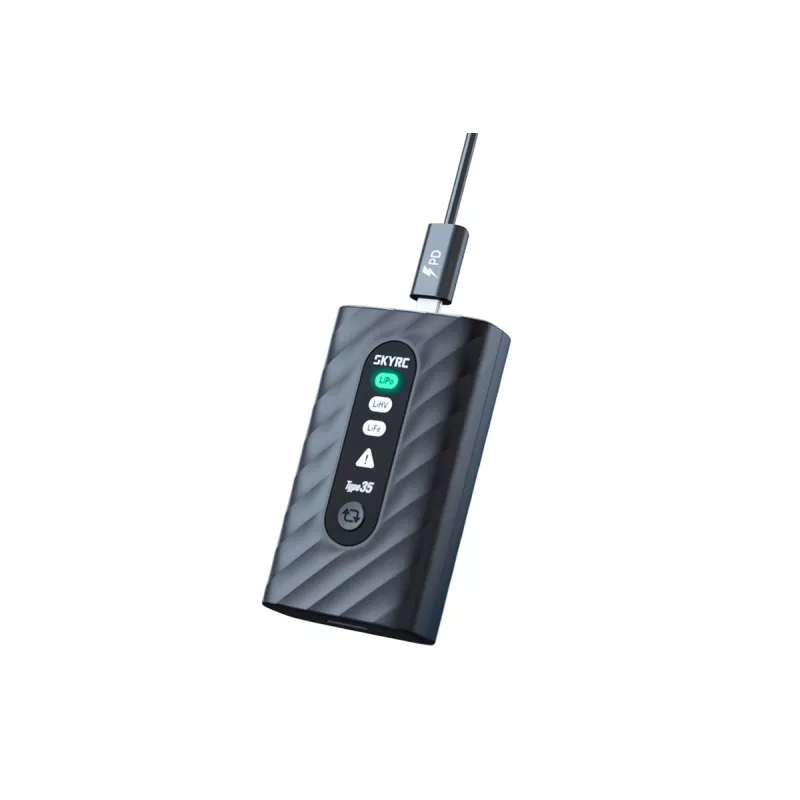

SKY RC Type35 2-4S charger 35W

The SKY RC Type35 charger with a built-in balancer is a very simple "box" charger for recreational riders and flyers powered by a USB-C source with the PD3.0 protocol for charging 2-4S LiPo, LiHV and LiFe batteries. It is an ideal addition to "set" kits, allowing easy charging at home or an excellent companion on trips when you don't want to "drag" a large, heavy and expensive charger with you. The charged battery is connected via the JST-XH system service connector.

Basic functions

• USB-C PD3.0 power supply (9-20 V - supply voltage must be higher than the maximum voltage of the charged battery, i.e. for example for 3S LiPo it must be more than 12.6 V)
• For charging 2-4S LiPo, LiHV, LiFe cells
• Charging current max. 2 A
• Max. charging power 35 W
• Charging using the "constant current/constant voltage" method (LiPo final voltage: 4.20 V, LiHV: 4.35 V, LiFe: 3.65 V)

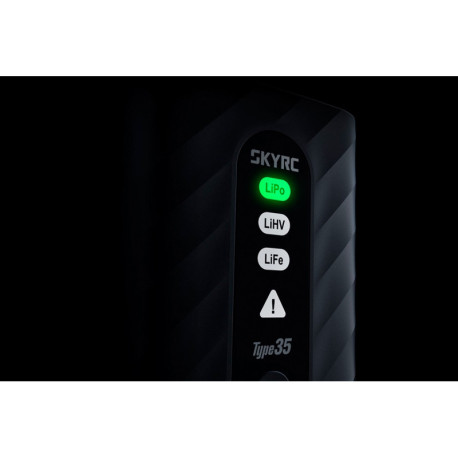

• Charger operating states signaled by LED diodes
• Reports error states (large voltage difference between individual cells, cable breaks, low supply voltage, thermal protection)

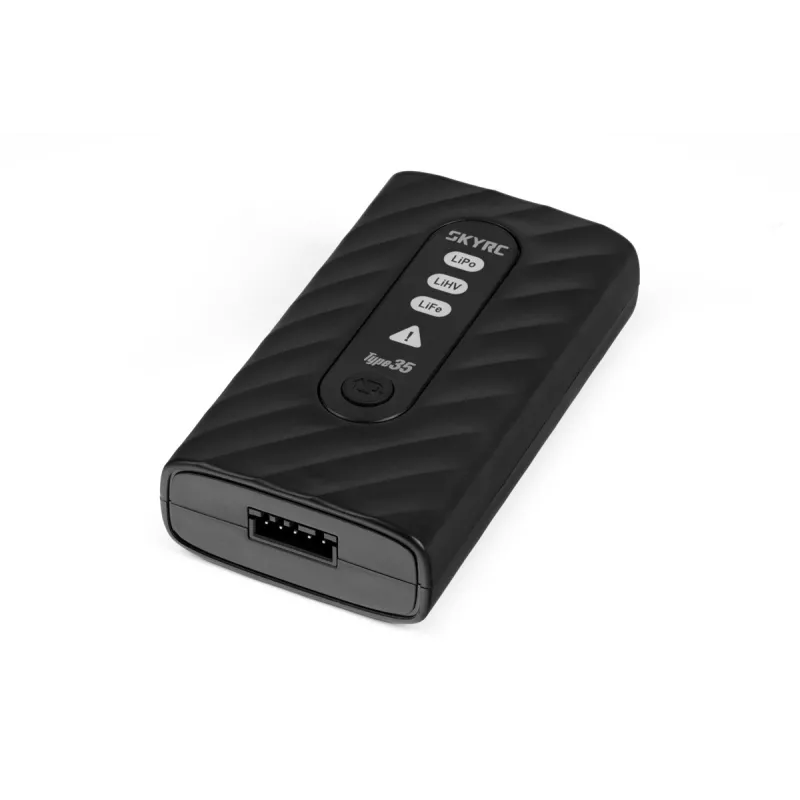

• The charging connector is a universal JST-XH 2-4S
• Compact plastic case, pocket-sized

The charger set includes: SKY Type35 charger, instructions.
