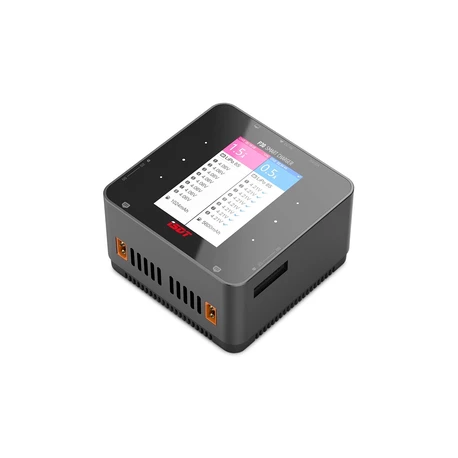

iSDT charger P30

The high-performance two-channel charger ISDT P30 1500W is an intelligent charger powered by a car battery or a powerful stabilized power supply and very simple and clear operation. P30 allows you to charge and discharge common types of cells (NiCd, NiMH, LiPo, LiHV, ULiHV, Li-ion, LiFe, Pb), in addition, it is equipped with built-in eight-channel balancers, which ensure safe charging of lithium batteries. The charger is equipped with a color LCD display and touch programming buttons, which will provide you with the possibility of comfortable and very clear setting of parameters, control and monitoring of the charging process.

In addition to compact design and intuitive operation, it is worth mentioning:

• program for new types of "high-voltage" lithium batteries LiHV with terminal voltage for charging up to 4.35 V and ULiHV with terminal voltage 4.45 V
• powerful balancer with current up to 1.5 A
• possibility of synchronous operation of both channels for charging two identical accumulators or parallel charging of one accumulator with power up to 1500 W
• adjustable end voltage for charging and discharging for lithium batteries (allows more gentle charging, which pilots like, or, conversely, brutal overcharging, which is enjoyed by "toy cars")
• adjustable terminal voltage for charging for lead-acid batteries (1.90-2.45 V; allows charging of all types of lead-acid batteries)
• Bluetooth module for wireless setting and control of the charger on a smartphone in the isdGO application

Overview of basic functions and parameters

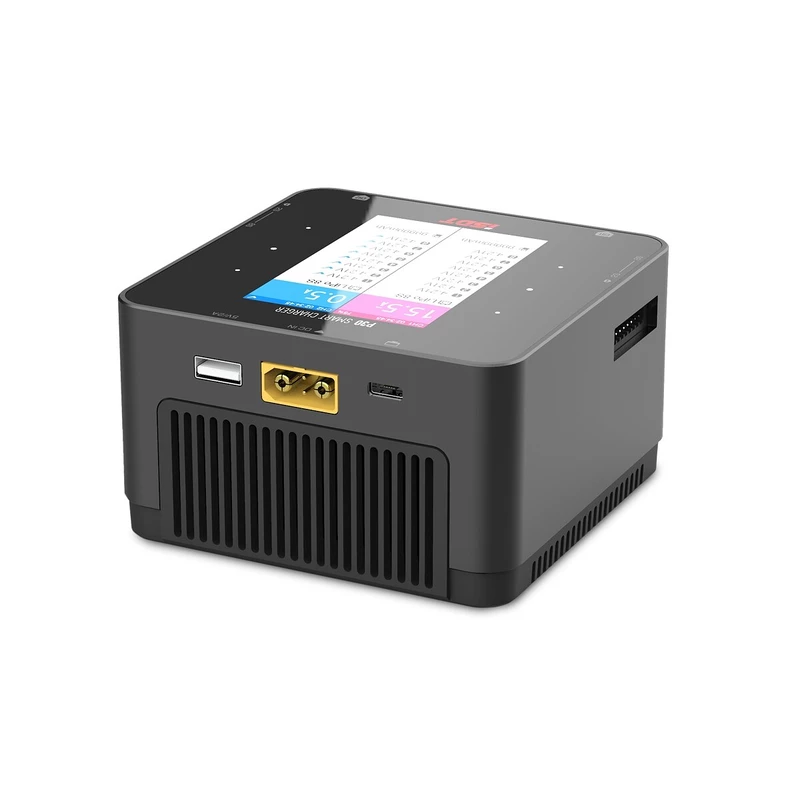

• 10-34 V DC power supply (XT90 socket)
• For charging 1 - 16 NiCd / NiMH cells, 1 - 8 Li-ion / Li-poly / Li-Fe and 1 - 7 LiHV / ULiHV cells or 2- 24 V lead-acid batteries
• Adjustable charging current (0.2 A - 30.0 A) in each channel (one channel max. 1000 W, whole charger max. 1500 W)
• Adjustable discharge current 0.2 A - 3.0 A in each channel
• Max. power for discharging 2x 30 W
• End of charging using delta-peak automation for NiCd and NiMH batteries
• Lithium and Pb batteries are charged using the "constant current / constant voltage" method
• Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
• Adjustable charging voltage for lithium and lead batteries
• Three modes for lithium batteries - charging, discharging and storage charging / discharging; all with or without a balancer. In addition, a disposal discharge mode for safe discharge of a discarded battery before it is handed over for recycling
• Channel CH1 can operate as a stabilized source with an adjustable voltage of 2-30 V and a current of 1.0-5.0 A
• Easy firmware update via USB-C port
• USB 2.0 output 5 V / 2 A for powering / charging smartphones, etc.

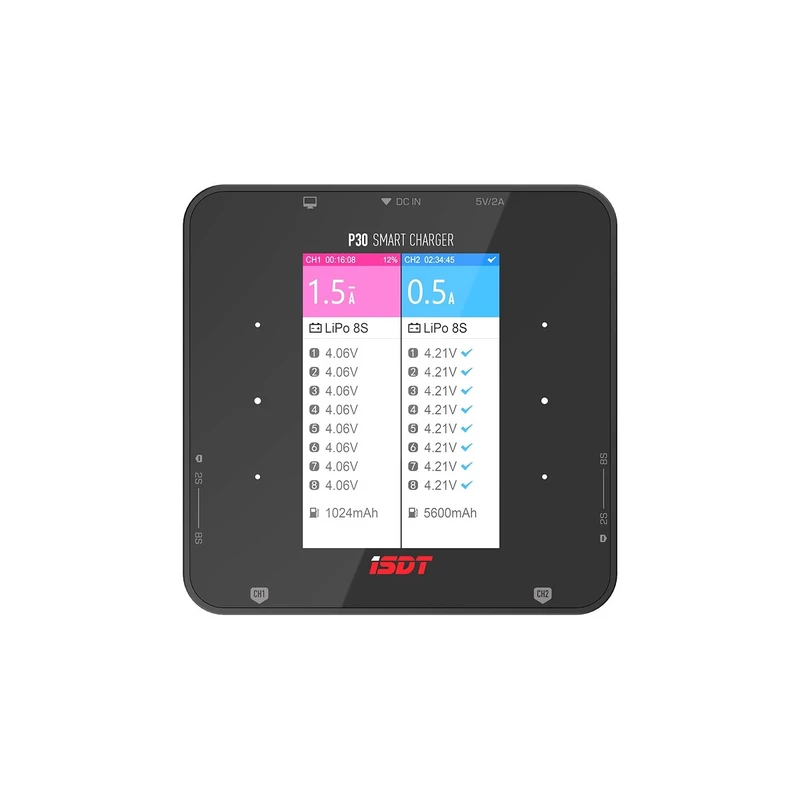

• Backlit color LCD display with simple and clear menu and display of parameters during charging
• Programming touch buttons for easy and clear setting and control of the charger
• A number of warning messages contribute to safe operation - incorrect input voltage, incorrect connection, unsuitable battery or its condition, incorrect polarity at the output, etc.
• Forced cooling fan.
• Compact plastic case, small dimensions

The charger is equipped with XT60 output sockets and universal sockets for JST-XH service connectors in both channels, enabling direct connection of battery power cables and JST-XH service connectors of sets 2-8S - if you use sets with XT60 and JST-XH connectors, you can do without charging cables and adapters. You can use standard Sky RC or RC System adapters to connect the service connectors of other systems.

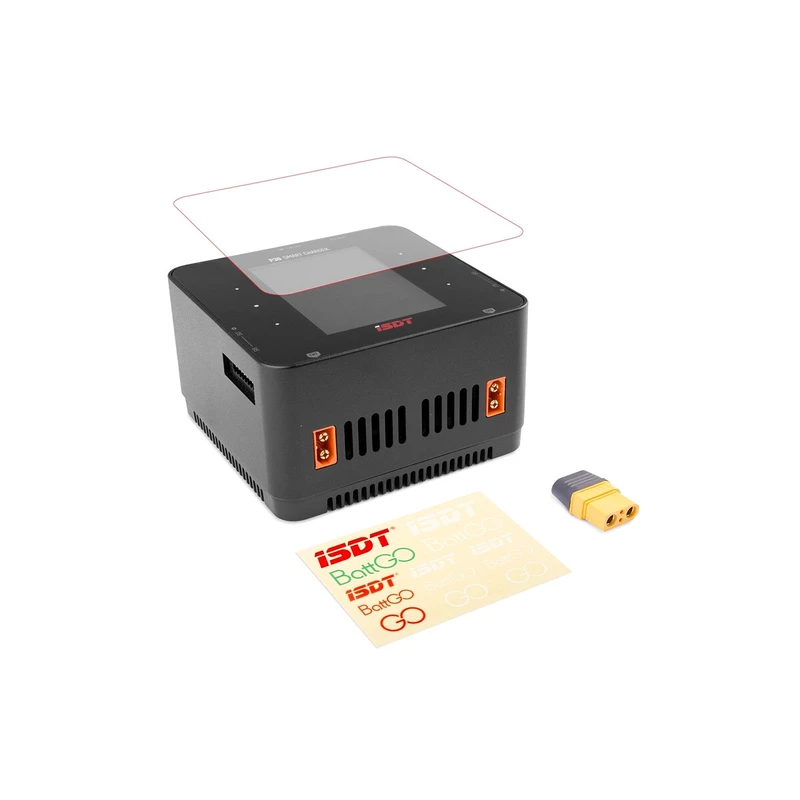

Charger set includes: charger P30, connector XT90, screen protector, instructions.
