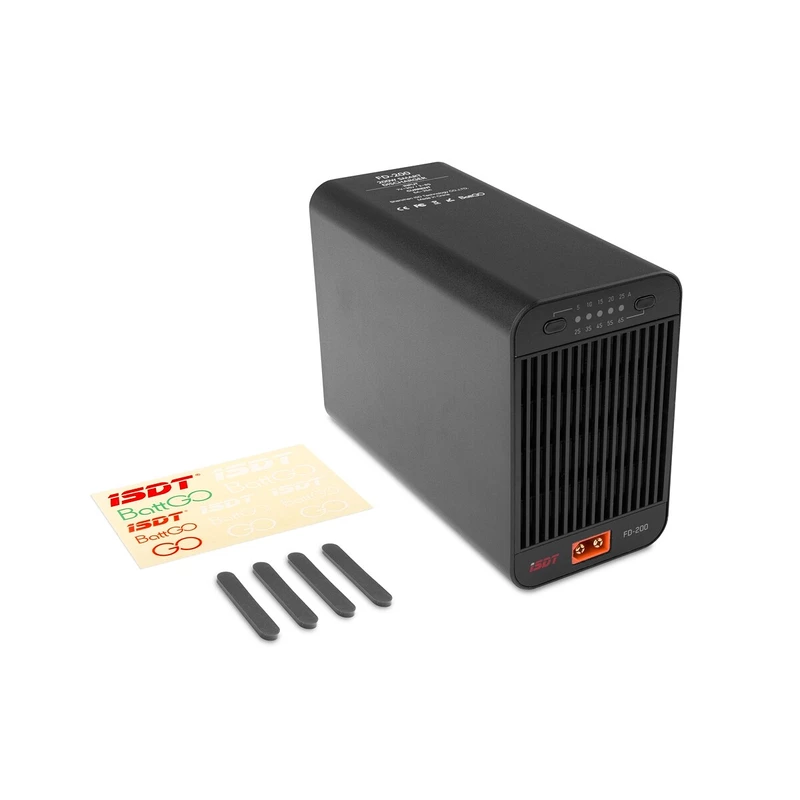

iSDT FD200 discharger 200W

The FD-200 is a powerful discharger that allows you to discharge lithium batteries with 2-8 cells (7-35 V) with a current of 5-25 A (at a maximum power of 200 W). It is an ideal complement to chargers that do not have discharge or storage discharge functions. for wireless parameter setting, it is equipped with a Bluetooth module enabling connection to a smartphone with the isdGO application (for Android and iOS operating systems).

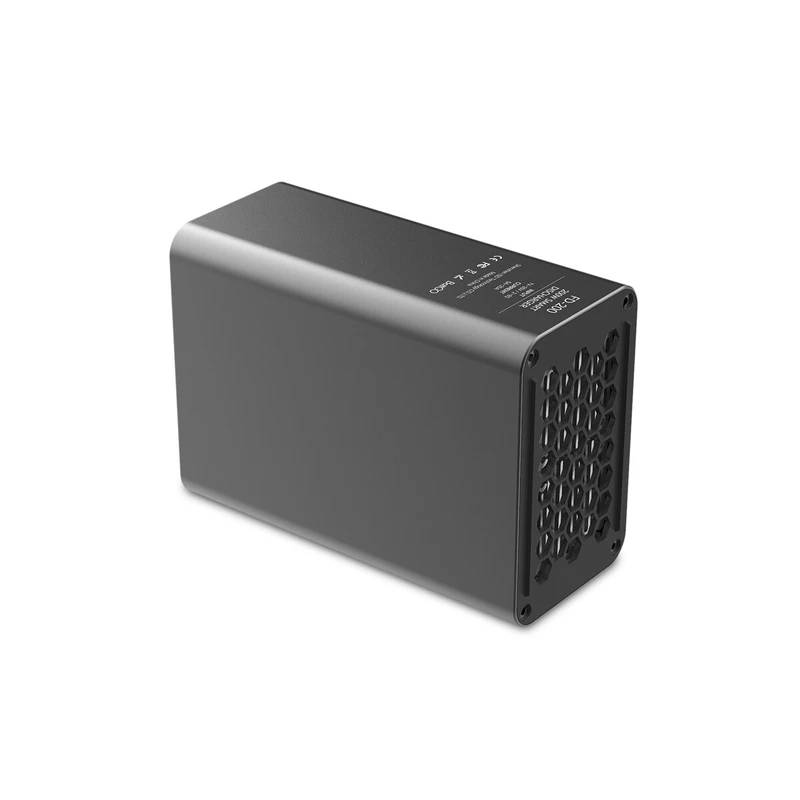

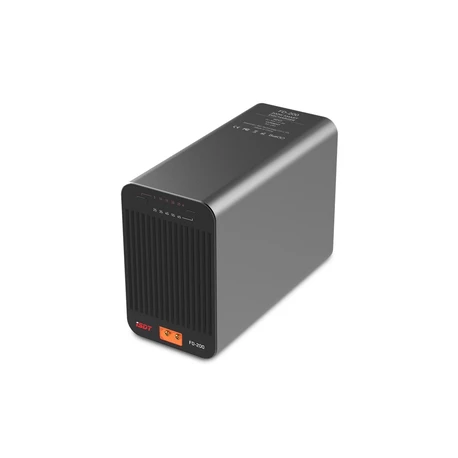

The FD-200 is built into a rugged metal case with a powerful fan for efficient forced cooling and uses an XT60 connector to connect the tested battery.

FUNCTION

• Two buttons with a series of LEDs are used to select and signal the number of cells and the discharge current.
• The final discharge voltage (3.3-3.8 V / cell) is set using the isdGO application on a smartphone connected via Bluetooth. By default, the final voltage is 3.8 V per cell.
• Saves time if the user wants to put the high capacity battery in a condition for long-term storage.
• Helps keep batteries in top working condition for competitive purposes.
• It is equipped with thermal overload protection for safe operation; indicates incorrect battery voltage or incorrectly set number of cells.

Discharge kit includes: Discharger FD-200, instructions.
