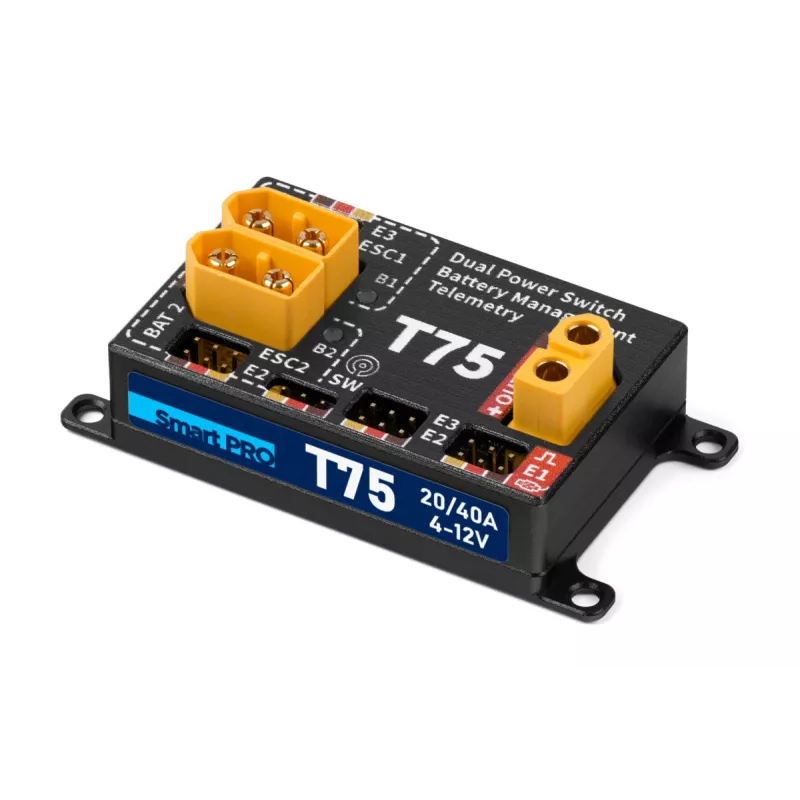

KAVAN Smart PRO T75 Switch 2 batteries with telemetry expander

The T75 is a powerful digital power backup system with a voltage of 5-8.4 V and a continuous current of up to 20 A, which also offers advanced telemetry functions. Includes charging circuit and touch switch function. The device is ideal for medium-sized models where e.g. HV servos directly without voltage stabilization.

The T75 is suitable for models equipped with either two receiver batteries or a regulator with voltage stabilization (BEC) in combination with a small backup battery. The device prefers its primary battery input, automatically switching to the secondary input in the event of a voltage drop. The charging circuit can optionally be activated to charge the backup battery from the primary input/BEC circuit.

The T75 is designed to turn on/off the electronics in your model, and you can completely replace the mechanical switch with it. The device remembers its last operating state, and if the battery is accidentally disconnected, the T75 will automatically restart and turn on when the battery is reconnected.

Function:

• Intelligent dual battery/multiplexer input with configurable switching voltage threshold.
• All-metal design for maximum durability and resistance.
• Integrated XT60 connectors.
• Touch switch function. Optionally, the possibility of connecting a magnetic, mechanical or electronic switch or button.
• Telemetry support KAVAN/FrSky FPort, JETI Duplex EX/EX Bus, Futaba S.Bus2, Multiplex MSB, Graupner Hott, PowerBox P2Bus, (current, voltage, capacity of both battery inputs).
• Optional backup battery charging.
• Switch with memory of the last operating state.
• Two expansion ports for connecting additional Duplex EX/EX Bus sensors, possibility of other use as digital inputs/outputs.
• Configuration using the transmitter or PC software MAV Manager.
• Firmware update.

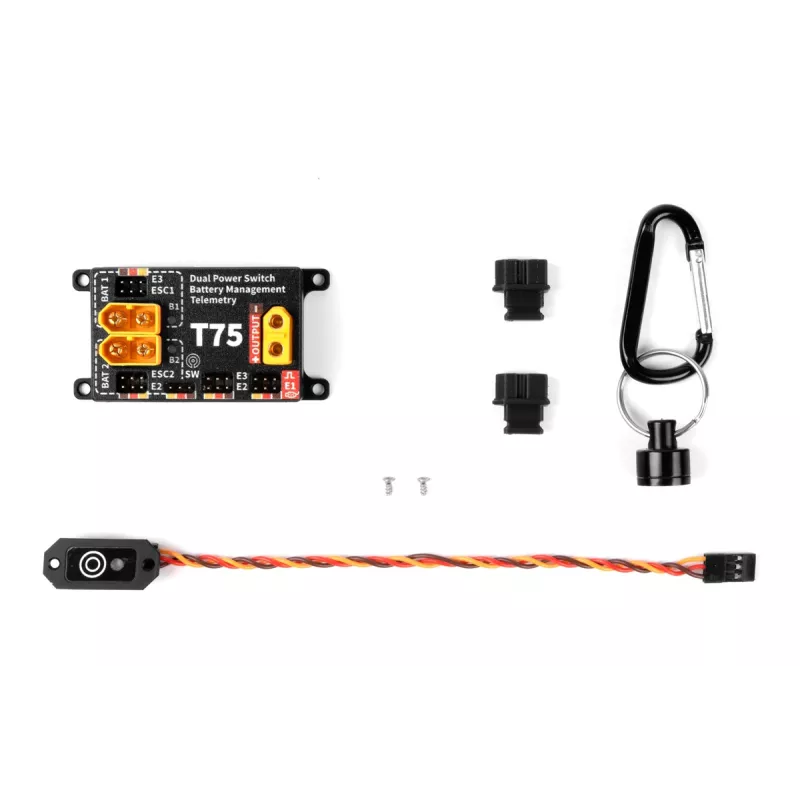

The set includes: T75, instructions.

Online manual: wiki.kavanrc.com
