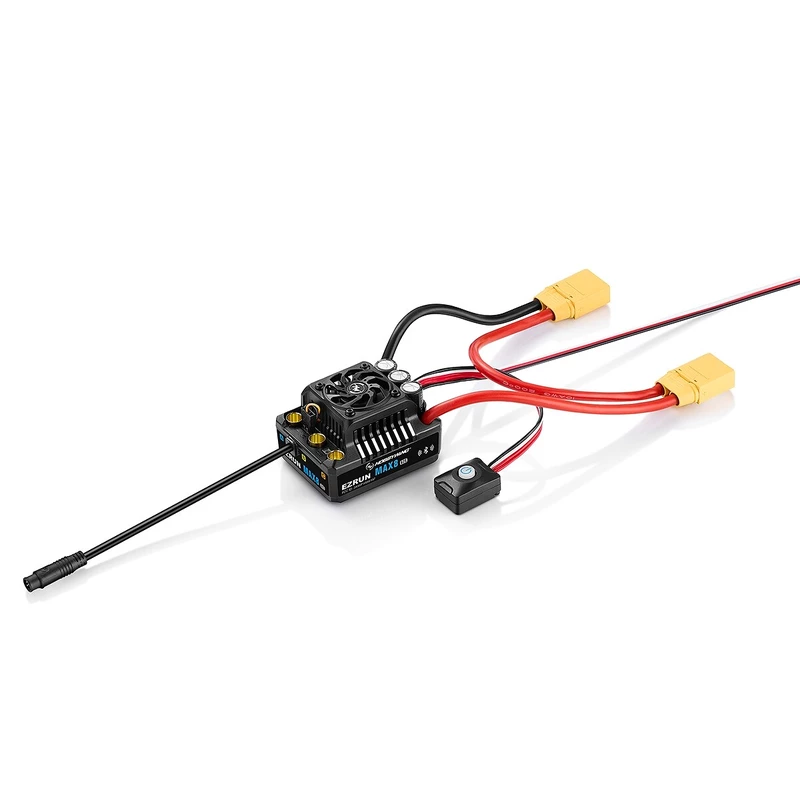

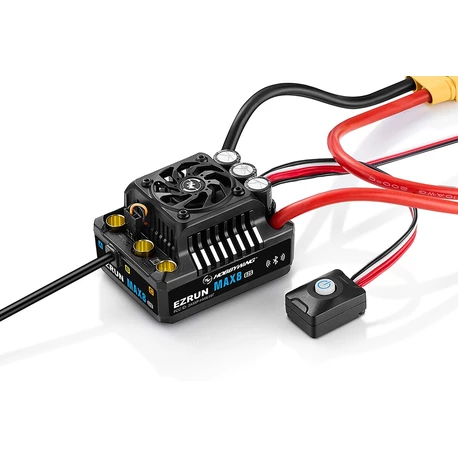

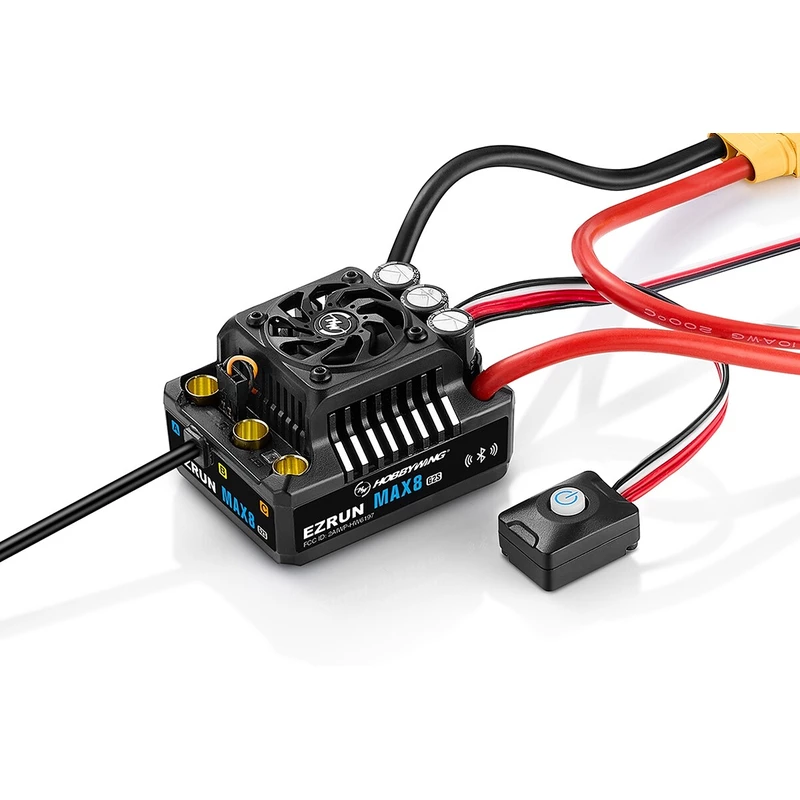

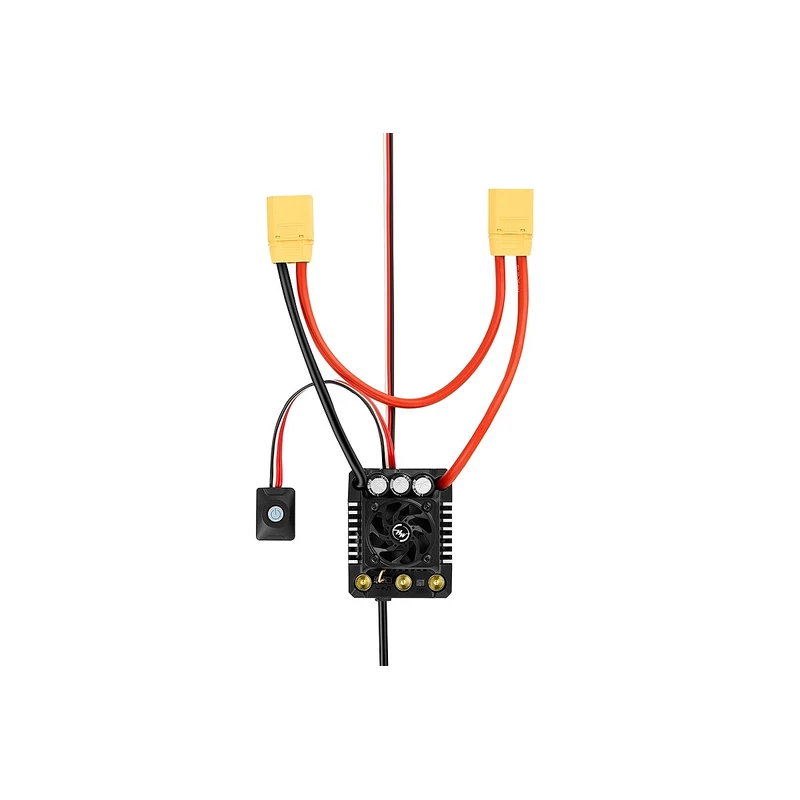

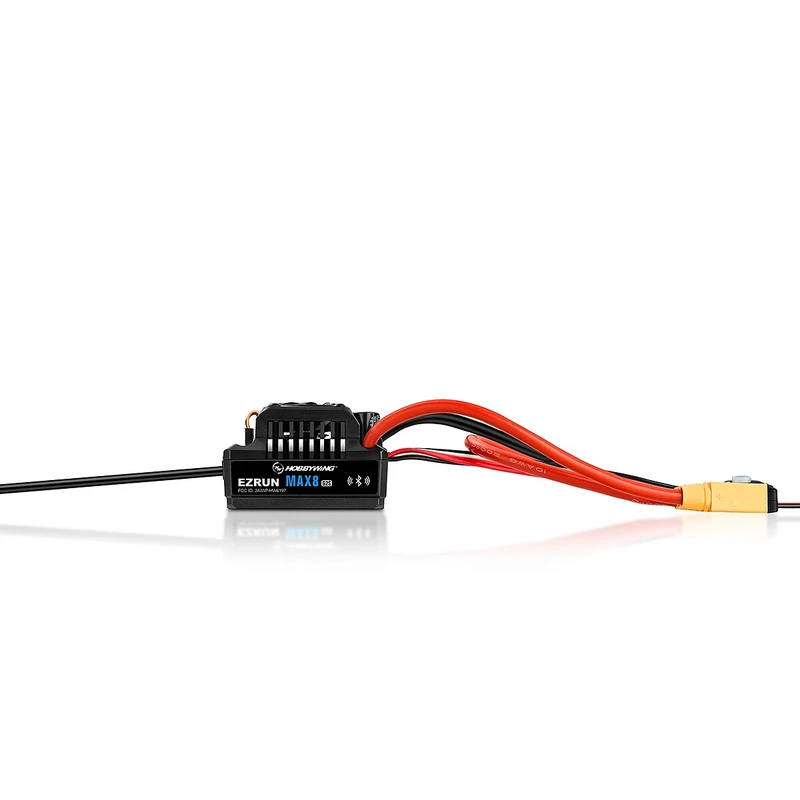

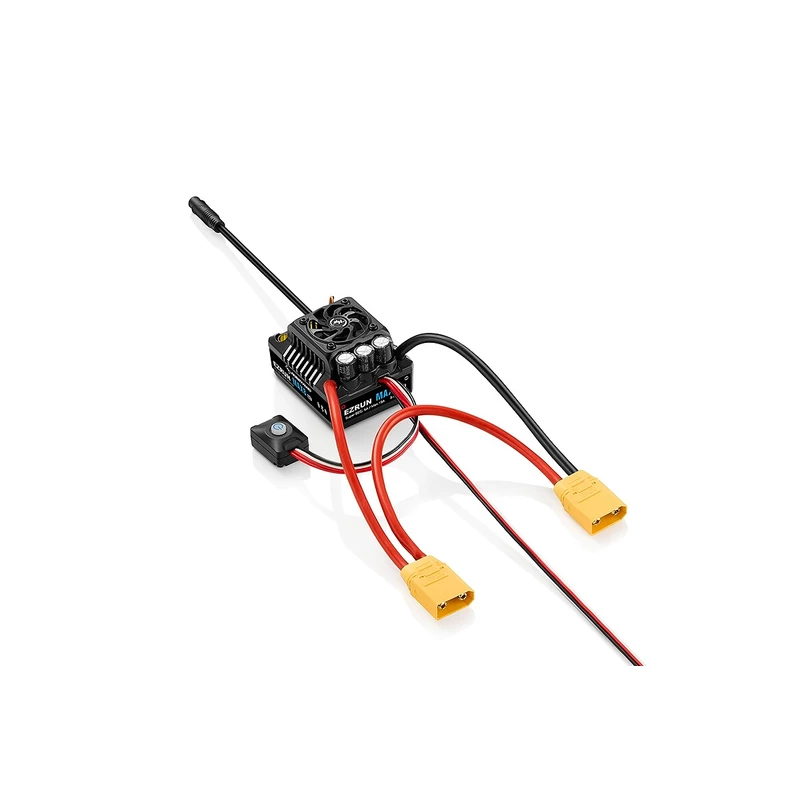

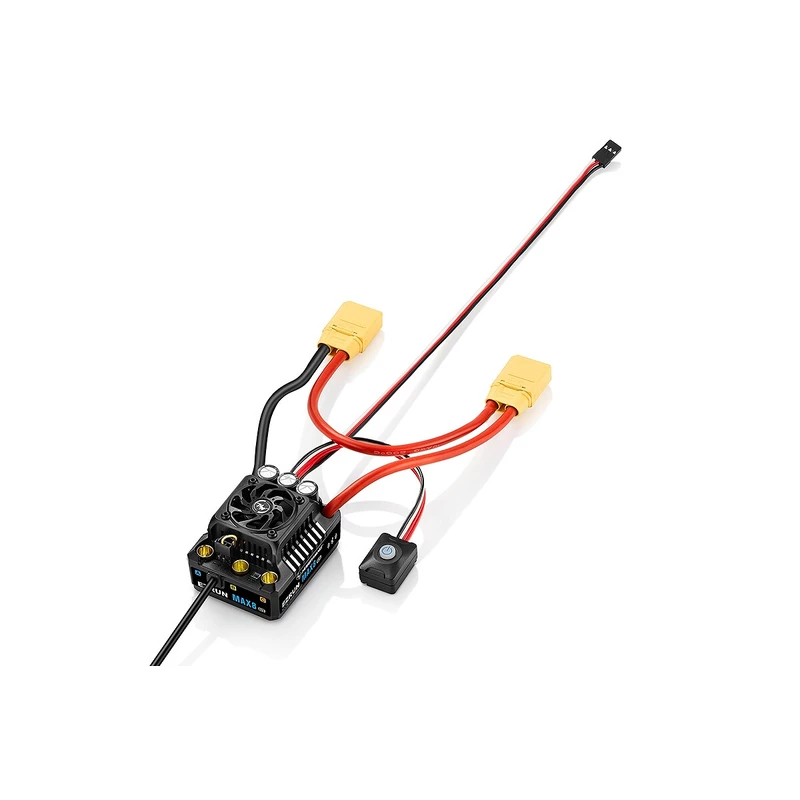

EZRUN MAX8 G2S 160A controller

The EZRUN MAX8 G2S 160A controller offers everything you need to fully utilize the potential of your road car or 1:8 off-road RC car with an AC motor - whether it's a touring, short course truck or monster truck. It allows the use of an AC motor with sensors (sensored) and without sensors ("sensorless") and offers a wide range of 12 programmable parameters (including Turbo timing) for perfect adaptation of the engine, chassis and track. So, if you're serious about riding your bloated figure eight, Hobbywing's EZRUN MAX8 G2S controller is for you!

Function

• Specially developed for 1:8 RC cars: road, off road trucks powered by 3-6S LiPo
• For 4268/4278 size motors with and without sensors (4S LiPo motor limit: KV?3000, 6S LiPo: ?2400 for 4268/4278 size motor)
• Compact dimensions, low weight, patented cooling system with high efficiency
• Waterproof and dustproof construction, waterproof sensor cable
• Ideal in combination with Hobbywing EZRUN 4268SD/4278SD G2 motors
• 12 programmable parameters including Turbo timing (up to 24°) increasing performance
• Powerful switching BEC stabilizer up to 6 A with selectable voltage of 6.0 V, 7.4 V or 8.4 V
• Advanced protection functions (voltage protection, thermal protection, fail-safe, etc.)
• Possibility of programming, updating firmware or monitoring operational data in real time via the built-in Bluetooth module - directly in the HW LINK V2 mobile application without the need for additional devices
• In combination with Hobbywing EZRUN 4268SD/4278SD G2 motors, it offers motor thermal protection.

Programmable parameters

• General: Driving Mode, Number of LiPo Cells, Voltage Protection, BEC Voltage, Motor Rotation Direction
• Throttle Control: Initial Throttle Value, Start, Max. reverse performance
• Brake control: Resistance brake intensity, Max. braking effect
• Timing: Turbo Timing, Turbo Timing Delay

The controller set includes: EZRUN MAX8 G2S controller with cables, user manual.
