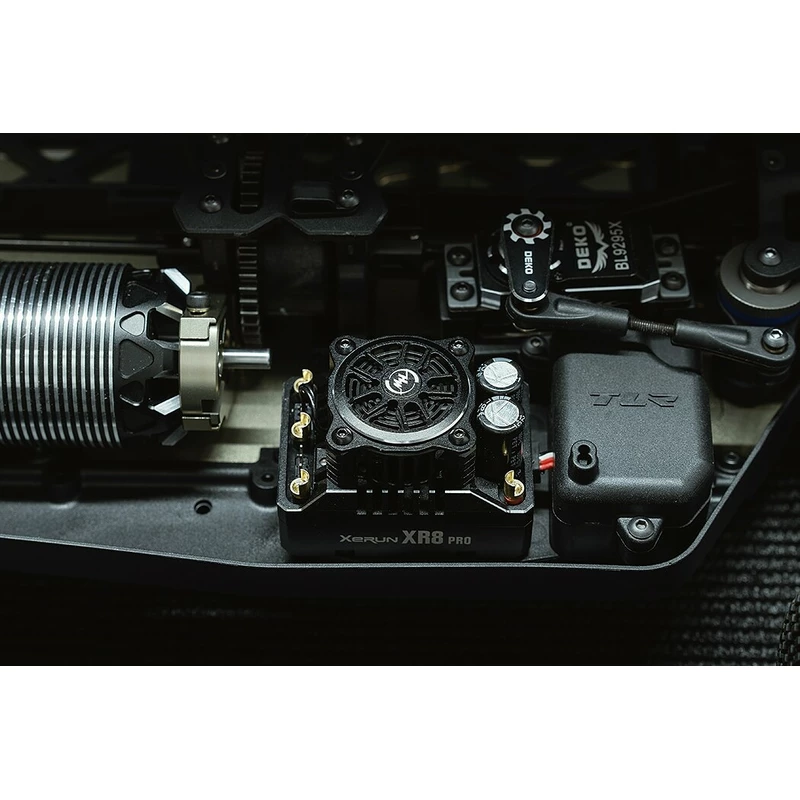

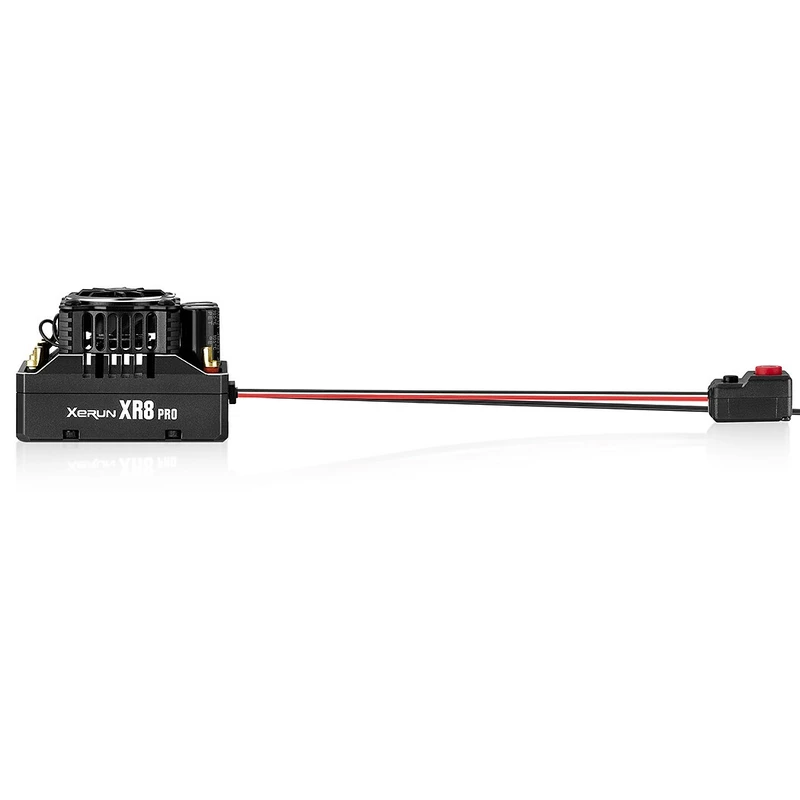

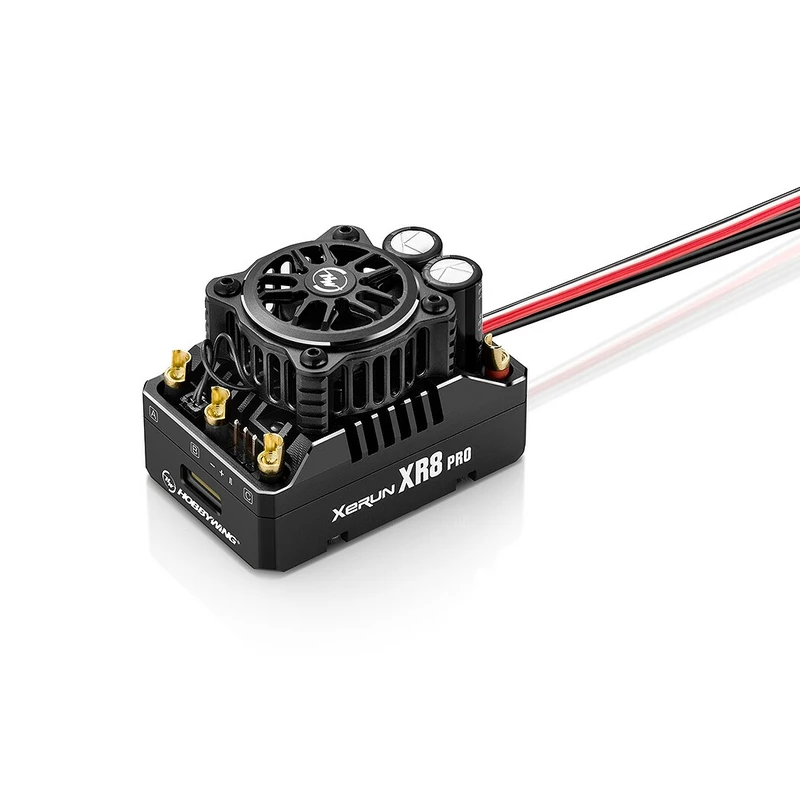

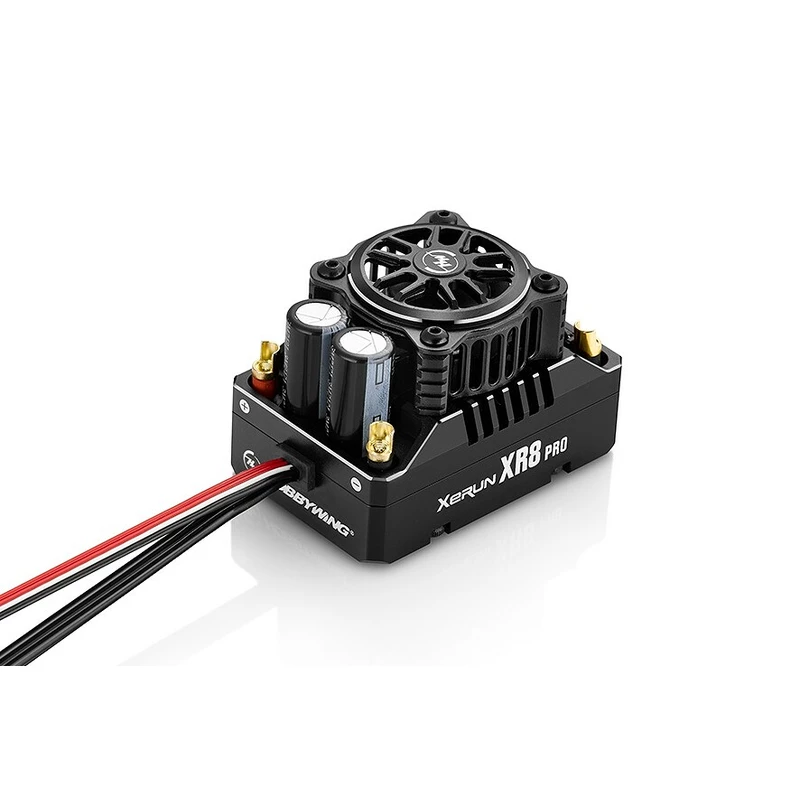

XERUN XR8 Pro G3 200A controller

The XERUN XR8 PRO G3 200A controller offers everything you need to fully utilize the potential of your top-of-the-line 1:8 AC racing RC car - whether on-road or off-road, as well as 1:10 short course or monster truck. It allows the use of an AC motor with sensors (sensored) and without sensors ("sensorless") and offers three selectable program profiles - each with a wide range of 32 programmable parameters (including Turbo timing or two modes of operation of the brakes with an adjustable effect curve) for perfect adaptation of the engine, chassis and track. So, if you're serious about riding your bloated "eighth" or "tenth" with an AC motor, the XERUN XR8 PRO G3 controller from Hobbywing is for you!

Function

• Specially developed for RC cars: 1:8 road and off-road, 1:10 strong short course and monster trucks
• For 3360 and 4268 size motors with and without sensors ( 3S LiPo power supply: 3660 motors with KV up to 4000 rpm per V; 4S power supply: 4268 motors with KV up to 3000 rpm per V)
• Compact dimensions, low weight, patented cooling system with high efficiency with intelligent fan
• Waterproof and dustproof construction, waterproof sensor cable
• Ideal in combination with Hobbywing 3660SD/4268SD G3 motors
• in each of the three profiles (1. With zero timing, 2. 1:8 Off-road, 3. 1:8 In-road) 32 programmable parameters including Turbo timing (up to 48°) increasing performance by up to 50% (with Hobbywing 4268/4274 G3 engines)
• Powerful switched BEC stabilizer up to 6 A with selectable voltage of 6.0 or 7.4 V
• Advanced protection functions (voltage protection, thermal protection, fail-safe, etc.)
• Possibility of programming with the help of the multifunctional LCD programming box V2 (independently or with a PC program) or the Bluetooth OTA module (with a mobile application)
• The possibility of monitoring the controller parameters in real time with the help of a Bluetooth OTA module with a mobile application
• Updatable firmware with the help of G2 multifunction LCD programming box or Bluetooth OTA module (sold separately)
• Compared to the previous generation, the XERUN XR8 PRO G2 offers smaller dimensions, higher efficiency, lower operating temperature at the same load, capacity filter capacitors with thermal protection, waterproof sensor cable and motor thermal protection (combined with compatible Hobbywing motors).

Programmable parameters

• General: Driving mode, Max. Reverse Power, Number of LiPo Cells, Voltage Protection, Controller Thermal Protection, Motor Thermal Protection, BEC Voltage, Smart Fan, Sensor Mode, Motor Rotation Sense, A/C Phase Swap
• Throttle Control: Throttle Response Control, Throttle Curve, Neutral Range, Throttle Start Value, Range, Drive Switching Frequency, Soften Value, Soften Range, RPM Limit
• Brake control: Resistance brake intensity, Max. braking effect, Brake control rate, Brake control, ABS power, Disc brake curve, Brake switching frequency
• Timing: Boost Timing, Turbo Timing, Turbo Delay, Turbo Add Rate, Turbo Subtract Rate

The controller set includes: controller XERUN XR8 PRO G3 200A, user manual.
