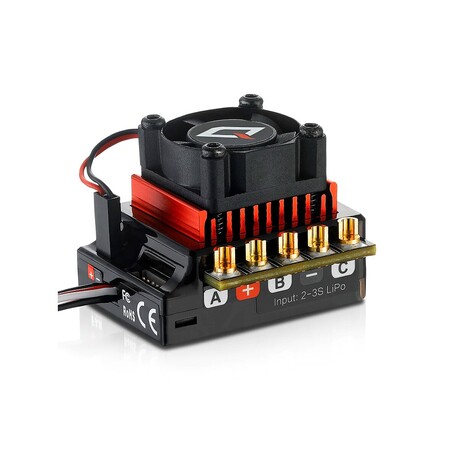

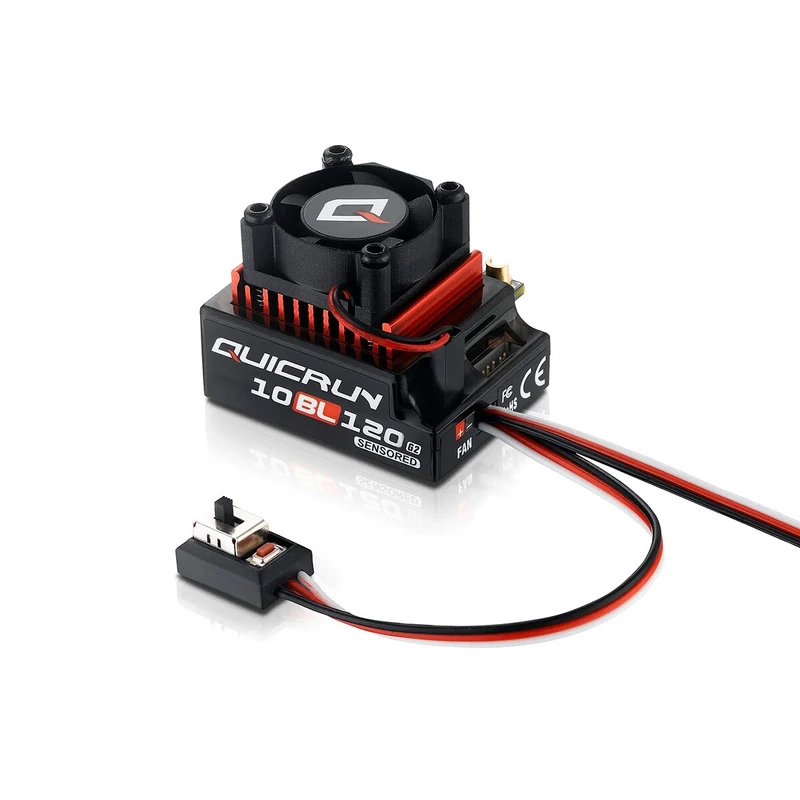

QuicRun 10BL120 G2 inverter controller (sensor)

The QUICRUN 10BL120 G2 Sensored G2 120A controller offers everything you need to fully utilize the potential of your 1:10 sensored AC motor - on-road touring, drifting or off-road buggy. It offers a wide range of 12 programmable parameters to perfectly match the engine, chassis and track. So, if you're serious about riding your bloated "tenth" with an AC motor, Hobbywing's QUICRUN 10BL120 G2 Sensored G2 Controller is for you!

Function

• Specially developed for road and off-road RC cars 1:10: 1:10 touring, buggy, drifting with sensor (but also sensorless) AC motors powered by 2-3S LiPo/5-9 NiMH batteries
• For motors: 2S LiPo power: 3650/540 size motors with more than 4.5 turns (?4.5T) / 3S LiPo power: 3650/540 size motors with more than 10.5 turns (?10.5T)
• Compact dimensions, low weight, fan with high efficiency
• Ideal in combination with Hobbywing QUICRUN 3650SD G2 sensor motors
• 12 programmable parameters including Boost and Turbo timing 0-32°
• Powerful switched BEC stabilizer up to 4 A with selectable voltage of 6.0 or 7.4 V
• Advanced protection functions (voltage protection, thermal protection, fail-safe, etc.)
• Possibility of programming with the help of LED programming box or LCD programming box G2

Programmable parameters

• General: Driving Mode, Voltage Protection, BEC Voltage, Motor Rotation Sense
• Throttle Control: Start, Max. power reverse, Throttle neutral range
• Brake control: Resistance brake intensity, Max. braking effect
• Timing: Boost Timing (0-32°), Turbo Timing (0-32°), Delay Turbo Timing,

The controller set includes: QUICRUN 10BL120 Sensored G2 controller with cables, user manual.
