LED programming box

LED programming box for regulators selected series Hobbywing for cars, airplanes and boats are used for easy and fast programming of controllers - at home "on the table" as well as the airport. The controller is connected via servocable socket is located at the top of the box. Power box is provided from BEC power stabilizer Hobbywing controller or current 4-5čl. NiCd / NiMH or 2S LiPo / LiFe battery pack attached to the receiver box (if the regulator OPTO). Programming is performed with the connected motor and a drive battery (even if OPTO controllers) .:

Hobbywing air regulators can be programmed in a model fitted with a propeller - for safety reasons, but it is recommended to remove the propeller programming - To prevent possible accidents at some omission or operator error. Likewise Perform programming controllers in cars and ships safely seated on a stand with wheels, respectively. the propeller in the air or the removed pinion or clutch ship shafts.

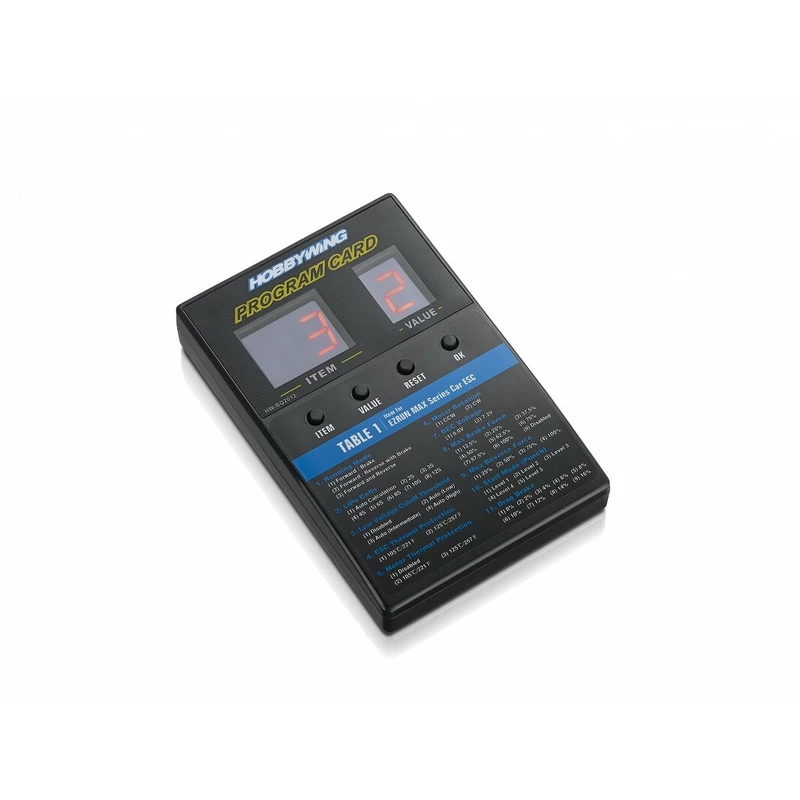

For programming, the four buttons on the front panel of the box. With their help you select the program functions ( "ITEM") for adjusting and setting the value (VALUE. "OK" to confirm the changes and sent to the controller, the "RESET" button to clear all settings and return all values \u200b\u200bto the factory setting. number of program function is displayed to the left of the two-digit LED display ( "ITEM"), the value function is shown in the single-digit LED display on the right ( "s").

The connection method controller for LED programming box depends on the type of regulator - differs according to whether it is a controller with BEC power stabilizer and regulator OPTO whether the regulator special programming cable or socket etc. When connecting proceed exactly according to the instructions supplied with the box and your controller.

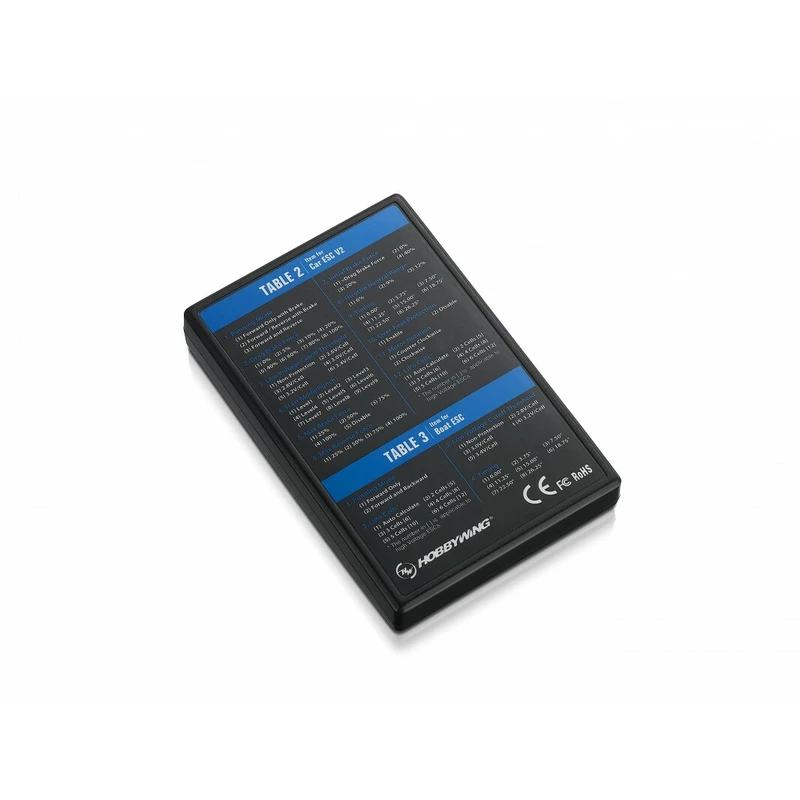

The list of functions and adjustable values \u200b\u200bindicated on the label on the card ( "Table 1" - regulators for cars, Table 2 - regulators for aircraft, Table 3 - regulators for ships); A detailed description of the functions indicated in the instructions supplied with regulators Hobbywing.

Compatible regulators Hobbywing

• Platinum V1 / V2, V5 FLYFUN for model airplanes and helicopters
• XERUN (majority), and EZRUN QUICKRUN for car models
• Seaking for ship models (not seaking Pro).
