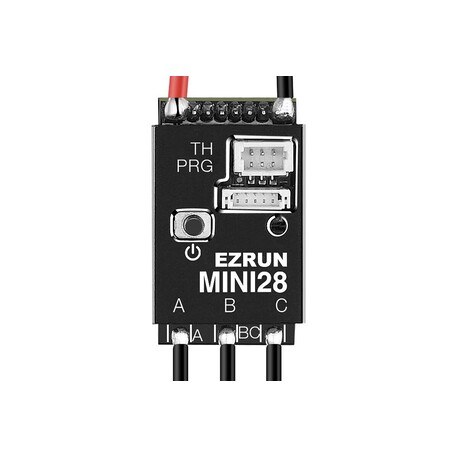

EZRUN MINI 28 controller

The EZRUN MINI28 controller offers everything you need to fully utilize the potential of your 1:28-1:27 AC motor RC car. It allows the use of an AC motor with sensors (sensored) and without sensors ("sensorless") and offers a wide range of 26 programmable parameters, which were previously only common with the professional XERUN series, for perfect adaptation of the engine, chassis and track. So, if you're serious about riding your bloated "Minizet" with an AC motor, Hobbywing's EZRUN MINI 28 Controller is for you!

Function

• Specially developed for 1:28 Mini-Z racing
• For size 1626 motors with and without sensors
• Miniature dimensions, light weight
• 26 programmable parameters tailored to the Mini-Z
• Powerful BEC stabilizer up to 3.5A with selectable voltage of 6.0 or 7.4 V
• Advanced protection functions (voltage protection, thermal protection, fail-safe, etc.)
• Possibility of programming with the help of the multifunctional LCD programming box V2 (independently or with a PC program) or the Bluetooth OTA module (with a mobile application)
• Updatable firmware with the help of multi-function LCD programming box V2 or Bluetooth module OTA (sold separately)

Programmable parameters

• General: Driving mode, Max. forward power, Max. reverse power, Voltage protection, Thermal protection, BEC voltage, Motor rotation sense
• Throttle Control: Throttle Response Control, Neutral Range, Throttle Start Value, Range, Drive Switching Frequency, Soften Value, Soften Range
• Brake control: Resistance brake intensity, Max. braking effect, degree of brake control, brake switching frequency
• Timing: Boost Timing, Boost Timing Activation, Boost Start RPM, Boost Final RPM, Turbo Timing, Turbo Delay, Turbo Add Rate, Turbo Remove Rate

The regulator kit includes: EZRUN Mini 28 controller with cables, user manual.
