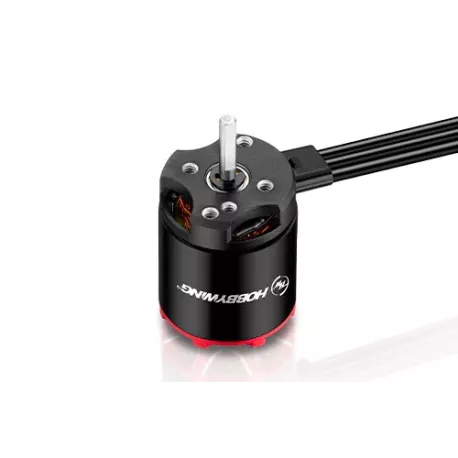

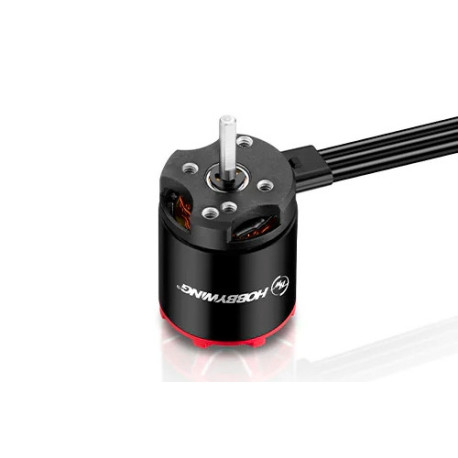

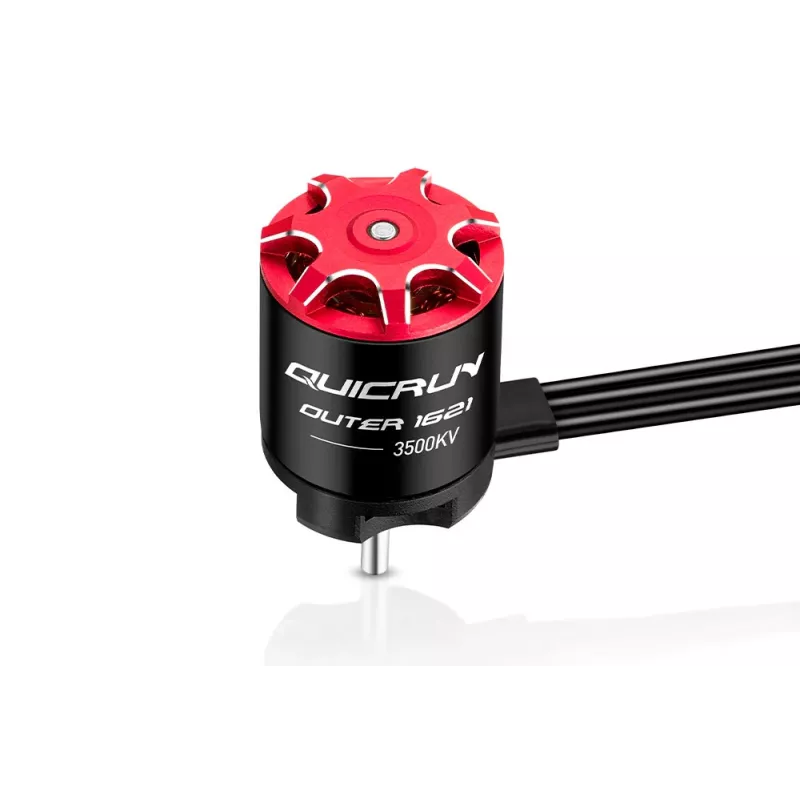

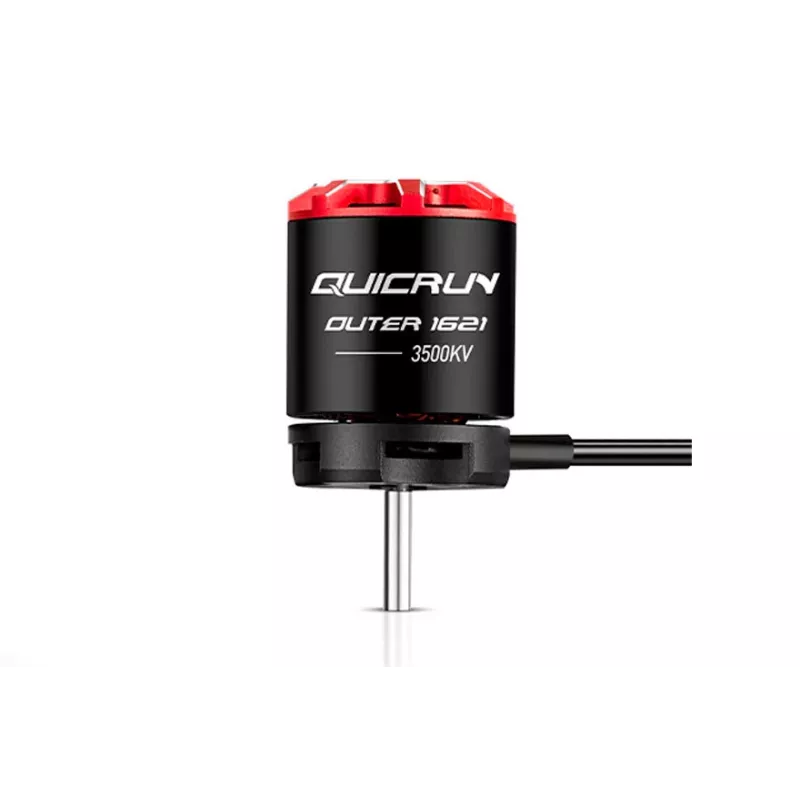

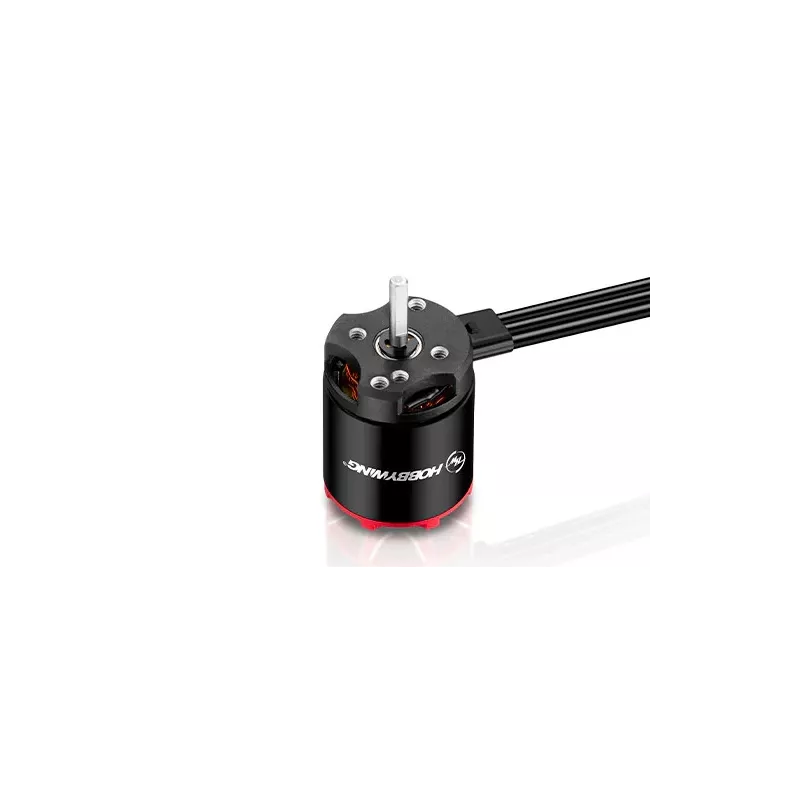

QUICRUN Outer 1621SL 3500KV

HW30404850
HOBBYWING
Výkoný střídavý bezsenzorový dvanáctipólový motor s rotačním pláštěm řady QuicRun, výborná náhrada stejnosměrného motoru s mnohem vyšším výkonem a účinností v RC crawlerech 1/24. Napájení 2-3S LiPo, KV3500 ot./min na V. Ideální s regulátorem Quicrun WP Mini 2
More info
In stock - main warehouse: 7 pcs
Dates of delivery
Original price
38.58 € -1.93 €
Your price with VAT
(DPH CZ 21%)
36.65 €
Price without VAT
30.29 €

  • Did you find a better price?

    • Did you find a better price?

    * Required fields

    We will reply as soon as possible, usually within a few hours.

    By submitting the form you agree to the processing of your personal data (read)





    Express delivery



    Large selection of carriers



    Satisfaction guarantee



    The QUICRUN Outer 1621SL high-performance twelve-pole sensorless AC electric motor is ideal for tuning RC cars such as 1:24 scale crawlers. Compared to the DC motors common in these models, they offer much higher performance and efficiency. If you want to treat your model to a more powerful motor with a longer lifespan and greater adjustment possibilities in cooperation with the QUICRUN WP Mini 24 regulator, the QUICRUN Outer 1621SL electric motor is the right one for you!

    • Dynamically balanced to minimize vibration and reduce associated performance losses.
    • Highly stable course of power and torque throughout the entire range of operating speeds
    • Smooth start-up without stuttering, excellent linear response at low revs.
    • Three pairs of M2 threaded mounting holes with 9, 10 and 12.5mm pitches for perfect compatibility with popular chassis.
    • CNC machined aluminum alloy shell, copper wire winding with high temperature resistance insulation, precision ball bearings for long life and smooth operation.

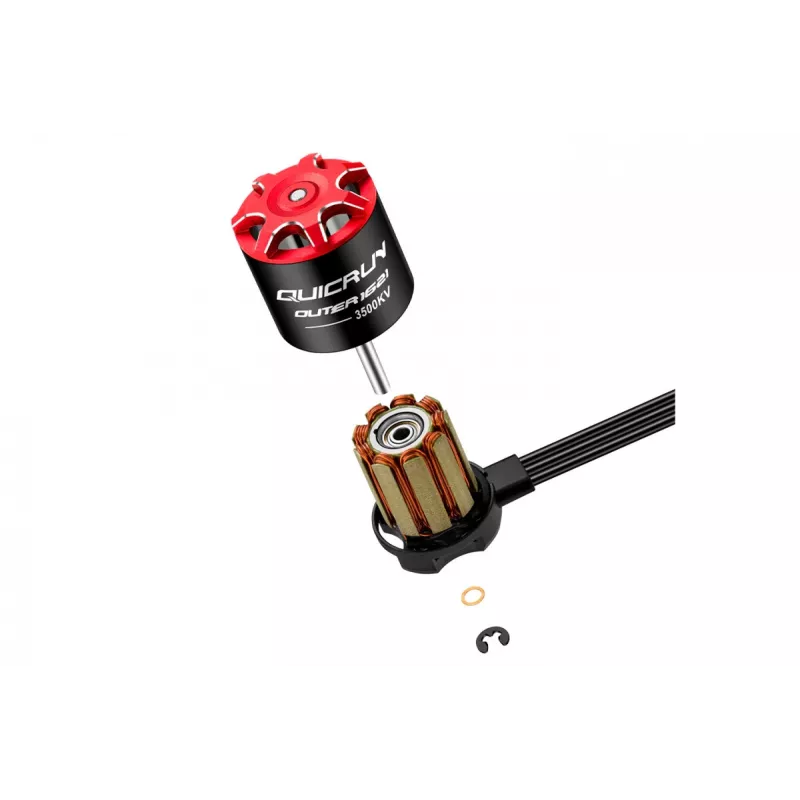

    • Modular design for easy maintenance and repair/parts replacement.

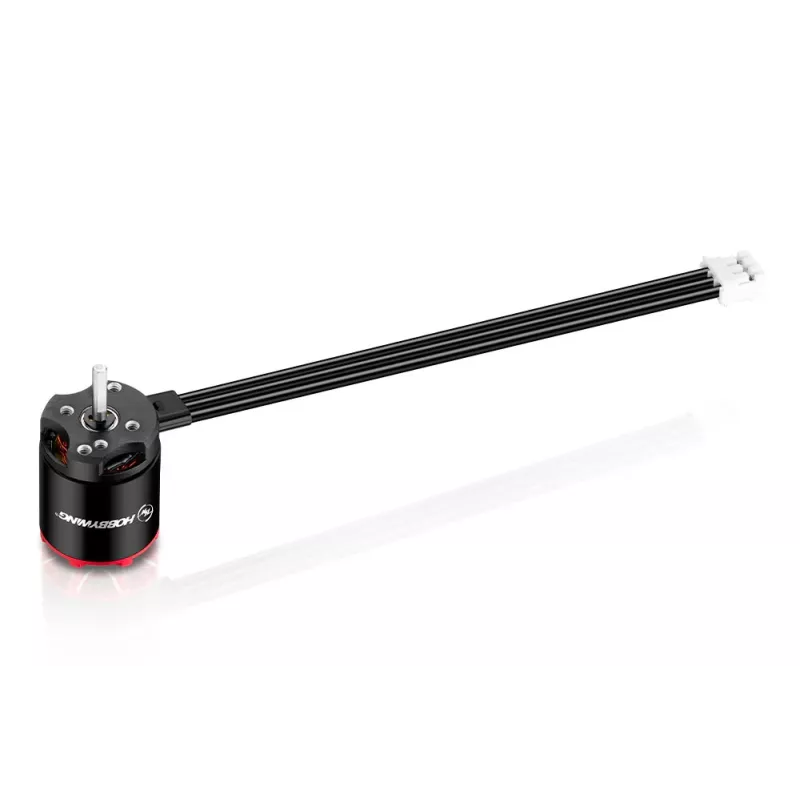

    • Standard three-pin PH 2.0 connector for easy connection to the QUICRUN WP Mini 24 controller.
    Kit includes: QUICRUN Outer 1621SL motor, instructions.
    Engine type Alternate
    Revolutions per volt [rpm/V] 3500
    Li-Po [Art.] 2 - 3
    Open circuit current [mA] 600
    Number of poles 12
    Diameter [mm] 15.8
    Engine housing length [mm] 21
    Shaft diameter [mm] 2
    Length of free shaft [mm] 9
    Weight [g] 16.7
    Number of poles 12
    Timing [°] 0
    Hall probe No
    Počet pólů
    12
    Typ motoru
    Střídavý
    Hmotnost [g]
    16.7
    Li-Po [čl.]
    2 - 3
    Průměr [mm]
    15.8
    Otáčky na volt [ot./min/V]
    3500
    Průměr hřídele [mm]
    2
    Časování [°]
    0
    Délka skříně motoru [mm]
    21
    Délka volné hřídele [mm]
    9
    Hallova sonda
    Ne
    Proud naprázdno [mA]
    600
    7 Items
    6938994412308
